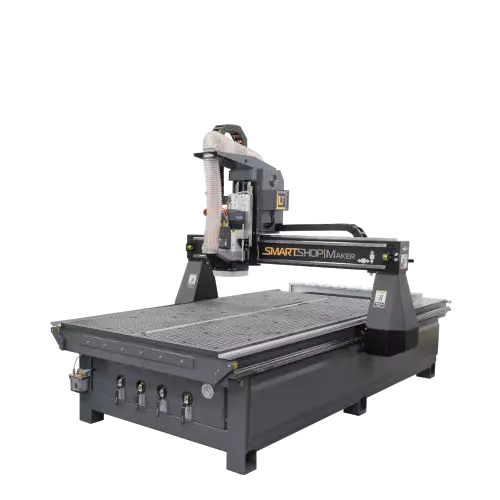

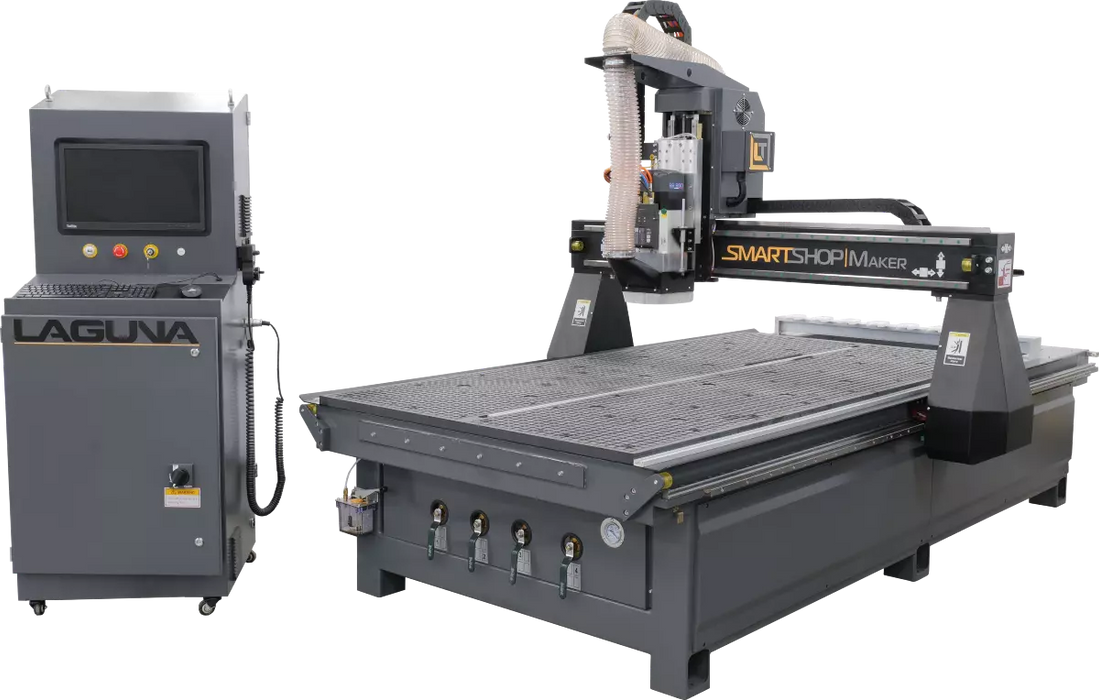

Laguna SmartShop M 4’ x 8’ & 5'X10' CNC Router | 6HP

• 6HP Spindle
• 8 Position Automatic Tool Changing System
• 12″ Z-Clearance
• 13″ Z Travel
• Up To 600 IPM Rapid Speed
• Vacuum Table (4 Zone For 4′ x 8′ & 6 Zone For 5′ x 10′)
• Nema 34 Stepper Drive Motor
• Syntec Control System

SPECIFICATIONS

• Motor: 220V, Three Phase
• Spindle Options
  • 6HP Spindle
  • Up To 600 IPM Rapid Travel
  • ISO 30 Tool Cones. 4 Cones Included
  • 25mm Heavy-Duty HiWin HG Series Linear Bearings For ALl Axis
  • Spindle Speed Control Through Programming
  • Manual Overrides Of Spindle Speed and Feed Speeds During Run
  • Centralized Lubrication System For All Axes
• Frame & Gantry
  • Helical Rack-and-Pinion Drives On X and Y Axes
  • Precision-Ground Ball Screw Drive On Z Axis
  • 12″ Z Clearance
  • 13″ Z Travel
  • Heavy-Duty Welded Tubular Steel Frame
  • Two Helical Rack-and-Pinion Drives On Gantry Y Axis
  • 8 Position Automatic Tool Changer

• ADD-ONS
• VCARVE PRO - Software $699

• Tooling Kit – SmartShop II, SUV, III M Series $1,261.00

•  Available Options

• • Volts: 220V, Single Phase (VFD drive)
  • Plotting CNC ISO20 Attachment
  • 5.4° x 1/16” x 1” x 1/4” x 3” Tapered Angle Ball Tip DLC Bit
  • 1/4” x 3/4” x 1/4” x 2” Single O Flute Bit
  • 1/8” x 1/2” x 1/4” x 2” Single O Flute Bit
  • 1-1/2” x 5/8” x 1/2” x 2” 1.5 Flycutter
  • 1/4” x 3/4” x 1/4” x 2-1/2” 2 Flutes Down Spiral Bit
  • 3/8” x 7/8” x 3/8” x 3” 2 Flutes Compression Bit
  • 1/8” x 1/2” x 1/4” x 2” 2 Flutes Down Spiral Bit
  • 1/4” x 7/8” x 1/4" x 2-1/2” 2 Flutes Compression Bit
  • 1/4" x 1” x 1/4” x 2-1/2” 2 Flutes Ball Nose
