** FREE SHIPPING **

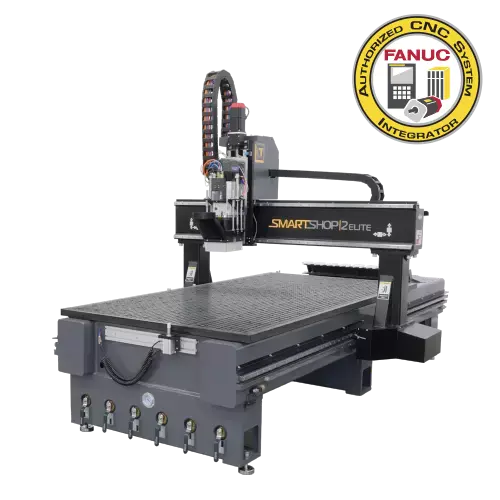

Laguna SmartShop II ELITE 4’ x 8’ & 5'X10' CNC Router | 12HP
Designed for simplicity and ease of use, the Smartshop® M focuses on cost-effectiveness, performance, and value. With a 6 HP spindle, 8-position tool changer, and a multi-zone vacuum table, you get all features of a higher-level production machine at an economical price.
FEATURES
- 6HP Spindle
- 8 Position Automatic Tool Changing System
- 12″ Z-Clearance
- 13″ Z Travel
- Up To 600 IPM Rapid Speed
- Vacuum Table (4 Zone For 4′ x 8′ & 6 Zone For 5′ x 10′)
- Nema 34 Stepper Drive Motor
- Syntec Control System
SPECIFICATIONS
- 12HP HSD Spindle 5,000-24,000 RPM
- Available In 4x8, 5x10 & 5x12 Table Sizes

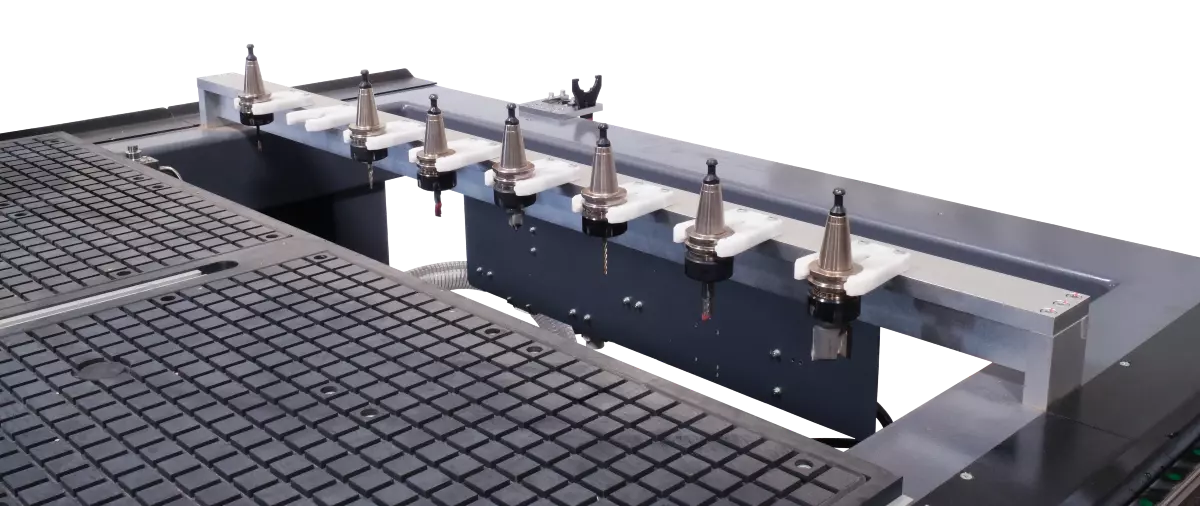

- 8 Position ISO 30 Automatic Tool Changing System
- 750W FANUC® Servo Drive Motors

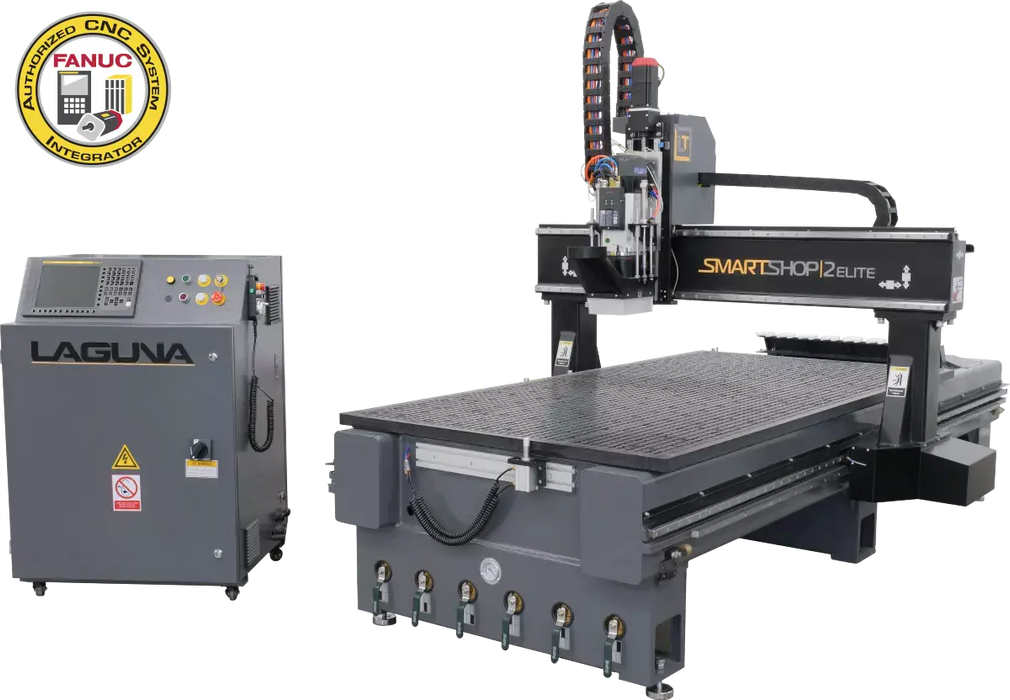

- FANUC® Oi-MF PLUS Control System
- Up To 2,500 IPM Rapid Speed
- 12″ Z-Clearance
- 14″ Z Travel

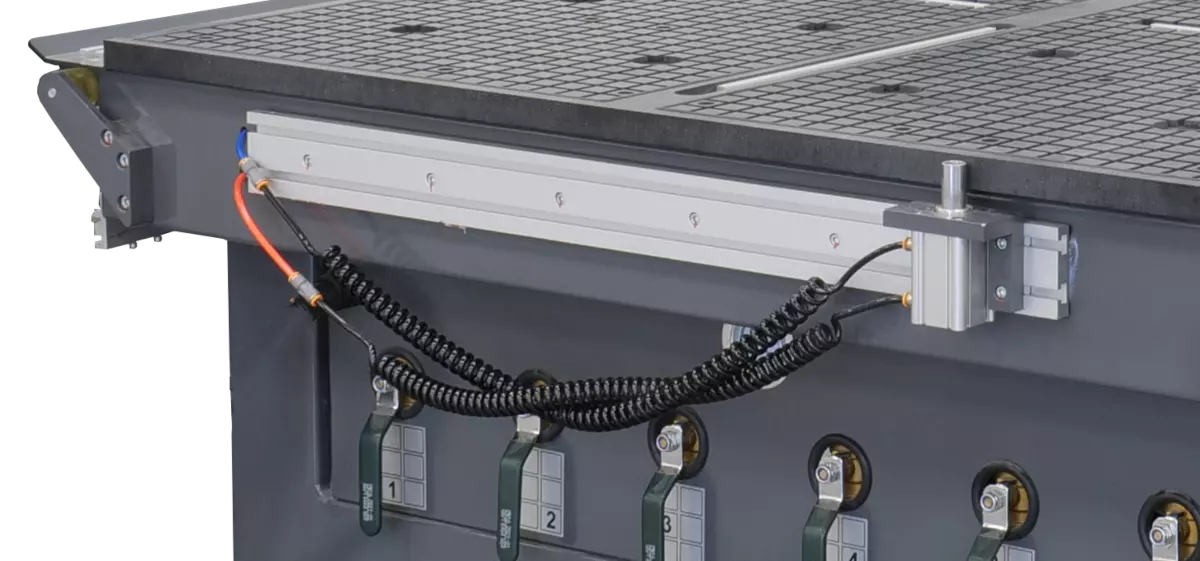

- 6 Zone Vacuum Table
- Helical Rack & Pinion X,Y Axis, Ball Screw Z Axis
- Heavy-Duty One-Piece All-Steel Frame
- Motor: 220V, Three Phase also available 480v,3ph,30 amps.
-
Spindle Options
- 6HP Spindle
- Up To 600 IPM Rapid Travel
- ISO 30 Tool Cones. 4 Cones Included
- 25mm Heavy-Duty HiWin HG Series Linear Bearings For ALl Axis
- Spindle Speed Control Through Programming
- Manual Overrides Of Spindle Speed and Feed Speeds During Run
- Centralized Lubrication System For All Axes
-

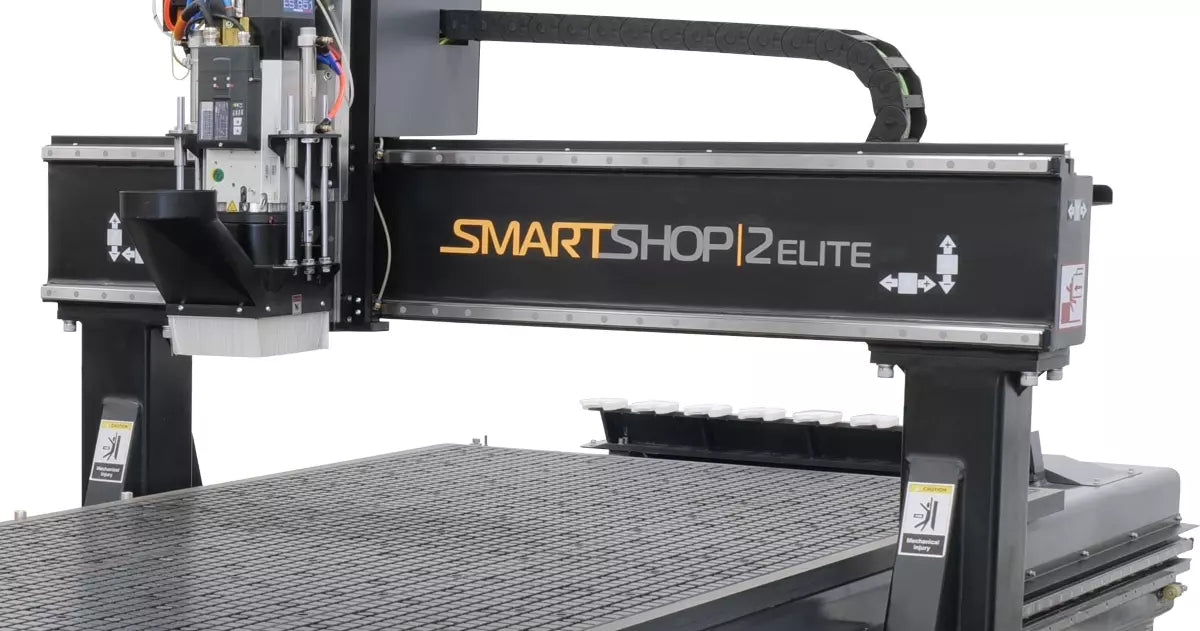

Frame & Gantry

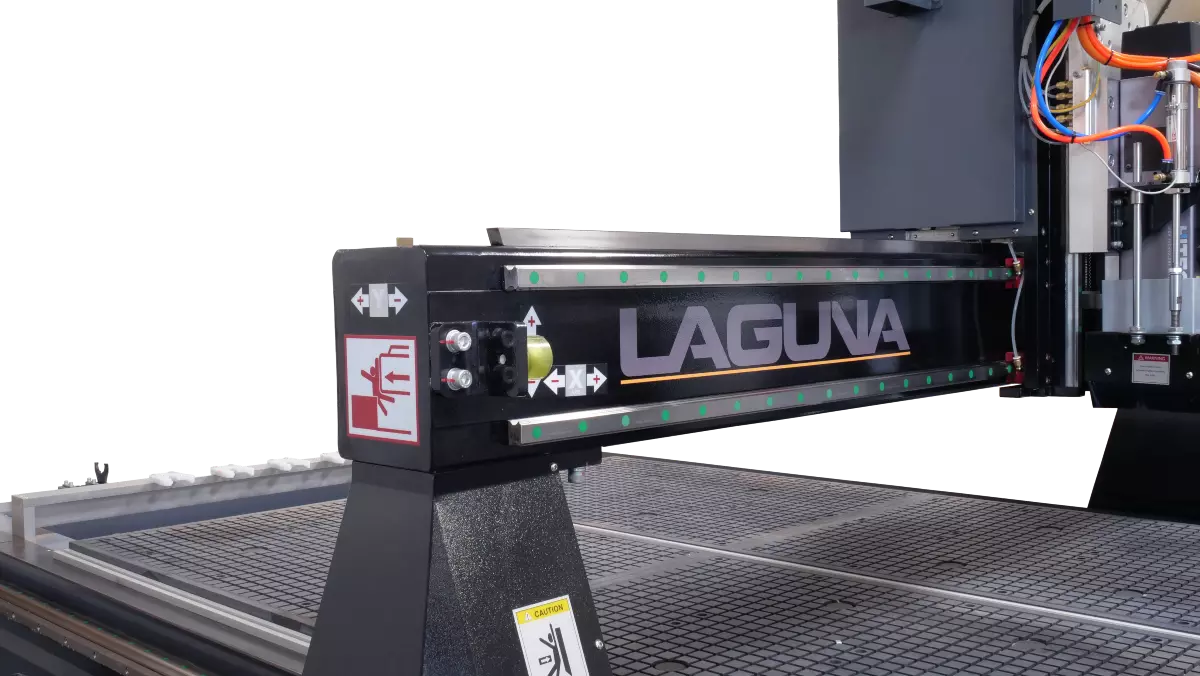

- Helical Rack-and-Pinion Drives On X and Y Axes
- Precision-Ground Ball Screw Drive On Z Axis
- 12″ Z Clearance
- 13″ Z Travel
- Heavy-Duty Welded Tubular Steel Frame
- Two Helical Rack-and-Pinion Drives On Gantry Y Axis

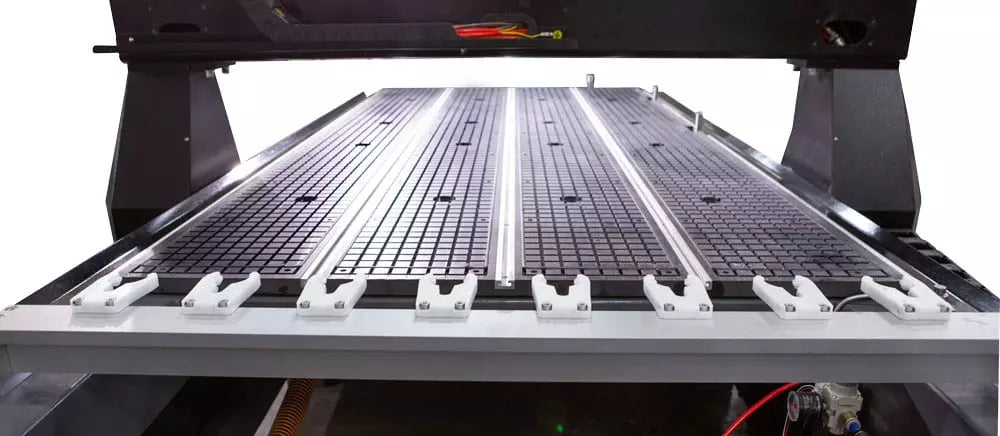

- 8 Position Automatic Tool Changer
- ADD-ONS
- VCARVE PRO - Software $699
-
Tooling Kit – SmartShop II, SUV, III M Series $1,261.00
-
Available Options
-
- Volts: 220V, Single Phase (VFD drive) - Call for info
- Plotting CNC ISO20 Attachment
- 5.4° x 1/16” x 1” x 1/4” x 3” Tapered Angle Ball Tip DLC Bit
- 1/4” x 3/4” x 1/4” x 2” Single O Flute Bit
- 1/8” x 1/2” x 1/4” x 2” Single O Flute Bit
- 1-1/2” x 5/8” x 1/2” x 2” 1.5 Flycutter
- 1/4” x 3/4” x 1/4” x 2-1/2” 2 Flutes Down Spiral Bit
- 3/8” x 7/8” x 3/8” x 3” 2 Flutes Compression Bit
- 1/8” x 1/2” x 1/4” x 2” 2 Flutes Down Spiral Bit
- 1/4” x 7/8” x 1/4" x 2-1/2” 2 Flutes Compression Bit
- 1/4" x 1” x 1/4” x 2-1/2” 2 Flutes Ball Nose
