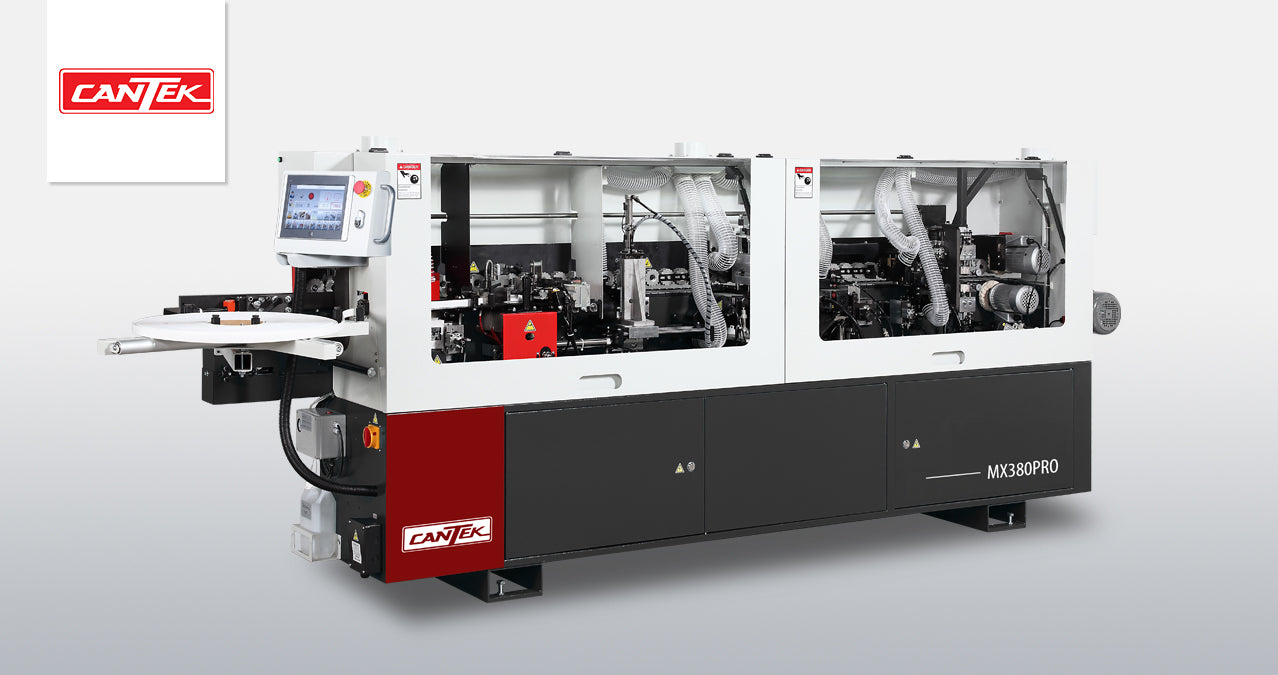

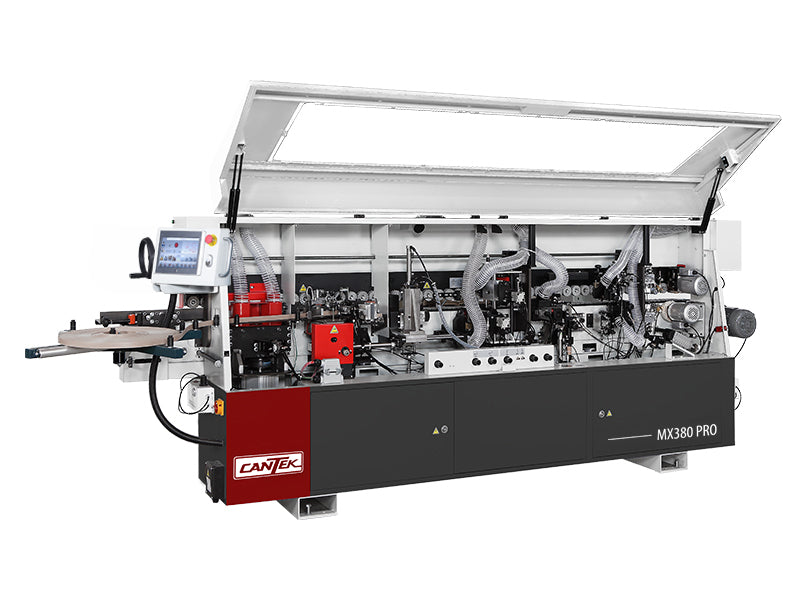

CANTEK MX380PRO Automatic Edgebander W/ Premilling & Corner Rounding | 230V 3 Phase

KEY ADVANTAGES

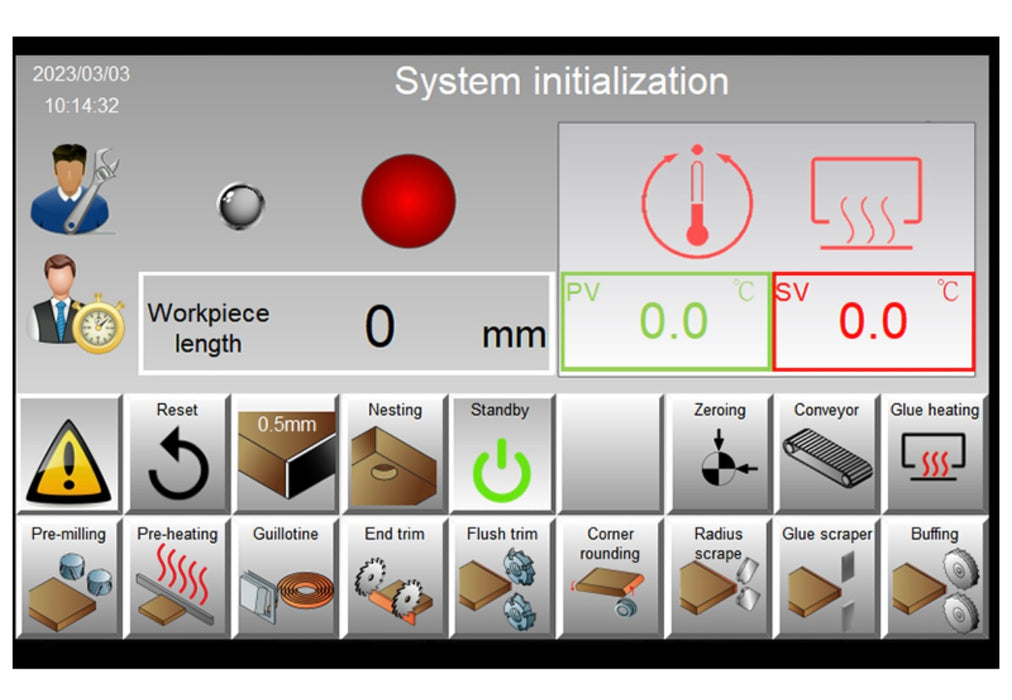

• TOUCH SCREEN INTERFACE
  • State of the art touch screen interface allows the operator to control various machine functions.
  • Change from flush trim, to chamfer, to radius trim right from the control panel.
  • On screen error diagnostics.
  • Temperature setting with automatic temperature lowering
• WHAT IS THE MX380 PRO?

  • Three position pneumatic RAPID changeover from 0.5mm, to 1mm, to 2mm edge right from the control panel! Changing between edges has never been easier.
  • Once set up for wood edge, thin tape, and radius edge you simply need to select the appropriate icon on the control panel for immediate recall. No more manual setting for those edges!
  • Multi-radius scrapers allow operator to apply a 1mm or 2mm radius on the top & bottom of the panel.

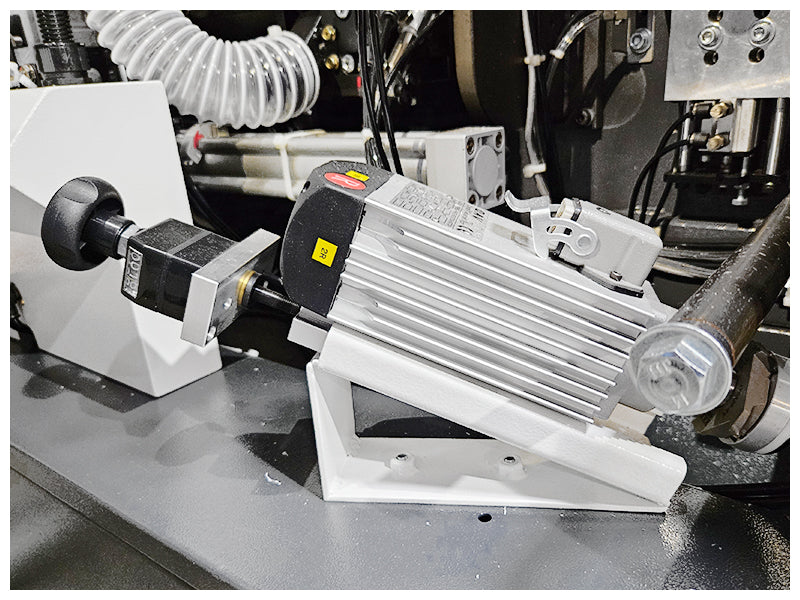

  • Additional quick change corner rounding motor for fast changeover from 1mm to 2mm radius on the ends.
• ADDTIONAL KEY MACHINE FEATURES
  • Automatic edge feeding with a thickness capacity of 0.4–2 mm; strip material can be hand-fed.

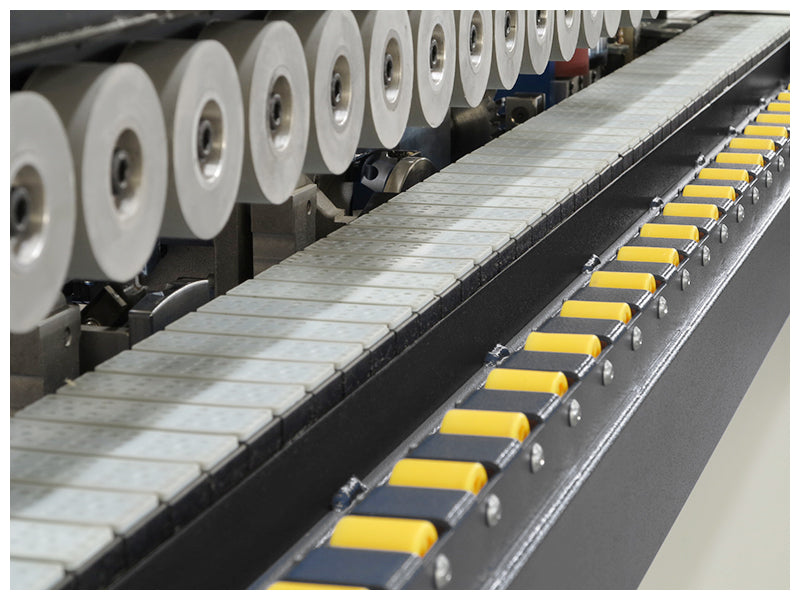

  • Conveyor chain feed system for reliable results.

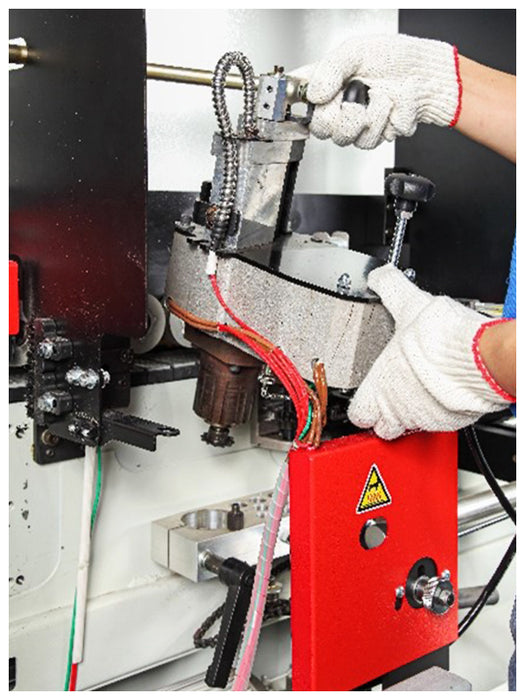

  • Teflon-coated quick change hot-melt glue pot.
  • Heated infeed fence for pre-heating the panel for optimum glue penetration.
  • 29 FPM feed rate (9 m/min)
  • Workpiece is fed by chain.
  • Edge coil support plate: Ø 800mm (31 ½”) for PVC/ABS.
  • Spring-loaded pressure unit with (2) pressure rollers.
  • Heavy-duty pressure beam with extendable workpiece support.

WORKING UNITS

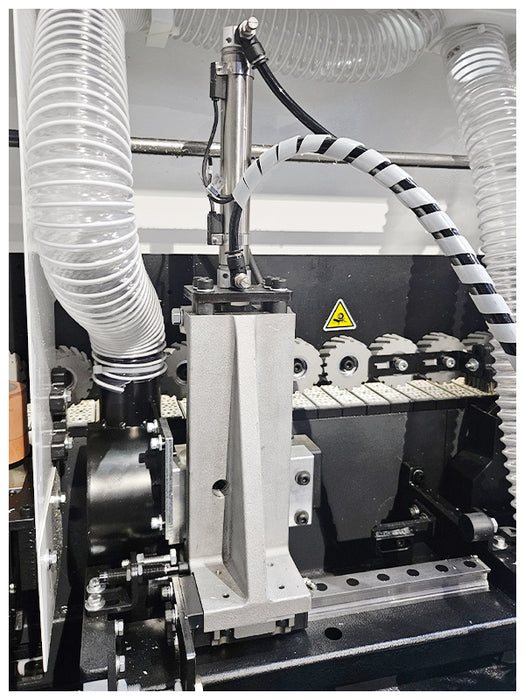

• END TRIMMING UNIT

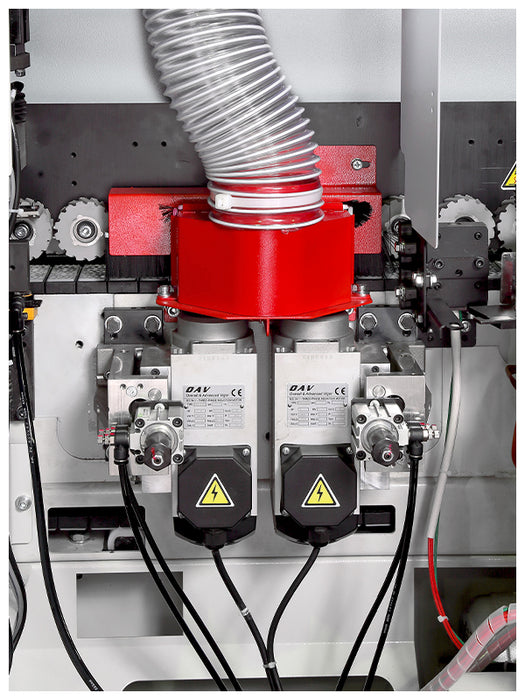

  • (2) counter-rotating diamond cutterheads for removing up to 2mm of the panel edge to produce an optimum edge for applying the edge tape. This is designed to clean up edges that are poorly machined.

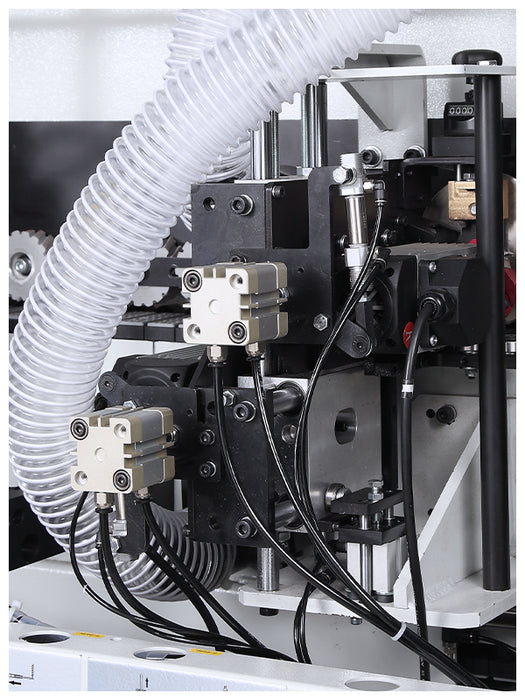

• RAPID SETTING TOP & BOTTOM TRIMMING UNITS

  • Equipped with (2) high-frequency motors for top & bottom trimming of the panel.  The RAPID adjustment system uses a pneumatic 3-position adjustment to quickly change from 0.5mm, to 1mm, to 2mm edgebanding.

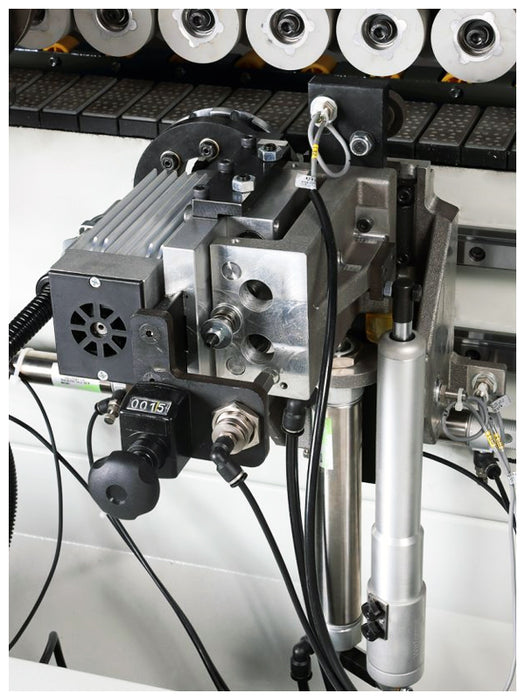

• CORNER ROUNDING UNIT

  • Completes the finishing of the ends of the workpiece when applying edges that require a radius end. Two high-frequency motors are provided for R1: 1mm and R2: 2mm radius edge. A quick-change feature allows the operator to rapidly change between each motor according to the edge being processed.

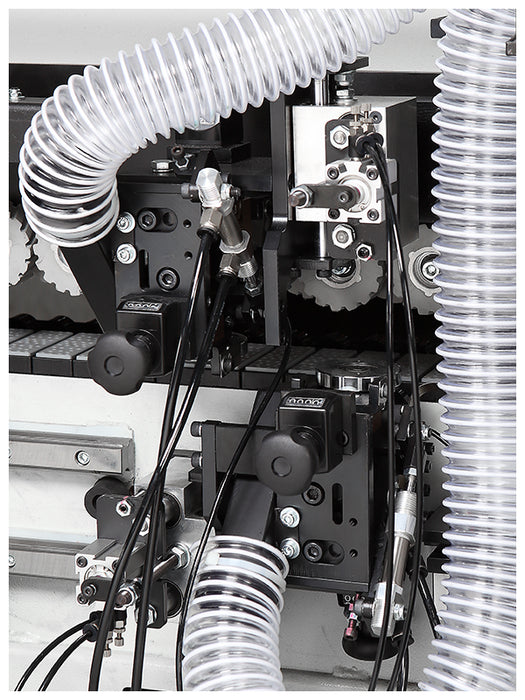

• MULTI-RADIUS PROFILE SCRAPING UNIT

  • The radius scraping unit fine-tunes the edge radius while removing knife marks during the milling process on radius edging. The dual radius system allows the operator to apply a 1mm or 2mm radius and is selected automatically from the control panel without need for manual adjustment.

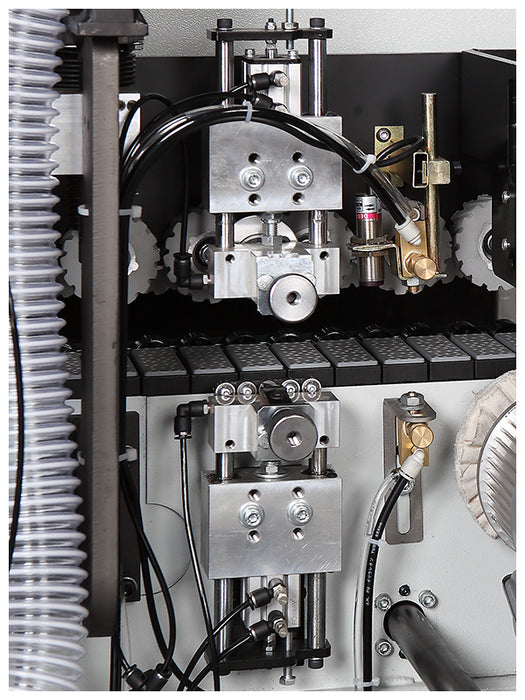

• FLAT/GLUE SCRAPING

  • Flat insert knives designed to remove any excess glue which remains on the surface of the panel after applying the edge due to squeeze out.

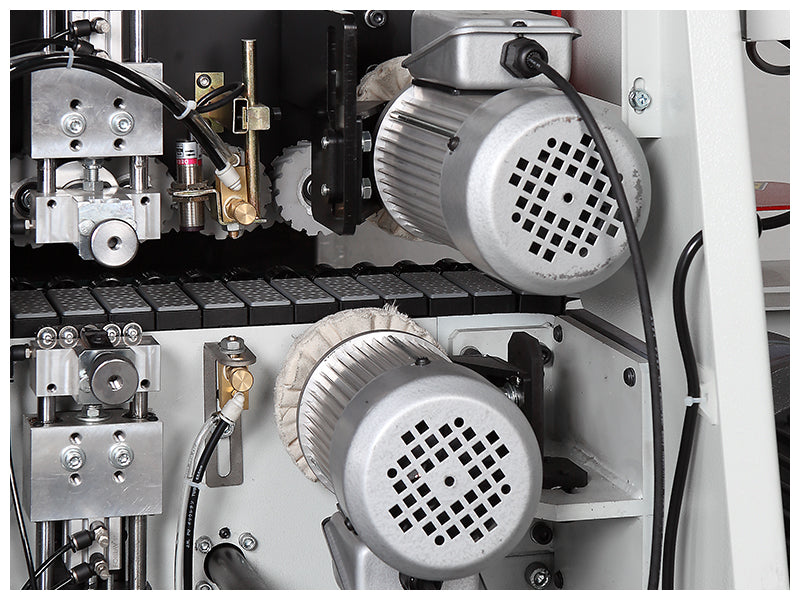

• BUFFING UNIT
  • The buffing unit leaves a super finish on ABS and PVC edging and removes any discoloration on the edges, which is especially noticeable when working with dark edge material.
• RELEASE AGENT SPRAY UNIT
  • Applying release agent to the top and bottom surface of the panel prior to applying the glue and edge allows for simple removal of any excess glue. The unit is located before the pre-milling station so any overspray which gets on the edge will be milled off to ensure proper bonding.

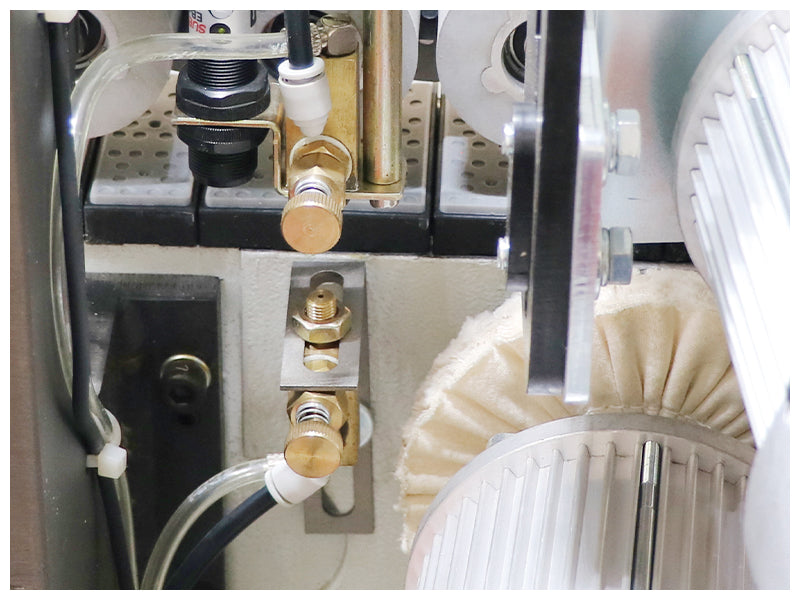

• CLEANING AGENT SPRAY UNIT

  • The cleaning agent system sprays the top and bottom of the machined edge on the processed workpieces. It is installed before the buffing unit and is designed to polish the edge and loosen any excess glue residue on the surface of the panel.

Specifications

• Feeding Speed: 29 FPM (9 m/min.)
• Panel Thickness: 0.315" -1.77” (8-45 mm)
• Edge Thickness: 0.0158”-0.118” (0.4-3 mm)
• Minimum Panel
  • Width: 3.54” (90mm)
  • Length: 6.7” (170mm)
• Working Table Height: 38” (960mm)
• Extensible Support Width: 22” (560mm)
• Dust Collection Outlet: 0.5” x 3 (0127mm x 3)
• Air Consumption: 12.36CFM (350liters/min)
• Electrical Consumption: 11.4HP (7 kw)
• Electrical Requirement: 230/3/60 (26 Full load amps
• Machine Weight: 2024 lbs. (910 kgs)
• Shipping Weight: 2618 lbs. (1190 kgs)
• Shipping Dimensions (L x W x H): 156” x 29” x 69” (3960 x 730 x 1748mm)
• MOTOR SPECIFICATIONS
  • Feeding Motor: 1 HP (1.5 kW)
  • Pre-Milling Motor: 1.5 kW (1200RPM)
  • Glue spindle Motor: 1/3 HP (0.25 kW)
  • Front/rear trimming Motor: 0.22 kw (12000 RPM)
  • Upper trimming Motor: 0.37 kw (12000 RPM)
  • Lower trimming Motor: 0.37 kw (12000 RPM)
  • Corner rounding Motor: 0.37 kw (12000 RPM)
  • Upper buffing Motors: 0.18 kw (3000 RPM)
  • Lower buffing Motors: 0.18 kw (3000 RPM)
  • Pre-heating: 0.4 kw
  • Glue pot heating; 1.315 kw

Options

• POT3 – Additional Quick-Change Gluepot $1,959.00 (Call and add to your order)
