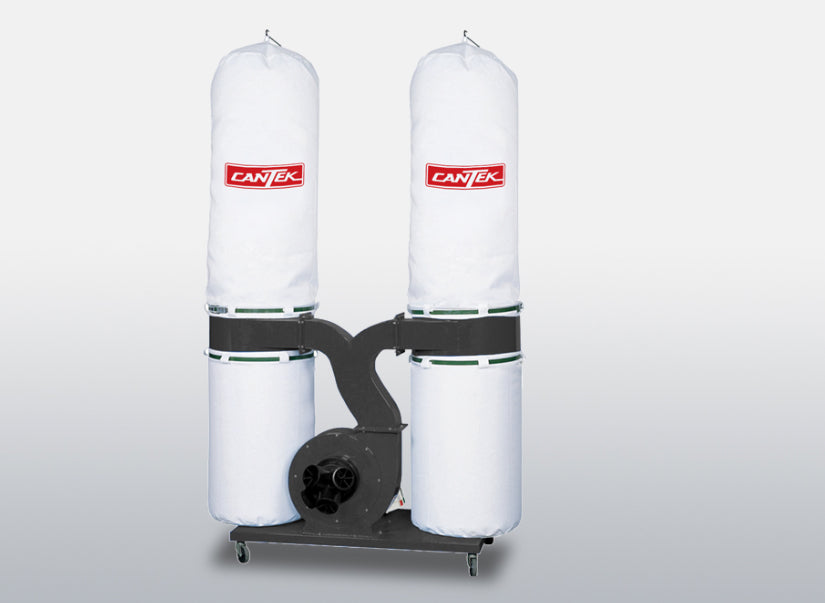

Why Cantek PDC205 5HP Dust Collector?
CANTEK PDC205 5HP KEY FEATURES
- 5 HP generating 3200 CFM.
- The base is mounted on casters to be moved around the shop to where it is needed.
- Durable cotton filter bags. (Bottom plastic disposal bags are optional)
- Magnetic starter included.
- 8″ main inlet with removable outlet with (3) 4″ ports
- 5 micron upper filter bags and 30 micron collection bags
- OTHER MODELS AVAILABLE: Choose from CANTEK PDC102 (2 HP), PDC203 (3 HP), PDC205 (5 HP), or PDC207 (7.5 HP). Select your preferred model from the product options before ordering.
- FREE SHIPPING: Included with Your Machine Purchase. Additional charges may apply for liftgate service, residential delivery, and scheduled delivery appointments.
- WARRANTY: 1-Year Manufacturer Limited Warranty, subject to manufacturer terms.
- Technical Support Available
- Replacement Parts & Maintenance Products: sold separately
PRODUCT DESCRIPTION
The Cantek PDC 2HP-7.5HP Dust Collector is ideal for the small shop looking to collect wood dust or for the larger shop to provide additional dust collection beyond the capacity of their central system. The upper and lower bags are made of cotton and help filter the collected air before it is recycled into the shop and also collects the dust for disposal. The base is mounted on casters to be taken to where it is needed in the shop.
SPECIFICATIONS
- CFM: 3200 CFM
- Main inlet diameter: 8”
- Connector inlet diameter: (3) 4”
- Fan diameter: 14”
- Static pressure: 19” of water
- Top filer bags (2): 5 micron (20” dia x 48” long)
- Bottom collection bags (2): 30 micron (20” dia x 33.5” long)
- Noise level: 90dB
- Electrical Requirements: 230V 3PHASE 60Hz 5HP 15.2Amp
- Machine Dims: 46” x 23” x 23”
- Approx Weight: 253 lbs
MODEL: PDC207 7.5HP
- 7.5 HP Motor
- 3600 CFM
- 10″ main inlet with removable outlet with (5) 4″ ports
- 5 micron upper filter bags and 30 micron collection bags
-
230/3/60 = 22 amps
575/3/60 = 9 amps
MODEL: PDC203 3HP
- 3HP Motor
- 2800 CFM
- 8″ main inlet with removable outlet with (3) 4″ ports
- 5 micron upper filter bags and 30 micron collection bags
-
230/1/60 = 17 Full Load Amps
MODEL: PDC102 2HP
- 12” blower powered by 2HP motor generating 1600 CFM
- Top & bottom cloth filter bags can be removed to dumping and cleaning
- 6” main inlet with (2) 4” inlet adapter
-
110/1/60 or 220/1/60
*OPTIONAL - CALL TO ADD-ON TO YOUR ORDER
- 575V Three Phase unit available (please contact a sales rep for more information)
- Top dust bag 5 micron
- Bottom dust bag 30 micron
- Top dust bag 30 micron
- Bottom plastic bags
- Strap for dust bags
