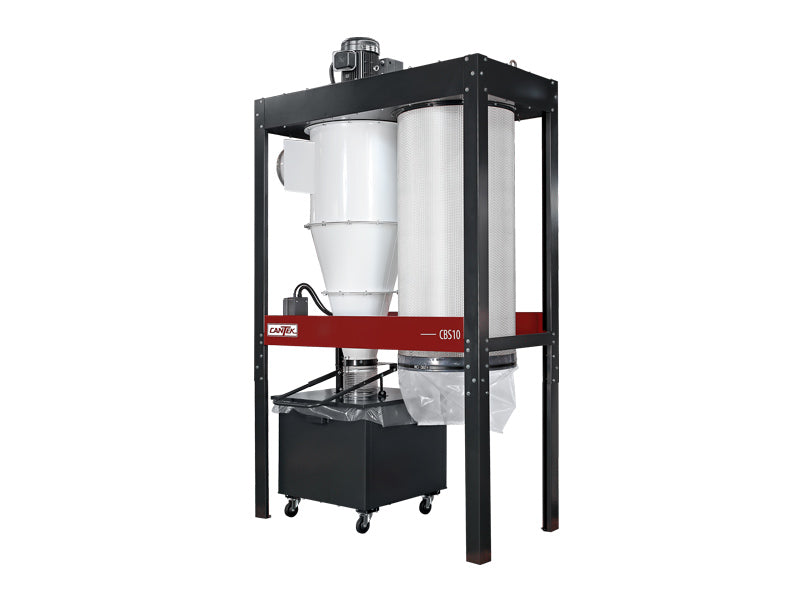

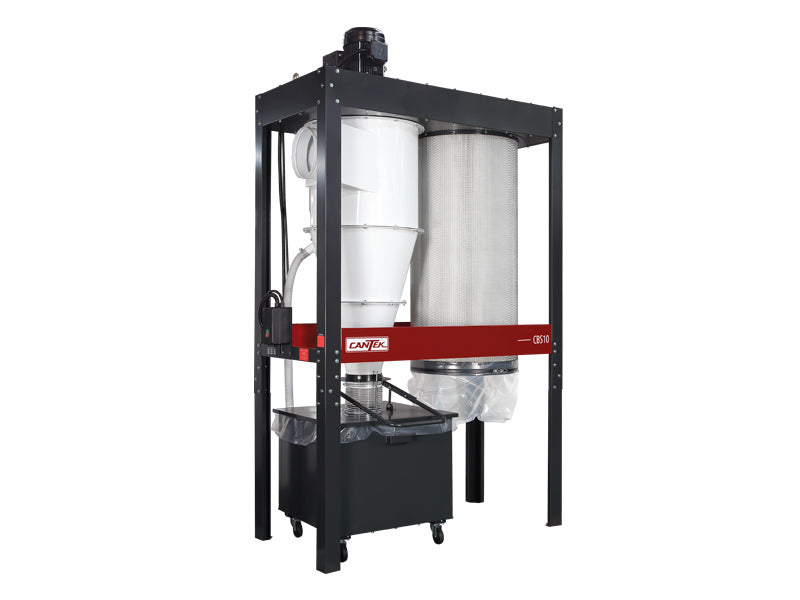

Cantek CBS10 10HP Cyclone Dust Collector | 4030 CFM

Cantek CBS10 10HP Cyclone Dust Collector | 4030 CFM

Cantek cyclone dust collector excel at efficiently removing both coarse and fine wood dust particles from your machinery. As dust is drawn into the system by a high-efficiency fan, it enters a cylindrical chamber where it circulates in a cyclonic pattern. Heavier coarse chips settle into a collection bin below, while fine dust proceeds through a HEPA filter. This meticulous filtration process ensures that only clean air is reintroduced into your workspace, promoting a healthier, dust-free environment for optimal productivity and breathable air.

Why Cantek CBS10 10HP Cyclone Dust Collector?

• Powerful 10HP blower motor generating 4030 CFM
• The 2-stage cyclone design separates coarse dust from fine with the fine dust passing through a HEPA filter before the air is returned to the shop ensuring optimal air quality

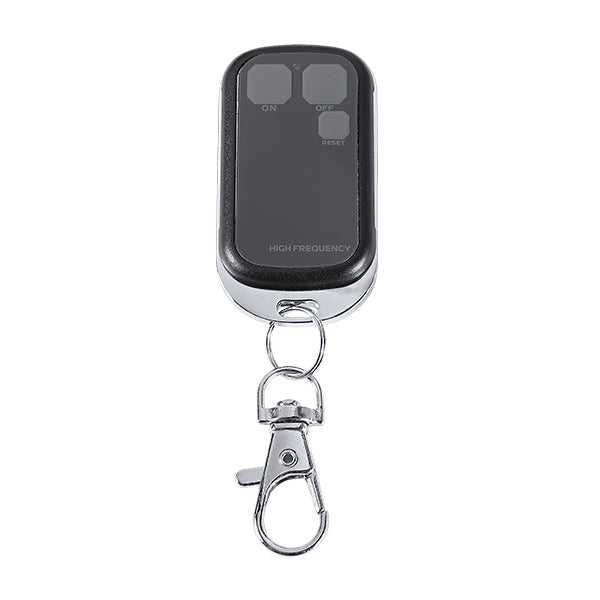

• Remote control on/off for added operator convenience
• Auto cleaning device for HEPA filter cleans every hour for 10 seconds
• Heavy-duty steel frame construction

FEATURES

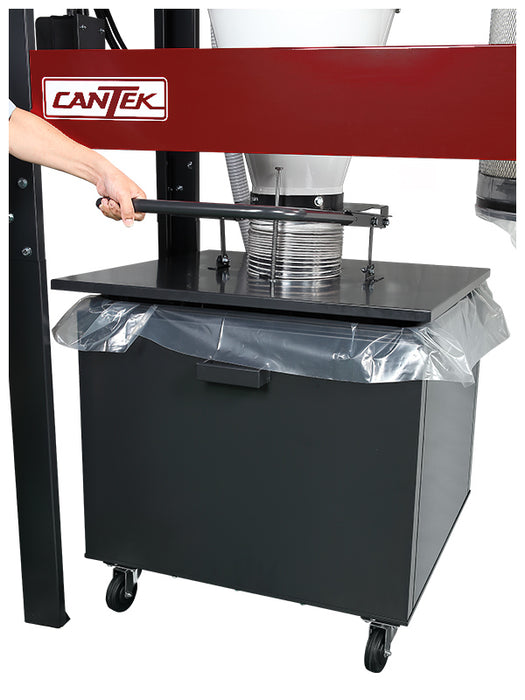

• Convenient quick release connection for removing the coarse dust bin which is outfitted with casters
• Bin is lined with plastic bag for simple and clean removal of dust
• HEPA filter is equipped with an automatic
• HEPA filter is equipped with a quick release system to remove and dispose of fine dust particles

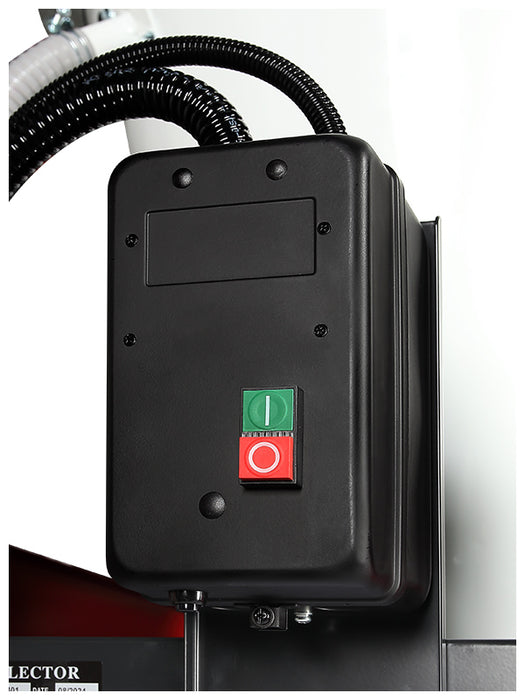

• Equipped with magnetic switch
• Fast and simple machine assembly

SPECIFICATIONS

• CFM capacity: 4030 CFM
• Fan diameter: 18.5”
• Dust port dims: 12”
• HEPA filter size: 29.5” x 59”
• Dust drum capacity: 115 gallons
• Sound rating: 82-85 dB
• Auto-cleaning motor: 0.03 HP
• Blower motor: 10HP
• Electrical Requirements: 230V Three Phase 60Hz 29Amp
• Machine Dims: 79” x 37” x 128”
• Approx Weight: 1,276 lbs
