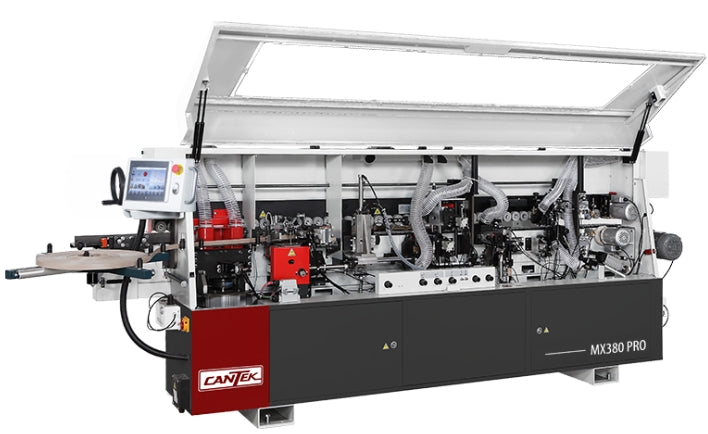

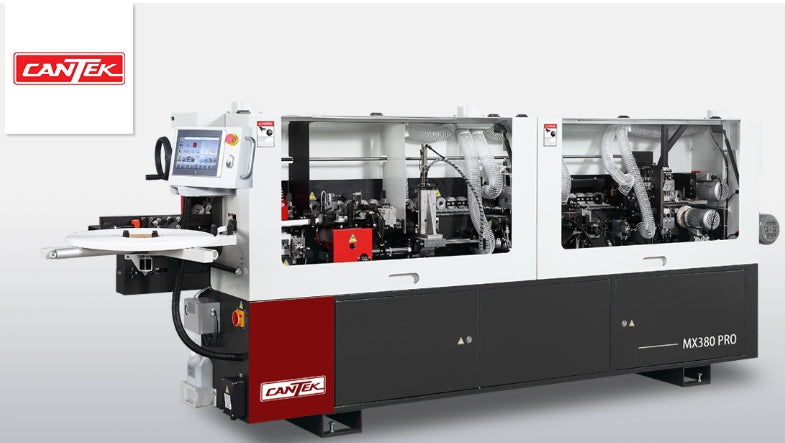

Why Cantek MX380T Automatic Edgebander?
· Versatile Edgebander capable of applying 0.4mm to 3mm edge tape.
· Quick change glue pot allows you to change glue colours in minutes.
· Premilling ensures a perfectly square edge and clean panel to work with, resulting in a minimally visible glue joint.
· An intuitive touch screen interface is not only user friendly but provides the operator with valuable information like detailed error reporting.
· The corner rounding function finishes the ends of cabinet doors with a radius edge, eliminating any manual rework of the panel.
Key Advantages
· Automatic edge feeding with a thickness capacity of 0.4–3 mm; strip material can be hand-fed.
· Conveyor chain feed system for reliable results.
· Teflon-coated hot-melt glue pot.
· Heated infeed fence for pre-heating the panel for optimum glue penetration.
· Workpiece is fed by chain.
· Edge coil support plate: Ø 800mm (31 ½") for PVC/ABS.
· Spring-loaded pressure unit with (2) pressure rollers.
· Heavy-duty pressure beam with extendable workpiece support.
Touch Screen Interface
· State of the art touch screen interface allows the operator to conveniently control various machine functions.
· On screen error diagnostics.
· Temperature setting with automatic temperature lowering.
WORKING UNITSS

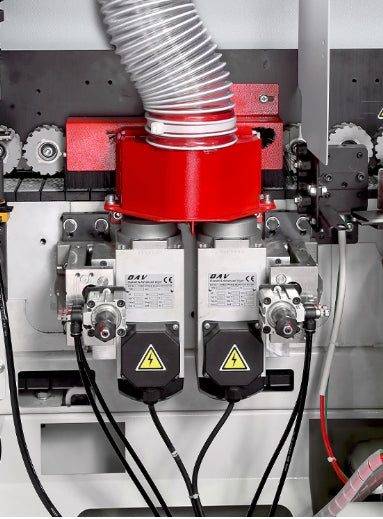

PREMILLING UNIT
High-frequency pre-milling units can remove up to 3mm and are designed to provide an ideal edge for applying edge tape by cleaning up poorly cut panels.
(2) counter-rotating diamond cutterheads for optimum results and longevity.
END TRIM
High frequency 12000 RPM end trimming unit, with 2 saw blades
TOP & BOTTOM TRIM
High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming.
CORNER ROUNDING
High-frequency corner rounding unit can process 0.4-3mm thick edgebanding by tracing the shape of the panel.
RADIUS SCRAPING
Radius scraper with 2mm radius.
FLAT SCRAPING
Flat insert knives designed to remove any excess glue which remains on the surface of the panel after applying the edge due to squeeze out.
BUFFING
3000 RPM top & bottom buffing units to polish the machined edge.
SPECIFICATIONS
Feeding speed |
29 FPM |
9 meters/min. |
Panel thickness |
0.315″ ~2.36″ (coil) |
8~45 mm (coil) |
Edge thickness – coil |
0.0158”~0.118” |
0.4 ~ 3 mm |
Edge thickness – strips |
to 0.24” |
to 6 mm |
Min. panel width |
3 1/2” |
90 mm |
Min. panel length |
6.7″ |
170 mm |
Working table height |
38″ |
960 mm |
Extension support width |
22″ |
560 mm |
Dust collection outlet |
Ø 5″ x3 |
Ø 127 mm x3 |
Air consumption |
12.36 CFM |
350 liters/min |
Electrical consumption |
10.9 HP |
6.7 KW |
Electrical requirement |
230/3/60 |
26 Full load amps |
Machine weight |
2024 lbs |
910 kgs |
Machine dimensions |
156” x 29” x 69” |
3960 x 730 x 1748mm |
MOTOR SPECIFICATIONS
Feeding motor |
1.5 kW |
Pre-milling motors (2 pcs) |
1.5 kW each (12000 RPM) |
Glue spindle motor |
0.25 kW |
Front/rear trimming motor |
0.22 kW (12000 RPM) |
Upper trimming motor |
0.37 kW (12000 RPM) |
Lower trimming motor |
0.37 kW (12000 RPM) |
Corner rounding motor |
0.37 kW (12000 RPM) |
Upper buffing motor |
0.12 kW (3000 RPM) |
Lower buffing motor |
0.12 kW (3000 RPM) |
Pre-heating |
0.4 kW |
Gluepot |
1.315 kW |
