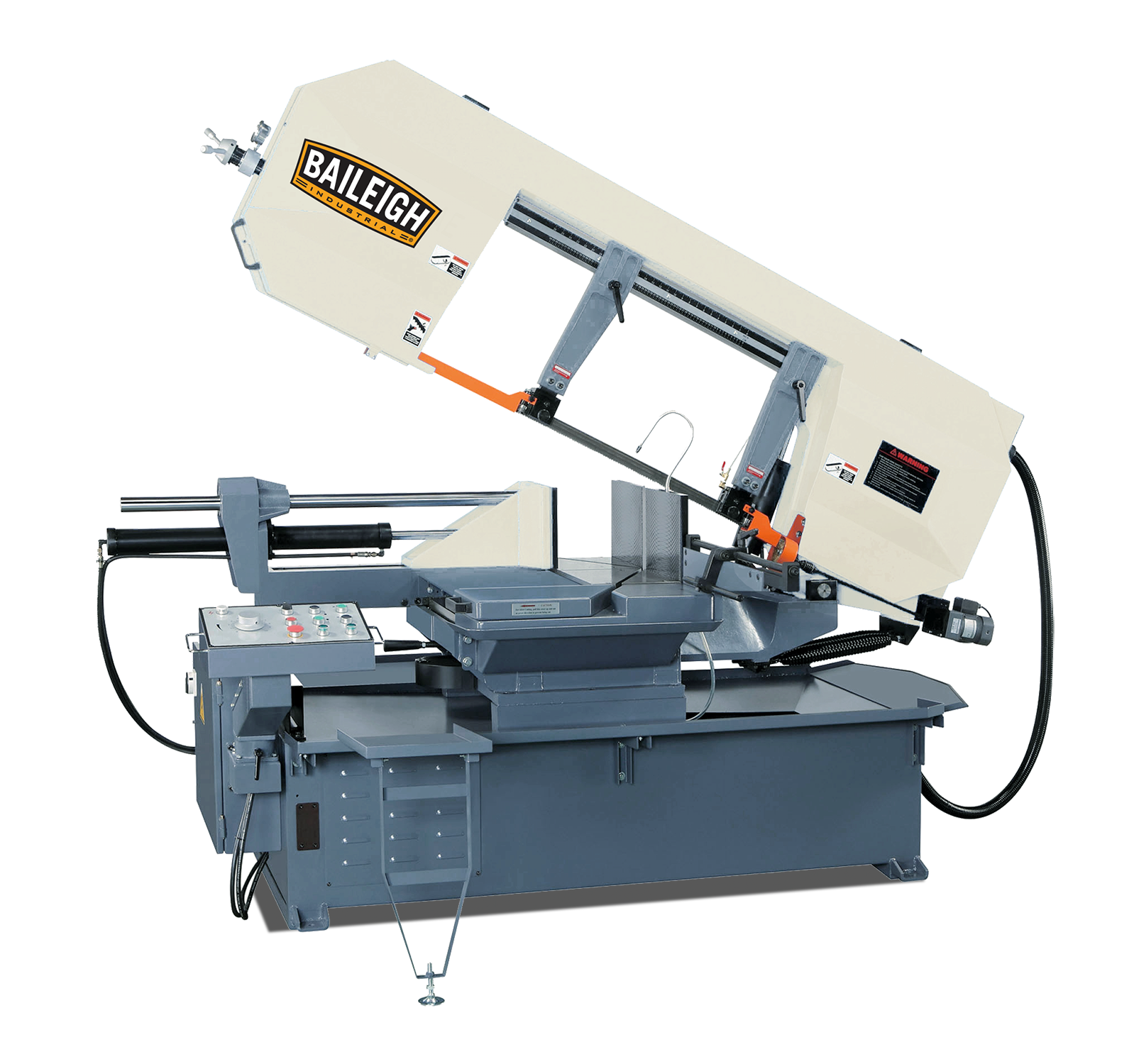

Baileigh BS-24SA-DM Semi-Automatic Dual Mitering Horizontal Band Saw I 220V 3 phase 5HP I
by Baileigh
$38,169.00
This dual-mitering band saw doesn’t sacrifice on capacity. With a hydraulic system, cast iron bow, and steel frame, the BS-24SA-DM is built for decades of efficient production.
- Cuts 18” round or 15” x 24” rectangle at 90° and swivel head miters 60° left and right
- Accepts a standard 1.5” blade (included). This width makes the cutting fast and accurate
- 106 to 317 fpm variable blade speed, allowing for infinite blade speed adjustments. Adjustable speed lets you fine-tune for different materials, like mild steel, bronze, or aluminum
- Runs on 220-volt 3-phase power for reliability
- Sturdy cast iron vise and bow prevent wobbling and keep cuts accurate and electro-welded steel frame stabilizes the machine, reducing vibrations for many years of accurate cuts
- Semi-automatic system with hydraulic down feed speeds up production. You just put the material in place and start the controls. The saw will take care of the rest
- Industrial-grade hydraulics open and close the quick-lock vise with flood coolant system that washes away metal chips and helps prolong blade life
- Adjustable hydraulic descent pressure helps you achieve faster cut times and longer blade life
- You can change the return position of the saw head for faster cycle times between cuts on smaller dimensioned pieces
- Patented blade tension device allows you to set the right tension quickly and easily. Line up the black arrow with the green liquid-filled gauge
Specifications
| Stock Number | BA9-1001389 |
|---|---|
| Blade Guide | Carbide x Roller |
| Blade Speeds (SFPM) | 106 - 317 |
| Capacity Round 45 | 17.5 |
| Capacity Round 90 | 18.1 |
| Capacity Round 90 X 45 X 60 | 18" x 15.7" x 11" |
| Descent Control | Pressure Assist Hydraulic |
| Drive | Belt x Pulley |
| Input Power | 220 Volt Three Phase |
| Type of Miter Adjustment | Dual Miter Swivel Head |
| Miter Angle Range (Deg.) | 0 - 60° Left and Right |
| Model Number | BS-24SA-DM |
| Motor (HP) | 5 hp |
| Prop 65 | Cancer and Reproductive Harm |
| Return | Hydraulic |
| Shipping Dimensions (L x W x H) (In.) | 111x45x74 |
| Solid Rectangle at 90 Degrees (In.) | 17" x 24" |
| Table Height (In.) | 31.5 |
| Warranty | 1 Year |
| Gross Weight | 3550.0 |
| Net weight | 3550.0 |
