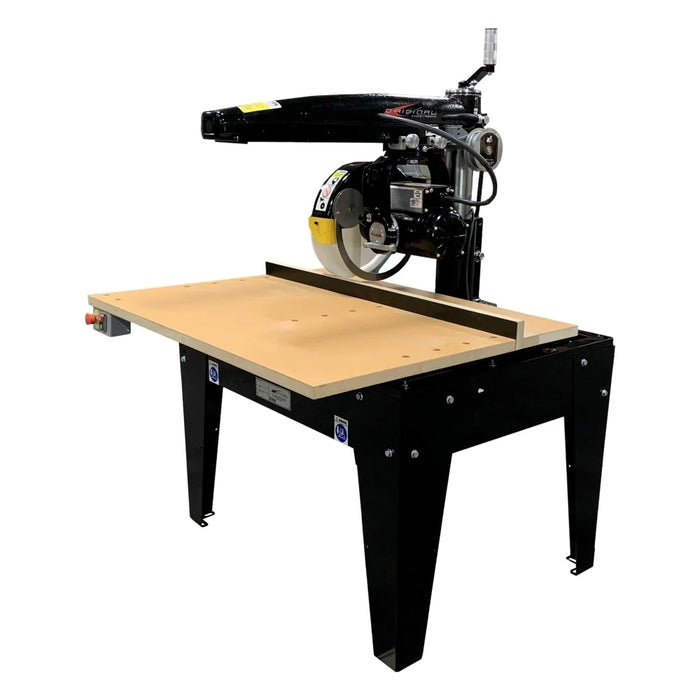

16″ Heavy Duty Radial Arm Saw, 16” OR 24" Crosscut 5HP 3Ph | 3541/ 3546

** FREE SHIPPING **

16″ Heavy Duty Radial Arm Saw, 16” OR 24" Crosscut 5HP | 3541=(16" wide)/ 3546=(24"wide)

16″ Radial Arm Saws provide superior performance in the wood cutting industry.

16″ Heavy Duty Series wood cutting saws feature 5 horsepower motors capable of handling industrial wood cutting environments.

The versatility of this series makes it well-suited for use in the following industries:

• Custom cabinet shops
• School tech departments
• Lumberyards
• Creating departments
• Home centers
• Packaging departments
• Manufacturing plants
• Serious woodshops

• crosscutting
• miter cutting
• bevel cutting
• compound miter cuts
• dado operations
• rip cuts (with added-on rip kit)

 Most important, it is a smooth cutting saw with a rigid feel, capable of making accurate and repeated cuts.

 These American-made saws are built in a Northern Iowa facility with American castings and motors.

Radial Arm Saws feature cast iron and aluminum construction. Also, these radial arm saws weigh a massive 500 pounds and offer vibration-free operation.

As a result of its versatility, Original Saw Company 16″ Heavy Duty Radial Arm Saws are much more than a radial arm saw. They are a stable cutting platform for many crosscutting and dado operations. Furthermore, outfit a Radial Arm Saw with Saw Extension Tables and Saw Measuring Systems for safe support and measurement of your material.

Recent Upgrades to the 16″ Heavy Duty Series Include the following:

• High-density polyethylene lower guards provide full coverage.
• The start/stop button relocation to the left front edge of the table improves accessibility.
• The E-stop became a standard feature. This switch halts the operation of the Radial Arm Saw. Most important, it shuts off all potential hazards outside of the saw’s power enclosure.
• New elevating cranks and the yoke pull grip have redesigned handle grips for ease of use.

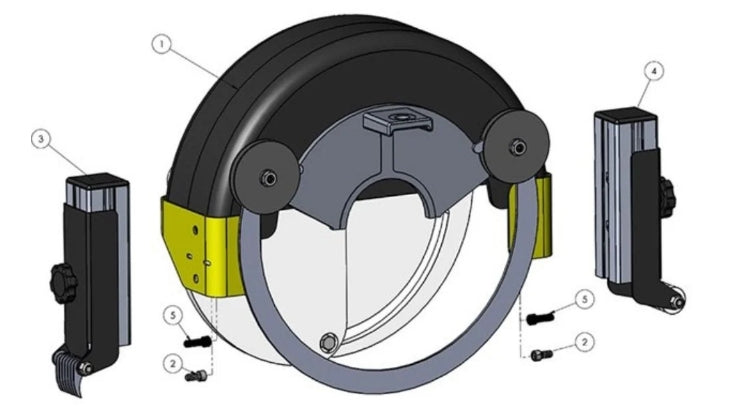

• New upper guard housing now doubles as a dado guard.
• Multiple table options are available.

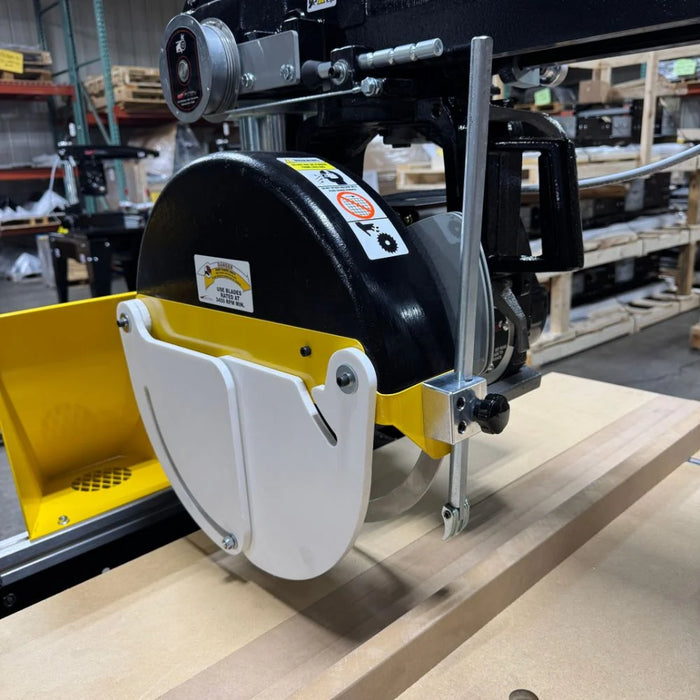

• Lastly, swivel to RIP KIT INCLUDED

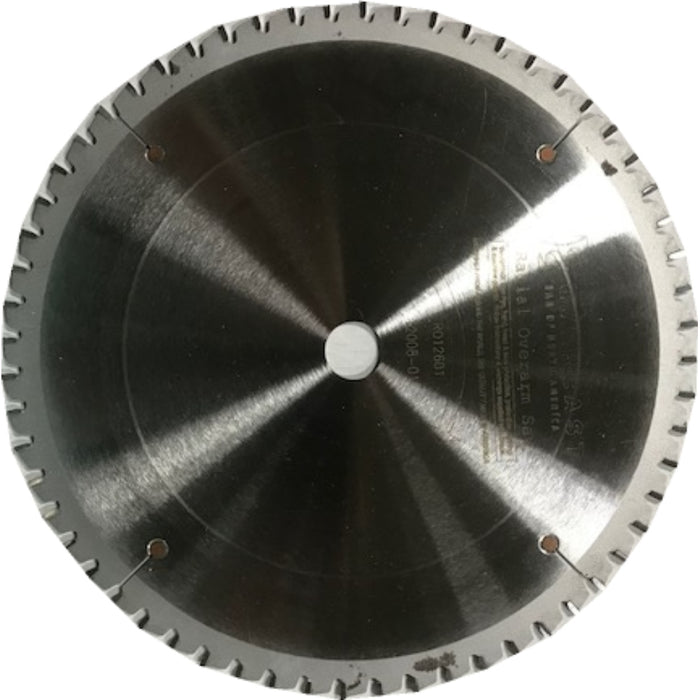

• Saw blades sold separately from machines

FEATURES

• 5″ depth of cut
• Carriage return spring
• Adjustable cross cut stop
• E-Stop
• Oversized MDF table top
• Automatic blade braking system
• Carriage rides on 8 wide-contact double row ball bearings, which provides smooth vibration-free travel
• Arbor nut and precision ground blade collars
• Standard work table height 33″
• HDPE (high-density polyethylene) lower blade guard that provides full coverage
• Made in USA, Manufacturing of Radial Arm Saws happens after the customer orders.
• Machines are considered custom and are made voltage specific.

• Because some cutting applications are custom and specific, our team may contact you about your purchase. It is our priority to build a saw that fits our customers’ needs.

• Radial Arm Saws are assembled and tested in our facility. After being test run, the saw is packaged and placed on a skid. The legs are attached to the skid.
