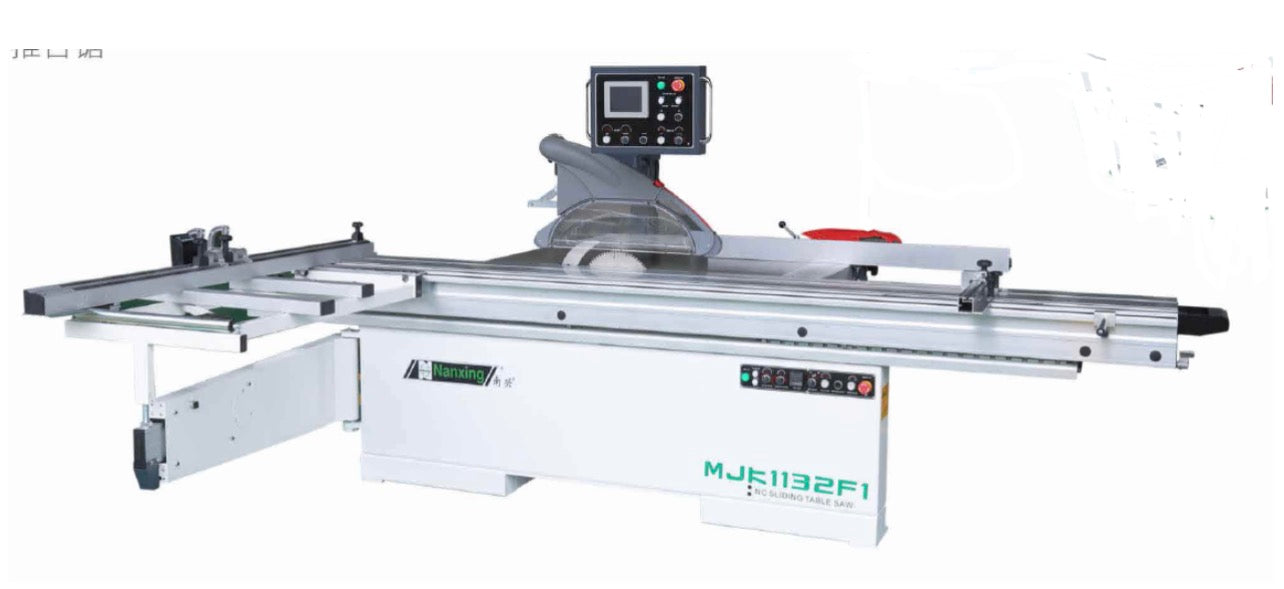

Sliding Panel Saw 10" | MJK1132F1

General information:

• Prices indicated are FOB Los Angeles CA. US. Tooling, rigging, freight & sales taxes are not included
• Warranty: 1 year
• Training, installation, tooling & rigging are option. Customer is responsible for local regulations and utilities connecting

MJK1132F1 makes cutting on the sliding table saw easier and more precise. The up, down, and tilting of the main saw and scoring saw blades are controlled electrically by simply pressing buttons. The rip fence enables movement to the required position by inputting a number on a user-friendly touchscreen, offering maximum operational convenience for the machine. Additionally, the digital display on the guiding board facilitates easier and more accurate reading of the number.

Features:

• Machine frame

The steel frame, welded with heavy steel plates, is made by a tip-top metal processing center. After heat treatment and construction, the steel frame is solid and stable, which permits high-capacity cutting.

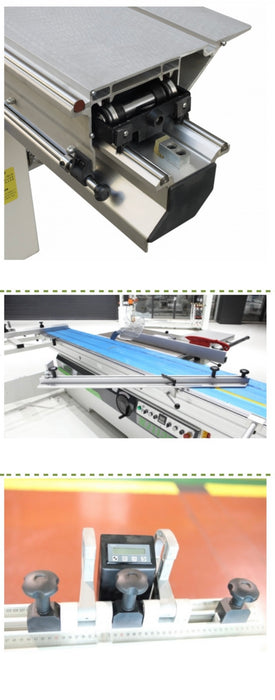

• Sliding table

Easy-running sliding table ensures a straight cut. It can be locked at any position along the rail and makes it easy to cut as per the intended dimension.

• Single-sided miter fence

A single-sided miter fence helps with precise miter cutting. It is easy to set and fix on the sliding table.

• Digital display of the rip fence

A cross-cut fence can easily move from the front to the back for different cutting requirements; it is very important for precise cutting. Double rulers coupled with a magnifying glass help the operator read a maximum cutting length of 3.1 m by
requirement, then lock the handle position for precise
cutting.

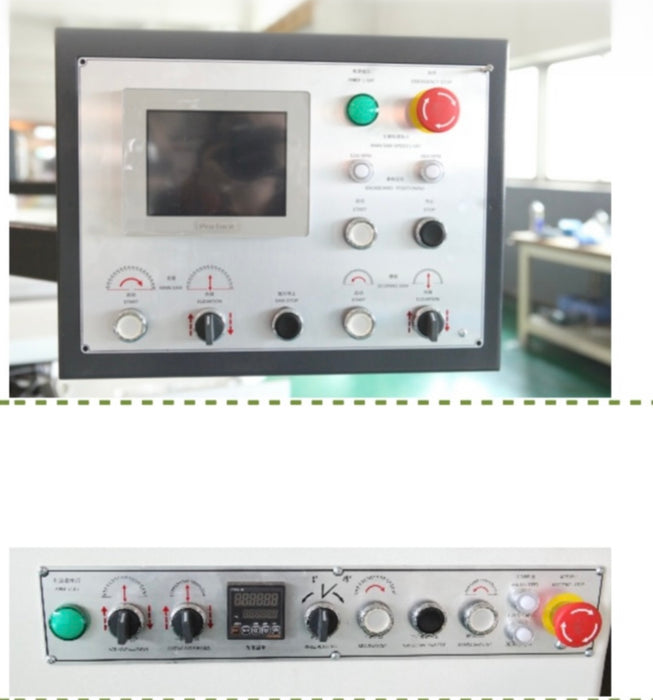

• Operation panel

Rip fence enables moving to the required position by inputting a number in a user-friendly touch screen, which offers the machine maximum operation convenience

• Electrically control

Up, down, and tilting of the main saw and scoring saw blades is controlled electrically by just pressing buttons.

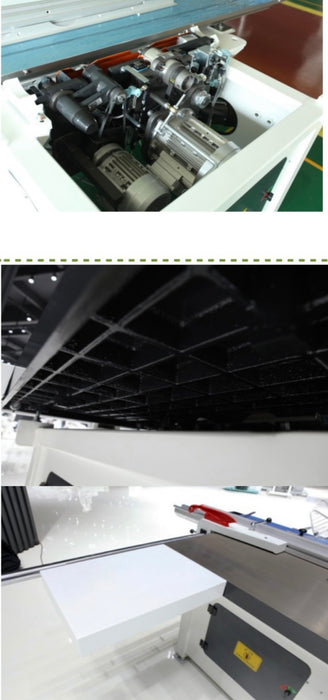

• Powerful saw motor

Powerful motors to ensure excellent cutting performance;The main saw blade rotating speed can be easily switched between 5200 and 3800 rpm.

• Strong working table

An extended working table with high rigidity and stiffness, which means longer service life and stable cutting.

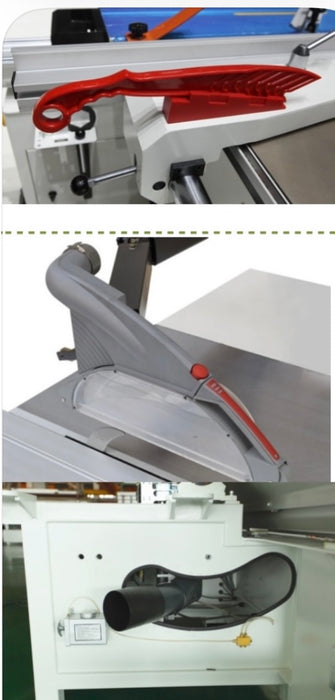

• Push stick

The push stick is an important safety tool for cutting narrow workpieces. The push stick is used to cut workpieces within the danger zone of saw blade (120mm). The push stick must be used for cutting narrow workpieces (30 mm).

• Europe Dust collection

Big Europe dust collection efficiently prevents scrap and dust, providing good processing conditions.

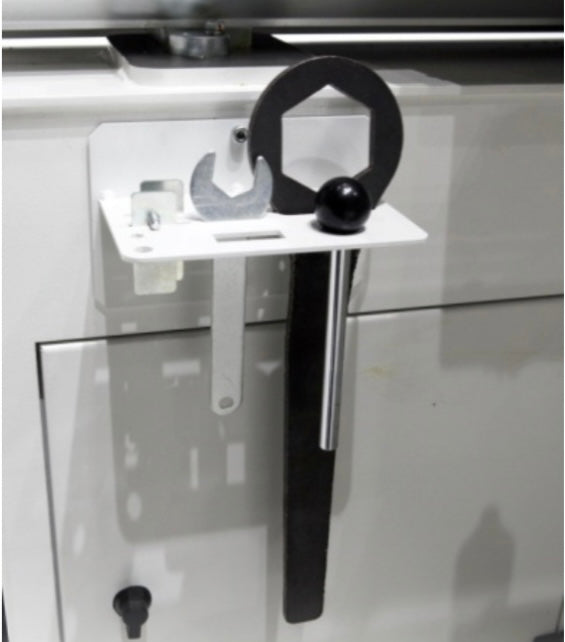

•  Tool holder

The tool holder on the machine provides maximum convenience for changing the saw blade or for other applications.

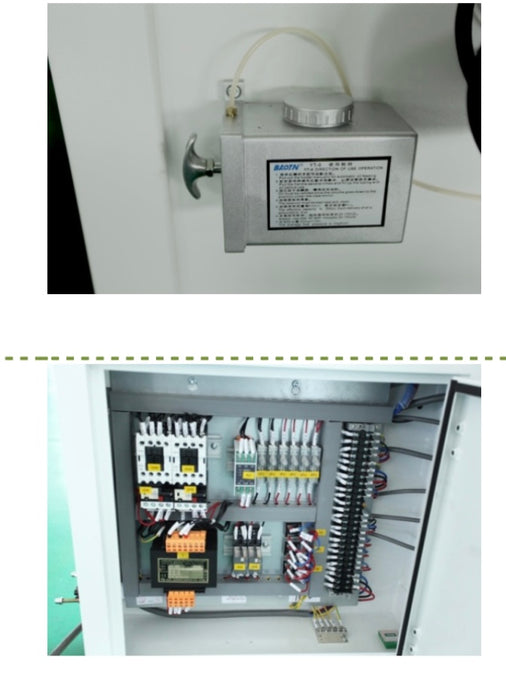

• Lubrication

Lubrication is used to keep machine components running smoothly, making it easy to operate.

• Control cabinet

Compact and simple structure, saving space.  All electrical components are sourced from reputable brands for higher quality and stability.

Technical Data

Max. cutting length: 3100mm
Max cutting thickness: 0°:100mm;      45°:70mm

• Main saw

Power: 5.5kw
Rotating speed: 3800/5200rpm
Saw blade diameter: （φ300-φ350）*φ30mm

• Scoring saw

Power: 1.1kw
Rotating speed: 9000rpm
Saw blade diameter: φ120*φ22mm

Dust collector: 120mm
Saw blade angle: 0-45°
Power supply: 380 V; 50 Hz
Air pressure required: 0.7 MPa
Total power: 6.6 kW
Approx. weight: 980 kg
Overall dimension: 3,300*3,430*1,670 mm
