Sullivan-Palatek Legacy Series RSD15 15 HP Rotary Screw Air Compressor |120-gallon tank 125 PSI 3-Phase (200-575V) | Open/ Enclosed
When performance meets reliability, you get the Sullivan-Palatek Legacy Series. These industrial compressors are tested over time and engineered to withstand the toughest environments while delivering unmatched efficiency and dependability.
Sullivan-Palatek Trusted Legacy Series – where heritage meets innovation.
Engineered to be both dependable and versatile, the D-Series industrial electric direct drive rotary screw air compressor is one of many energy-efficient solutions developed by Sullivan-Palatek. The D-Series compressors are offering a range of 15-40 hp. They are equipped with an easily readable microprocessor, a coupling and air end mounted to the motor C-face. It utilizes a sizeable oversized separator element & sump tank as well as easily replaceable oil & air intake filters. With their compact size and high reliability, these machines are ideal for smaller industrial settings such as automotive shops, small machining facilities, and fabrication facilities. The D-Series compressors utilize many easily accessible parts, making the overall cost of ownership much lower than many of our competitors.
Sullivan-Palatek Legacy Series – where heritage meets innovation.
APPLICATIONS
- Manufacturing
- Small Industrial Settings
- Automotive Shops
- Small Machining Factories
- Fabrication Workshops
- Food and Beverage
- Hospitals
Key Features & Benefits:
COMPRESSOR UNIT:
» Fluid flooded rotary screw, continuous duty, industrial air compressor.
» Direct coupled to motor for positive alignment.
ELECTRIC MOTOR:
» Nema T-frame, (TEFC), squirrel cage induction type. SPEED 1750 RPM
» 230/460/3/60
MOTOR STARTER:
» Full voltage magnetic starter with 115 controls, Nema 4 enclosure, circuit breaker,
transformer and three-phase overload protector.
»Wye Delta
COUPLING & DRIVE:
» Compressor is flange mounted to motor C-face for positive alignment and gear driven with low maintenance coupling.
AIR INTAKE FILTER:
» Corrosion resistant housing » Oversize multi-stage dry type with replaceable element.
COOLING SYSTEM:
» Air-cooled oil aftercooler and factory filled with Palasyn 45 synthetic lubricoolant.
INSTRUMENTATION:
»Microprocessor
PROTECTIVE DEVICES:
» Class 20 overload relay, high temperature and overpressure shutdown
Options Available:
Receiver Tank: 120 gallon
Integrated Dryer
SPECIFICATIONS
| Weight | 580 lbs |
|---|---|
| Dimensions | 61 × 30 × 34 in |
| Capacity |
50.1CFM |
| Enclosure |
Enclosed, Open |
| Horsepower |
15 HP |
| Motor Upgrade |
None, TEFC |
| PSI |
125 |
| Starter Upgrade |
None, Wye-Delta |
| Tank Size |
120 Gallons |
| Voltage |
3/60/200V, 3/60/208V, 3/60/230V, 3/60/460V, 3/60/575V |
-

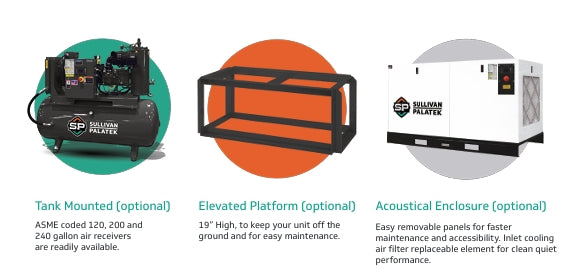

OPTION-Tank mounted
- ASME coded 120, and 200 gallon with auto drain
- Platform mounted:
- 19″ high to keep your unit off the ground and for easy maintenance
- Acoustical enclosure:
- Acoustical enclosure: Easy removable panels for faster maintenance and accessibility while keeping it quiet
- Lubricant:
- Lubricant: factory fill with Pallube 32, Pal-Extra 44, AFX 32, or Food Grade lubricant
- Wye-Delta and Solid States starters
- Air filter pop up indicator
- Deluxe gauge panel:
- Line pressure gauge, discharge pressure gauge, hourmeter, temperature gauge, lube filter and separator element diffenential gauges
- HATD shutdown switch:
- Shuts the compressor if high discharge air temperatuer are sensed
- Cold weather/low ambient package
- Separator trap:
- Captures and automatically drains condensed water, oil, and dirt
