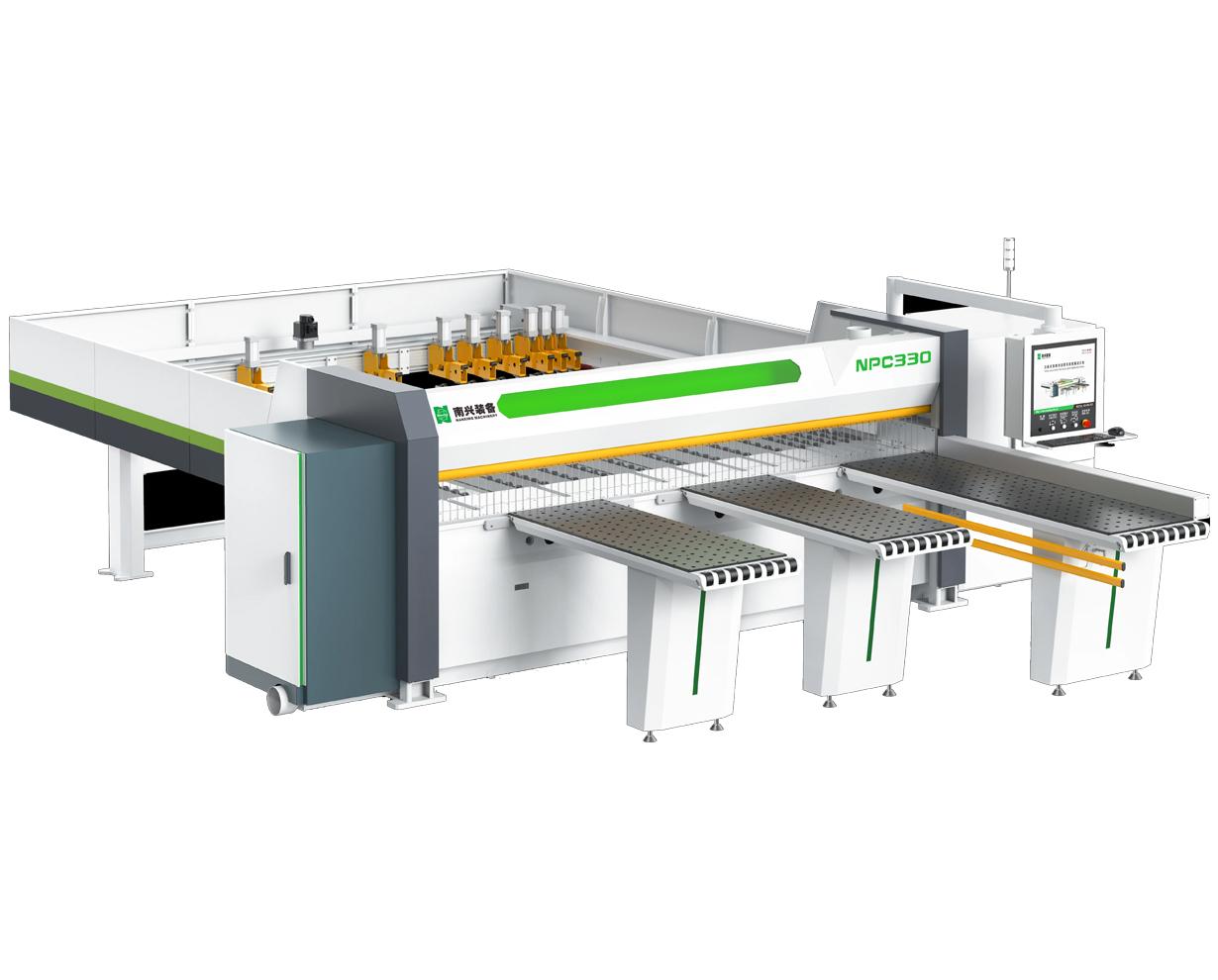

Nanxing NPC330 CNC Beam Saw – 130" Cutting Capacity, 20 HP

NPC330 KEY FEATURES

• High-Production CNC Panel Dividing Saw: Computer-controlled horizontal beam saw designed for precision cutting, panel sizing, and production woodworking applications.
• 130” Maximum Cutting Length: Handles panels up to 3,300 mm (129.9”) long, suitable for cabinet manufacturing, furniture production, and panel processing.
• 3.54” Maximum Cutting Thickness: Cuts material up to 90 mm thick for efficient processing of individual panels or stacked panel materials.
• 20 HP Main Saw Motor: Powerful 15 kW main saw motor operating at 3,910 RPM for demanding production cutting applications.
• High-Speed Servo-Driven Saw Carriage: 2 kW servo-driven carriage with rack-and-pinion movement, automatic travel adjustment, and return speeds up to 120 m/min for improved cutting efficiency.
• Automatic Panel Feeding: 2 kW servo-driven feeding system with speeds up to 85 m/min and eight standard pneumatic grippers for secure positioning and accurate cutting.
• Main Saw and Scoring Saw: Independently controlled blade movements with automatic main saw height adjustment to support clean, precise cuts and minimize panel edge chipping.
• Automatic Pressure Beam: Self-adjusting pressure beam accommodates panel stack height and applies even pressure for stable cutting.
• Three Air-Float Support Tables: Air-assisted panel handling reduces friction and helps protect panel surfaces during loading and positioning.
• Advanced Cutting Optimization Software: Includes Nanxing NXPareto optimization software for efficient cutting layouts and material utilization.
• 15” Computer Control: User-friendly Windows-based industrial computer with cutting pattern simulation, production reporting, error notifications, and barcode printing capability.
• Heavy-Duty Construction: High-tensile steel machine frame, precision-machined components, and rigid steel table surfaces for durability and accuracy.
• Automatic Lubrication System: Automatically lubricates major machine components to reduce routine maintenance requirements.
• Saw Blades: Main saw and scoring saw blades are not included.
• WARRANTY: 1-YEAR
• U.S.-Configured & Supported by Castaly Industries: Manufactured by Nanxing and adapted for the U.S. market by Castaly Industries in California, including U.S.-compatible electrical components and configurations. Castaly provides U.S.-based manufacturer warranty coverage, technical support, and service assistance.

• INSTALLATION & OPERATOR TRAINING

  • 3-Day On-Site Installation & Operator Training: Available for an additional charge.
  • Installation & Training Cost: Not included in the machine purchase price. Additional charges will apply.
  • Scheduling: Installation and training must be arranged in advance and are subject to technician availability.

PRODUCT DESCRIPTION

NPC330 Computer Panel Dividing Saw – High-Speed CNC Beam Saw

The Nanxing NPC330 Computer Panel Dividing Saw is a heavy-duty, high-production CNC beam saw engineered for accurate, efficient, and repeatable panel cutting in professional woodworking and furniture manufacturing operations.

Designed for cabinet manufacturers, furniture production facilities, and industrial panel-processing shops, the NPC330 combines a powerful 20 HP main saw motor, automatic panel feeding, servo-driven saw carriage, intelligent cutting optimization software, and precision panel positioning systems.

With a maximum cutting length of 130” and maximum cutting thickness of 3.54”, the NPC330 accommodates demanding panel-sizing requirements while helping manufacturers increase productivity and maintain consistent cutting quality.

High-Speed Cutting and Precision Performance

The NPC330 uses a servo-driven saw carriage with a rack-and-pinion transmission system to provide smooth, accurate movement. The saw carriage automatically adjusts its travel distance according to panel width, reducing unnecessary movement between cutting cycles.

The powerful 15 kW main saw motor works alongside an independently controlled scoring saw to help produce clean cuts with reduced edge chipping.

Automatic blade height adjustment further improves cutting efficiency by minimizing unnecessary saw movement.

Automatic Feeding and Panel Positioning

The automatic feeding system features a 2 kW servo motor, precision rack-and-pinion transmission, and eight standard pneumatic grippers that securely hold panels during feeding and cutting.

An integrated side-alignment device assists with accurate squaring, while the automatically adjusting pressure beam applies consistent downward pressure across the workpiece.

These systems work together to improve positioning accuracy, cutting consistency, and production efficiency.

Air-Float Tables for Easier Material Handling

Three air-float support tables help operators position and move large panels with reduced friction.

The integrated 2.2 kW air blower supplies airflow through the tables, allowing panels to move more smoothly while helping reduce scratches and surface damage during handling.

Intelligent CNC Controls and Cutting Optimization

The NPC330 includes an industrial computer control system with a 15” display and Nanxing NXPareto cutting optimization software.

The control system provides cutting pattern simulation, workflow management, production reports, error notifications, and barcode printing capability.

Operators can manage cutting operations through a user-friendly interface designed to simplify production setup and improve workflow efficiency.

Heavy-Duty Industrial Construction

The NPC330 features a high-tensile steel machine frame manufactured using robotic welding, heat treatment, and CNC precision machining.

Its rigid construction, precision guide systems, and durable steel work surfaces are designed to provide stability, accuracy, and dependable performance in demanding production environments.

Additional features include automatic lubrication, enclosed saw guarding, an operator protection device, and a dust extraction system with three 150 mm connections.

The Nanxing NPC330 provides an integrated panel-cutting solution for woodworking manufacturers seeking greater automation, efficient material handling, and consistent cutting performance.

TECHNICAL SPECIFICATIONS

Cutting Capacity

• Maximum Cutting Length: 3,300 mm (129.9”)
• Maximum Cutting Thickness: 90 mm (3.54”)

Main Saw

• Motor Power: 15 kW (approximately 20 HP)
• Rotating Speed: 3,910 RPM
• Saw Blade Diameter: 380 mm (14.96”)
• Maximum Blade Diameter: 400 mm (15.75”)
• Saw Blade Arbor Diameter: 60 mm

Scoring Saw

• Rotating Speed: 4,300 RPM
• Saw Blade Diameter: 200 mm (7.87”)
• Saw Blade Arbor Diameter: 45 mm

Saw Carriage

• Servo Motor Power: 2 kW
• Forward Speed: Up to 100 m/min (manufacturer technical-data rating)
• Return Speed: Up to 120 m/min
• Drive System: Servo-driven rack-and-pinion transmission

Automatic Feeding

• Feeding Motor Power: 2 kW
• Maximum Feeding Speed: 85 m/min
• Standard Grippers: 8 pneumatic grippers
• Optional Configuration: 12 grippers

Computer and Controls

• Control Display: 15” industrial computer
• Operating System: Windows 7 (listed manufacturer configuration)
• USB Ports: 4
• Cutting Optimization Software: Nanxing NXPareto
• Control System: PLC-based computer control
• Interface Languages: English and Chinese

Air System and Dust Collection

• Required Air Pressure: 0.6 MPa (approximately 87 PSI)
• Air-Float Tables: 3
• Air Blower Motor: 2.2 kW
• Air Blower Flow Rate: 5.2 m³/min
• Dust Extraction Connections: 3 × 150 mm (approximately 5.91”)

Electrical Specifications

• Voltage: 220V / 440V AC
• Phase: 3-Phase
• Electrical Requirements: 220V – 90 Amps or 440V – 45 Amps
• Total Rated Power: 21.5 kW
• Electrical Configuration: Confirm selected voltage before ordering.

Dimensions and Weight

• Overall Length: 6,900 mm (271.7”)
• Overall Width: 5,495 mm (216.3”)
• Overall Height: 1,830 mm (72.0”)
• Net Weight: 5,300 kg (approximately 11,684 lbs)

Standard Equipment and Features

• Servo-driven saw carriage
• Automatic servo-driven panel feeding
• 8 pneumatic panel grippers
• Automatic pressure beam
• Side alignment device
• Main saw and scoring saw units
• 3 air-float support tables
• NXPareto cutting optimization software
• 15” industrial computer control
• Automatic lubrication system
• Operator protection device
• Enclosed dust cover
• Side operation rod
• 3 dust extraction connections

Optional Equipment

• 12-gripper configuration
• Printer
• Opticut software
• Scanner for rework functions

Important: Saw blades are not included. Manufacturer specifications and configurations are subject to change. Confirm electrical requirements, equipment configuration, and optional accessories before ordering.
