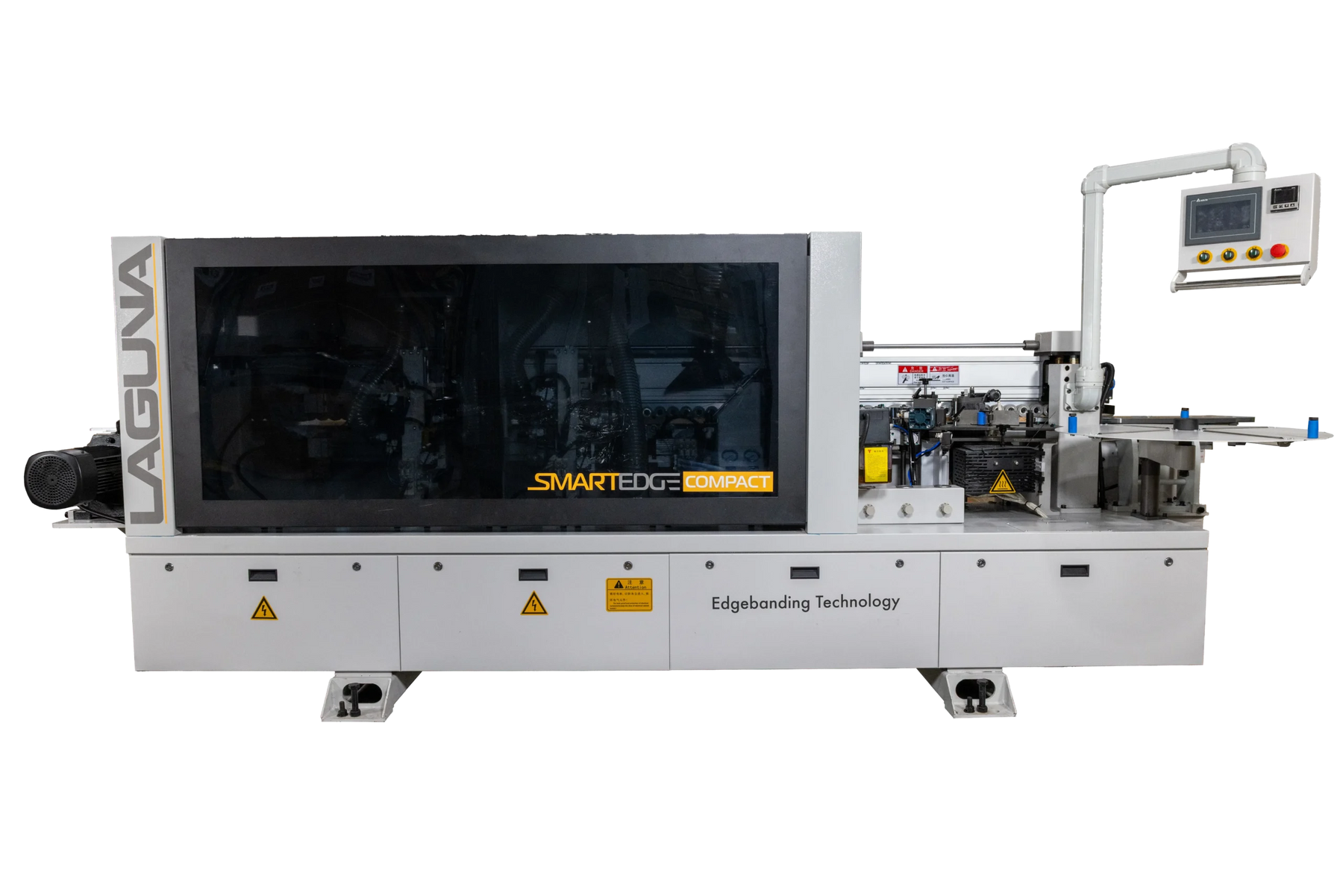

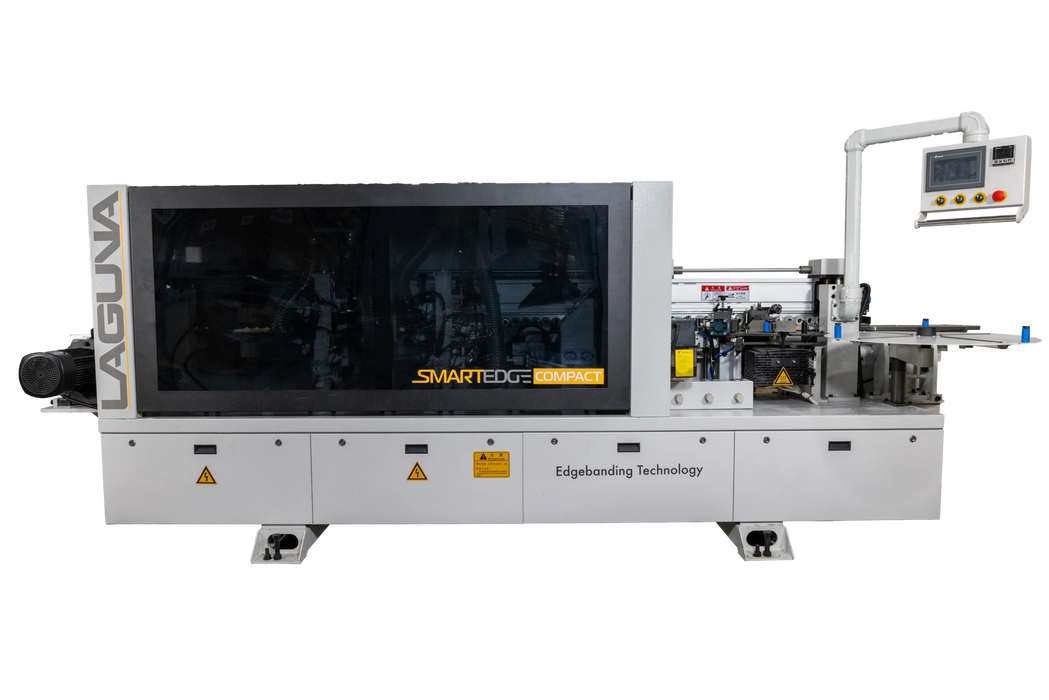

Laguna Tools SmartEdge Compact Automatic Edgebander 220 V, 3 Phase | MEB-SEC
Get ready to streamline your edge banding process with the all-new Laguna SmartEdge Compact Edgebander. Designed for small to mid-size shops, this space-saving machine delivers industrial-level performance in a compact footprint. Engineered with precision, speed, and ease of use in mind, the SmartEdge Compact is your next step toward flawless edge finishing.
FEATURES
- Power: 220 Volt, 3 phase 50 Amp
- Compressed Air Required: 90 PSI Clean dry air
- Tape Thickness (min-max): 0.5 mm – 3 mm
- In-feed Fence: Heated
- Glue Tank Capacity: 30 oz Teflon Coated

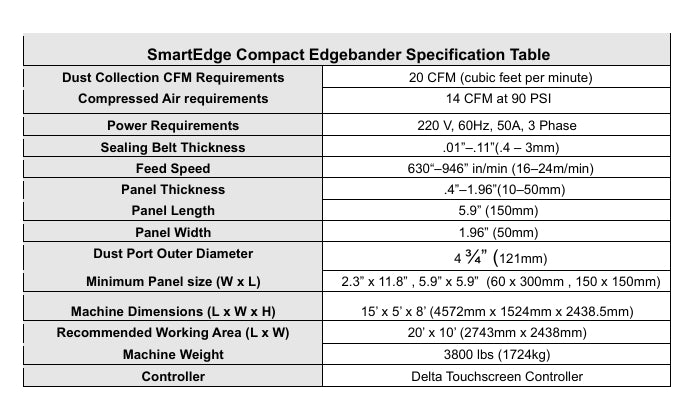

SPECIFICATIONS
- Glue Heating : Hot Melt Glue Pot
- Pressure Rollers: Yes
- Panel Feed: Yes
- Minimum Panel Length: 5.9″
- Minimum Panel Width: 1-9/16″
- Dust Collection Port: 4-3/4″ x 3
- End Trim: Yes
- Edge Trim: Yes
- Buffing: Yes
- Scraping: Yes
- Pull-Out Support: Yes
- Centralized Controls: Touchscreen
- Feed Speed: 52′-78′ / Min
- Edgebanding Thickness: .5mm-3mm
- Panel Thickness: .4″-1.96″ (10mm-50mm)
- CFM Requirement: 1000 CFM
- Compressed Air Requirement: 10CFM @ 90PSI
- Minimum Panel Size: 2.3” x 11.8” , 5.9” x 5.9” (60 x 300mm , 150 x 150mm)
- Centralized Controls: Touchscreen
