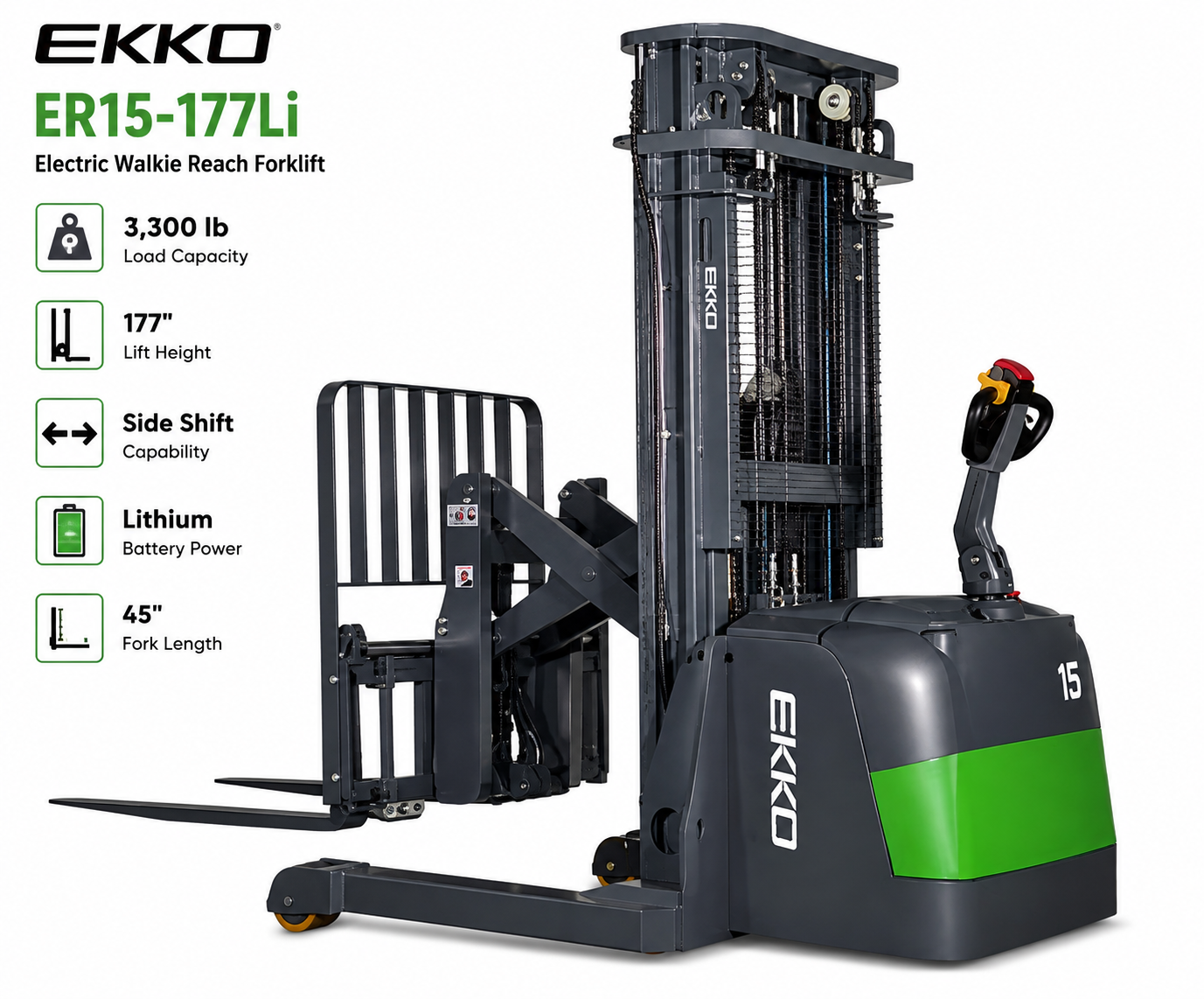

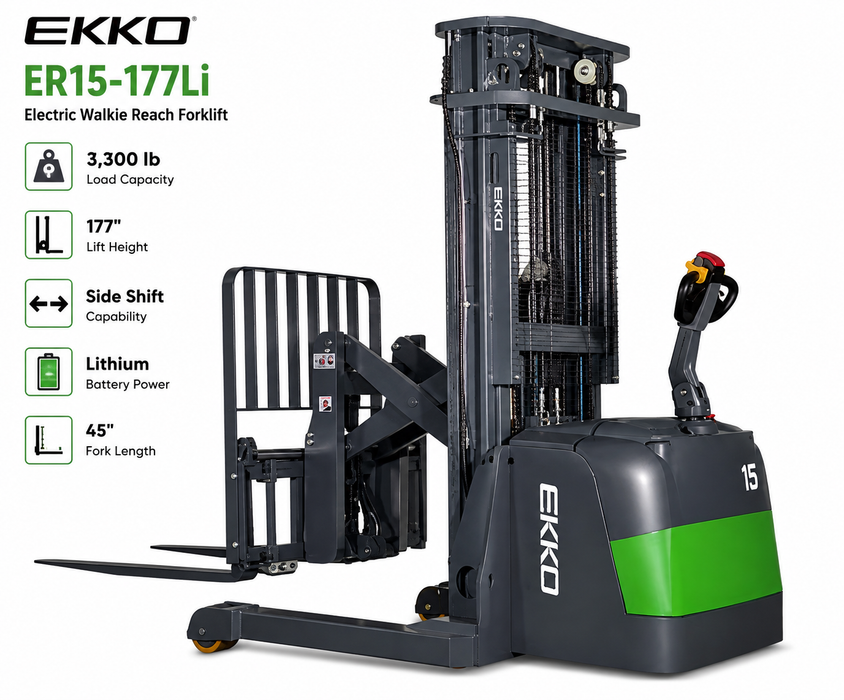

EKKO ER15-177Li Electric Walkie Reach Forklift | 3,300 lb Capacity | 177” Lift | Side Shift

**FREE SHIPPING | 3 YEAR WARRANTY | AUTHORIZED ONLINE DEALER**

Description

The EKKO ER15-177Li Electric Walkie Reach Forklift is professional material handling equipment designed for warehouses, distribution centers, and industrial facilities. Features a 3,300 lb load capacity, 177” lift height, 45” forks, and side-shift capability for efficient pallet handling and high-rack applications.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

Features

• Side Shift
• Tilt
• Free Lift
• Curtis Instrument Controller
• EPS (electronic power steering)
• AC Drive Motor
• 24V/200Ah Lithium Battery
• Polyurethane Wheels
• Ergonomic Handle and Controls
• Lift Control Valve
• Steel Construction
• Robotic Welding
• Charger Included
• Batteries Included

Specifications

ER15-138Li / ER15-177Li / ER15-189Li / ER15-216Li

• Lift: Electric
• Drive: Electric
• Load capacity: 3,300 lbs
• Load center distance: 24”
• Lifting height: 138” / 177” / 189” / 216”
• Side Shift: Yes
• Lowered mast height: 92.9” / 82.3” / 86.2” / 89”
• Overall length: 86.6”
• Over width (body/legs): 32.3”/59.1”
• Fork size (LxWxT): 45.3” x 3.9” x 1.38”
• Fork width: 32.2”
• Reach Distance: 19.7”
• Turning radius: 63.4”
• Charger: 24V/50A
• AC Driving Motor: 1.5 kW
• EPS steering motor: AC speed control
• Lifting motor: 4.5 kW
• Battery: 24V/200Ah Lithium
• Service Weight: 3,780 lbs. / 4,565 lbs. / 4,590 lbs. / 4,700 lbs.
