EKKO 45” Fork Walkie Reach Truck | 177” Lift 3300 lb Load Cap. and Side Shift Capability | ER15-177Lii

FREE SHIPPING | 3 YEAR WARRANTY | AUTHORIZED ONLINE DEALER

Description

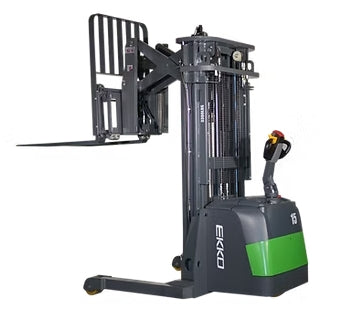

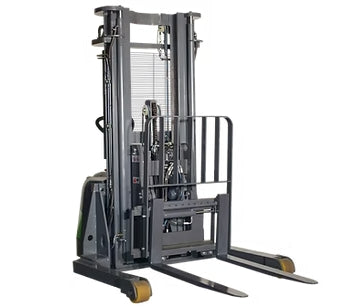

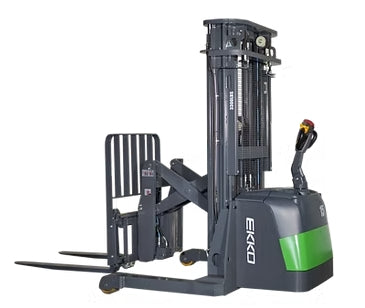

The EKKO ER15-177LI Walkie Reach Truck is designed with the combination of the versatility of a forklift, reach truck, and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

Features

• Side Shift
• Tilt
• Free Lift
• Curtis Instrument Controller
• EPS (electronic power steering)
• AC Drive Motor
• 24V/200Ah Lithium Battery
• Polyurethane Wheels

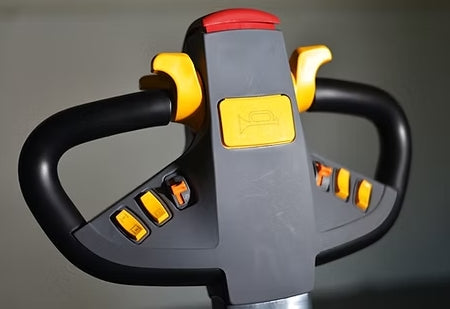

• Ergonomic Handle and Controls
• Lift Control Valve
• Steel Construction
• Robotic Welding
• Charger Included
• Batteries Included

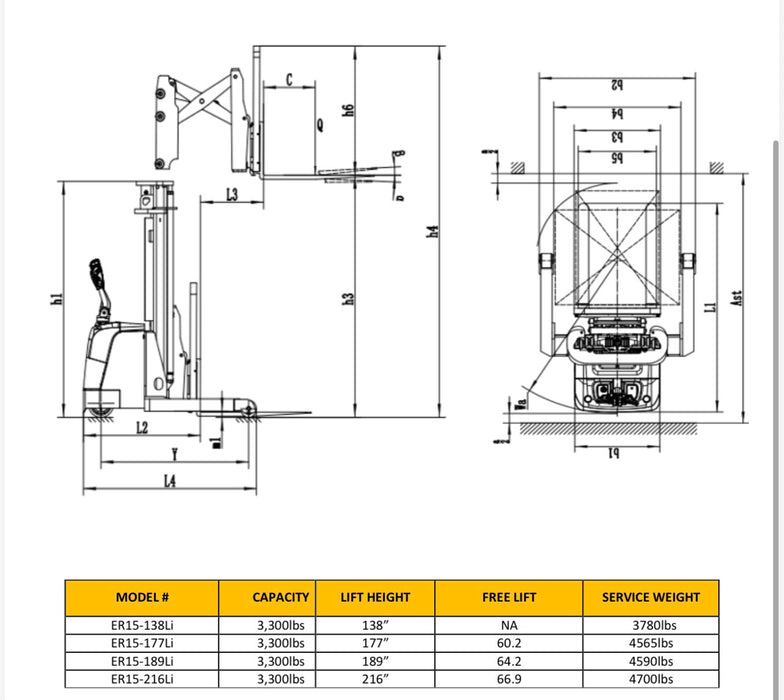

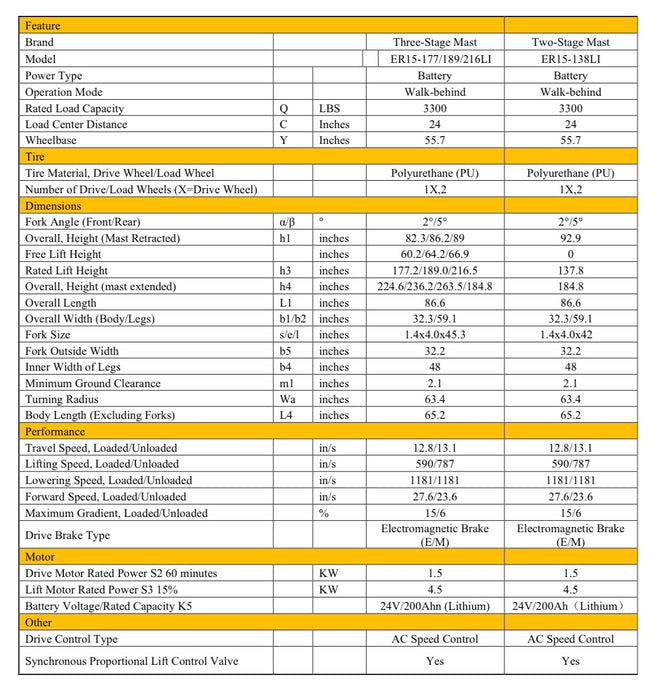

Specifications

ER15-138Li / ER15-177Li / ER15-189Li / ER15-216Li

• Lift: Electric
• Drive: Electric
• Load capacity: 3,300 lbs
• Load center distance: 24”
• Lifting height: 138” / 177” / 189” / 216”
• Side Shift: Yes
• Lowered mast height: 92.9” / 82.3” / 86.2” / 89”
• Overall length: 86.6”
• Over width (body/legs): 32.3”/59.1”
• Fork size (LxWxT): 45.3” x 3.9” x 1.38”
• Fork width: 32.2”
• Reach Distance: 19.7”
• Turning radius: 63.4”
• Charger: 24V/50A
• AC Driving Motor: 1.5 kW
• EPS steering motor: AC speed control
• Lifting motor: 4.5 kW
• Battery: 24V/200Ah Lithium
• Service Weight: 3,780 lbs. / 4,565 lbs. / 4,590 lbs. / 4,700 lbs.
