EB-505A Woodworking Edge Bander + Dust Collector I Single Phase 110v
Save $200.00
$2,000.00
$1,800.00
Sales Discounted Through 12/24/2025!

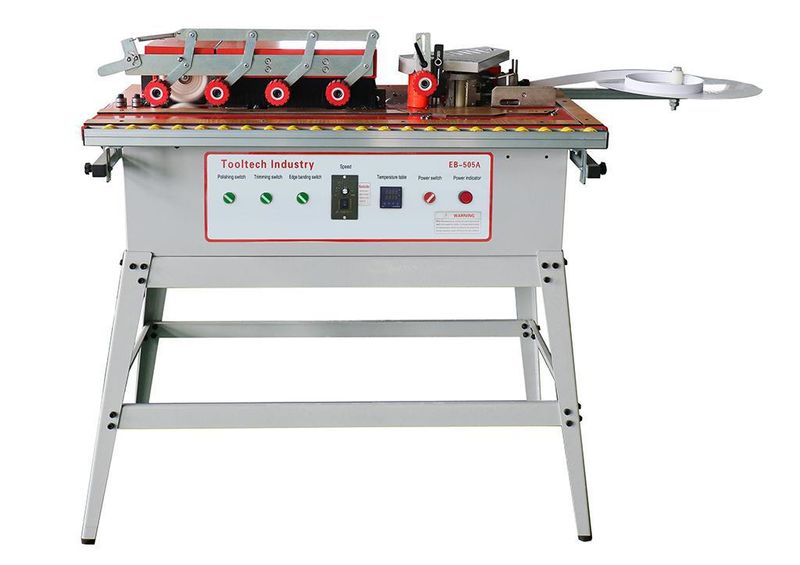

Experience the ease of quality edge banding precision with Tooltech’s EB-505A Woodworking Edge Bander and Dust Collector. The EB-505A edge bander model is equipped with its own Trimmer, Buffer, and a Dust Collector conveniently located below the trimmer for easy clean-up. Its notable features include a Microcomputer Meter Control, with feed and edge banding speed adjustments.
It offers automatic tape breaking and end cutting (via alloy cutter), including double-sided trimming and polishing on both upper + lower sides, greatly improving work efficiency.
Utilizing medium heat glue pellets, its large pot capacity allows for greater workflow and seamless productivity.
Utilizing medium heat glue pellets, its large pot capacity allows for greater workflow and seamless productivity.
Specifications:
Voltage: 110VPhase: Single-PhasePower: 2,000WHeating Time: 5-8min.Glue Capacity: 1,000mlEdge-Sealing Height: 7-60mmEdge-Sealing Speed: 0-6m/min.Edge Band Thickness: 0.3-3 mmTrimming Thickness: 0-4 mmBelt-Breaking Mode: Foot PedalNet Weight: 175lbs.Size: 40 x 22 x 27Medium Temperature Glue: adjust to 150-170ºC
Features:
Microcomputer Meter ControlAutomatic Tape Breaking and end cuttingDouble-Sided Trimming + Polishing (top + bottom)Linear Trimmer + CutterAble to trim redundant edge-sealing band Equipped with Dust Collector
- Large pot capacity
- Glue height 6cm
- Aluminum transmission wheels
- Thick sheet metal shell
- Alloy cutter
- Anti-scratch exterior coating
