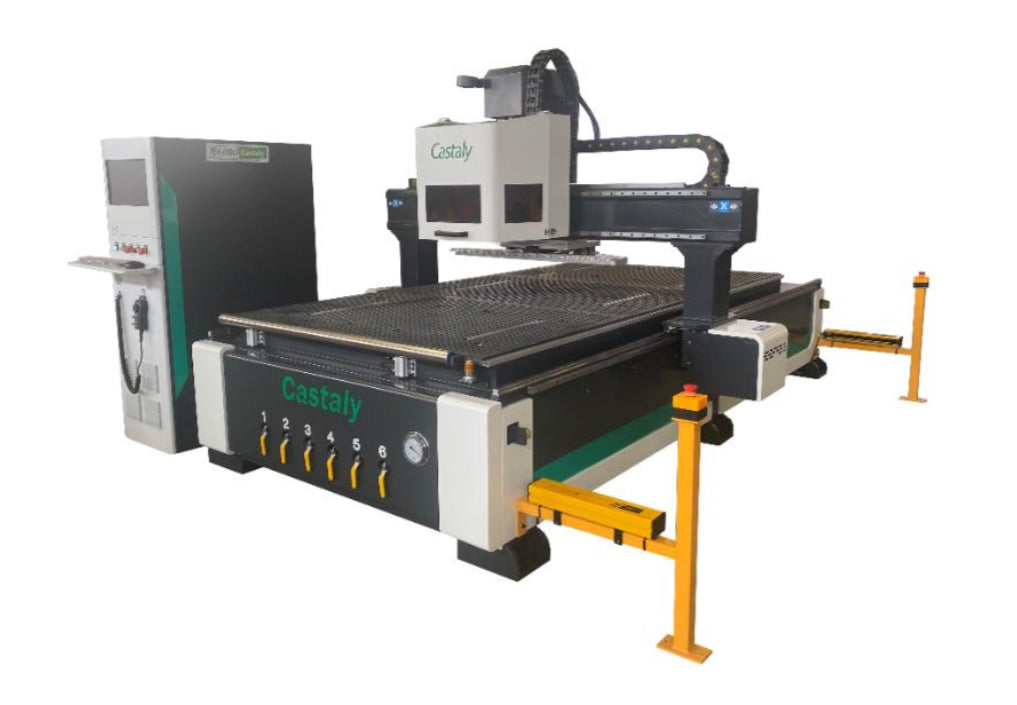

CNC Router (5” x 10”) RAPID-510-12LN with Drill Bank

Overview Descriptions

• 5’ x 10’ (1,525 mm x 3,050 mm) Phenolic Matrix Grid Vacuum Table with

(6) independent zones and 8 location pins

• 12.8 HP (9.6 kW) Air-cooled Router Spindle, 6,000-24,000 rpm/min

• Industrial Grade "SYNTEC" CNC controller with 8" color LED monitor with full

Keyboard

• 12-position Linear ATC that moves with the gantry

• Yaskawa 850w Servo drives and motors with Shimpo gear boxes.

• HSD Boring Head with (9) mandrels in 5 x 5 L-shaped configuration (OPTION)

• Travels via 1” HWIN linear rails with pre-loaded bearings.

• Driven by dual inclined-toothed helical rack and pinion rails and motors.

• Z-axis movement via 1” diameter ball & screw with preloaded bearings

• 2,350 IPM max. Traverse speed; 1,100 IPM max. working speed.

Features:


• Automatic pneumatic pushed 12 linear type auto tool changer under the gantry for increased productivity.

• All “servo motor” driving system: All axis are driven by brush-less type, high torque AC servo motors.
•
CNC controller is setup to accept standard G-code programming formats along with on board conversational
  applications.

• Optional CAD/CAM system can create and edit part programs then send to machine for easy cutting. DXF files can
  be imported, modified and edited from here to create a G-code.

• DNC is no longer required as the PC directly stores all part programs in a text editable file.

• Machine designed ready for 3-D cutting usage and superior performance.

• Moving gantry construction for space saving.

• The rigid steel frame construction has been stress relieved prior to finish machining to provide repeat-ability and
  accuracy.
• Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool changes.

• Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to ensure maximum
  rapid traverse and precision.

• The X & Y axis are equipped with a precision rack & pinion driving system.

• The Z axis utilizes a ball screw assembly complete with the pre-loaded and ground screw for long life and
  optimum accuracy.

• Special design 6 zone vacuum table surface for powerful hold down.

Machine Bed/Base:

The Welded & Structurally Engineered machine base provides a solid foundation for superior cut quality;

the entire frame is stress relieved and heat treated.

The Moving Gantry Bridge travels in the X- & Y-axis via inclined helical rack & pinion on 1" (25 mm) thick,

hardened & precision ground "HIWIN" rectangle linear guide ways with preloaded bearings, giving extra

smooth movement, high speed traverse, and accurate cutting.

The Tool Gantry Movement for the vertical Z-axis travels on a 1" (25.4 mm) diameter "HIWIN" precision

ball-screw with preloaded bearings for smooth & consistent movement.

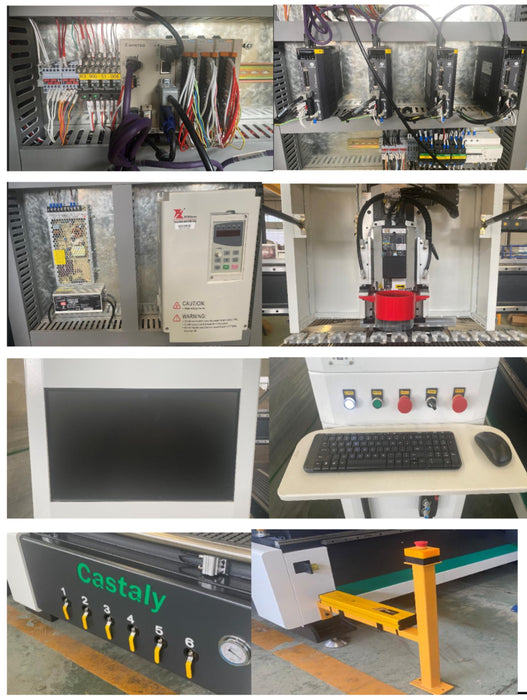

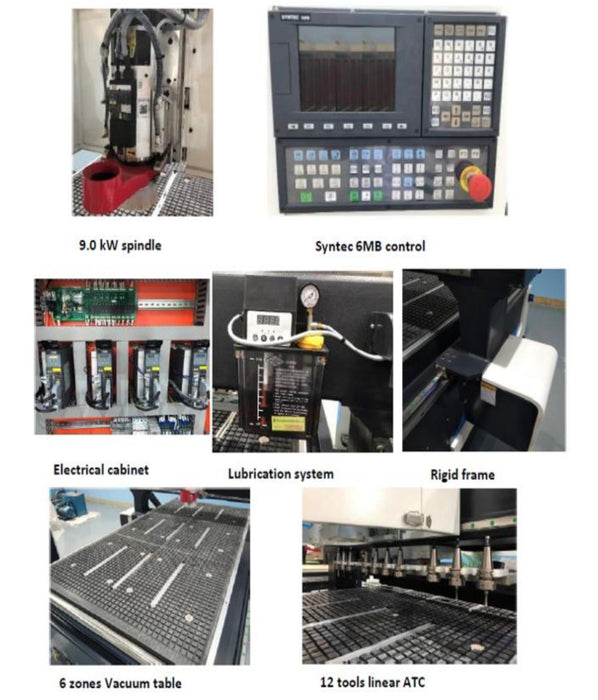

CNC Control & Operator Interface:

Industrial Grade "SYNTEC" CNC controller with 19" color LED monitor; includes integrating ARM11

processor, RAM 128M, CPU Clock, Speed 600M, Flash 256M, WINCE operating system.

Up to (3) simultaneously controlled axes with, helical interpolation, tool offset, length compensation &

backlash compensation, AQE compensation, LAN communication, 2-way transmission between the

system and PC, Front USB interface. Compatible with virtually all CAD/CAM programming software’s.

Working Table:

61" (1,524 mm) x 120" (4,000 mm) x 7.75" (197 mm) phenolic matrix grid table.

(6) Independent vacuum zones

Axes Travel Range & Feed Speed:

Max Traverse Speeds: 2,350 IPM

Max Working Speed: 1,100 IPM.

"Yaskawa" AC 850w Servo drives & motors power all axes’ movements.

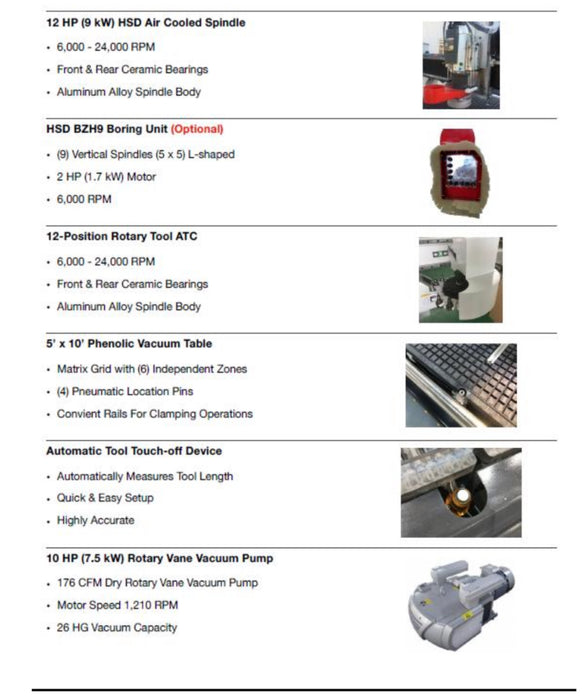

Routing & Machining:

(1) 12 HP (9 kW) Air cooled Router Spindle with: ISO 30 Adaptor, 6,000 to 24,000 RPM,

(1) 12-Position Rotary ATC (automatic tool changer), moves with the bridge gantry

(1) Boring Head: "HSD" head with (9) Spindles (5 +5) in "L"- Shaped configuration

Included Features

10 HP Dry Rotary Vacuum Pump.

11 KW Inverter.

(12) ISO 30 Tool Holders & Collets

Automatic lubrication device with filter

Automatic tool of set device

Schneider electronic components.

Standard MPG hand wheel

Optional (not included):

CAD/CAM Drawing Software.

Machine Specs:

Machine power supply is wired for 220 Volts, 60 Cy, 3-Phase, 53 Amps.

Machine weighs approx. 5000 lbs.

Machine air consumption at 90 PSI is approx. 15 CFM.

The Rapid-510-12LN is an Industrial Grade CNC Router with a Rotary-ATC that will get the job done!
