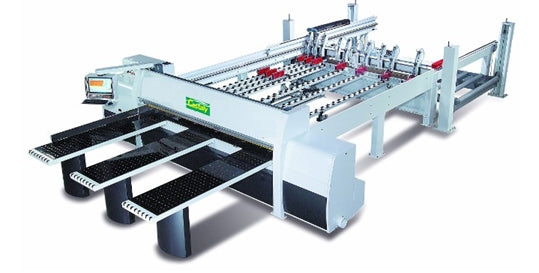

CNC Panel Beam Saw 10’

by Castaly
$61,999.00

Features:

  • Cutting large panels quickly and efficiently is a necessity in today’s competitive markets.
  • The computer panel saw with gripper will bring you the capacity to cut panels quickly, easily and
    accurately.
  • The computer panel saw promises dramatic productivity gains with these features: Advanced computer
    control, high efficiency automatic gripper feed system, reduced cycle time, and prefect square cutting
    accuracy, all at an economical price.
  • The automatic gripper feed system is driven by a super performance 800W AC servo motor for accuracy
    within 0.001" and 16 ~ 130 FPM high feeding performance.
  • Great select memory capacity permitting for single or multiple sizes for groups of quantity cutting.
  • The controller can be online at the office with a personal computer through a RS-232 interface to download cutting information. Also, the setting data can be printed out.
  • Employed with touch control screen for convenient operations, eliminating the problem of dust
    contamination.
  • Featuring a self diagnostic function provided with comprehensive probable cause of trouble and detailed
    troubleshooting guide, allowing the operator to correct problems easily.
  • Superior software system is designed for human and machine interface.
  • The base is welded from cold rolling steel plate, offers rugged construction.
  • Automatic saw stroke enables to only cut the panel actuary length and returns right away, this reduces
    considerable cycle time.
  • The saw carriage runs with bronze wheel, which is CNC lathe precision machined or accurate
    concentrically producing fine smooth surface cut.
  • The guide rods, hard chrome plated, provide rigid support for saw carriage. The ripping accuracy is
    guaranteed.
  • The machine employs an advanced, high performance limit switch, its highly sensitive performance
    ensures extremely accurate saw stroke control.
  • The saw carriage feed is driven by rugged wire.
  • The scoring blade may be laterally adjusted for a burr-free cut or vertically adjusted for proper depth of
    cut and to compensate for blade wear.
  • A 2 HP AC motor drives the saw carriage with variable speeds changed by frequency control 16 ~ 100
    FPM, and retract speeds is 100 FPM.
  • The table surfaces are covered with Bakelite to prevent scratching of the panel during feeding.
  • Panels feed through the linear motion guide for greater accuracy and less effort.

Options:

  • TS-PFT AIR FLOATING TABLE $3,990.00
  • TS-P3SB EXTRA THIRD SCORING JUMP BLADE FOR
    LAMINATED PANEL $4,290.00
  • PC BASE CONTROL (Optional WITH OPTIMIZE SOFTWARE)
    $4,890.00
