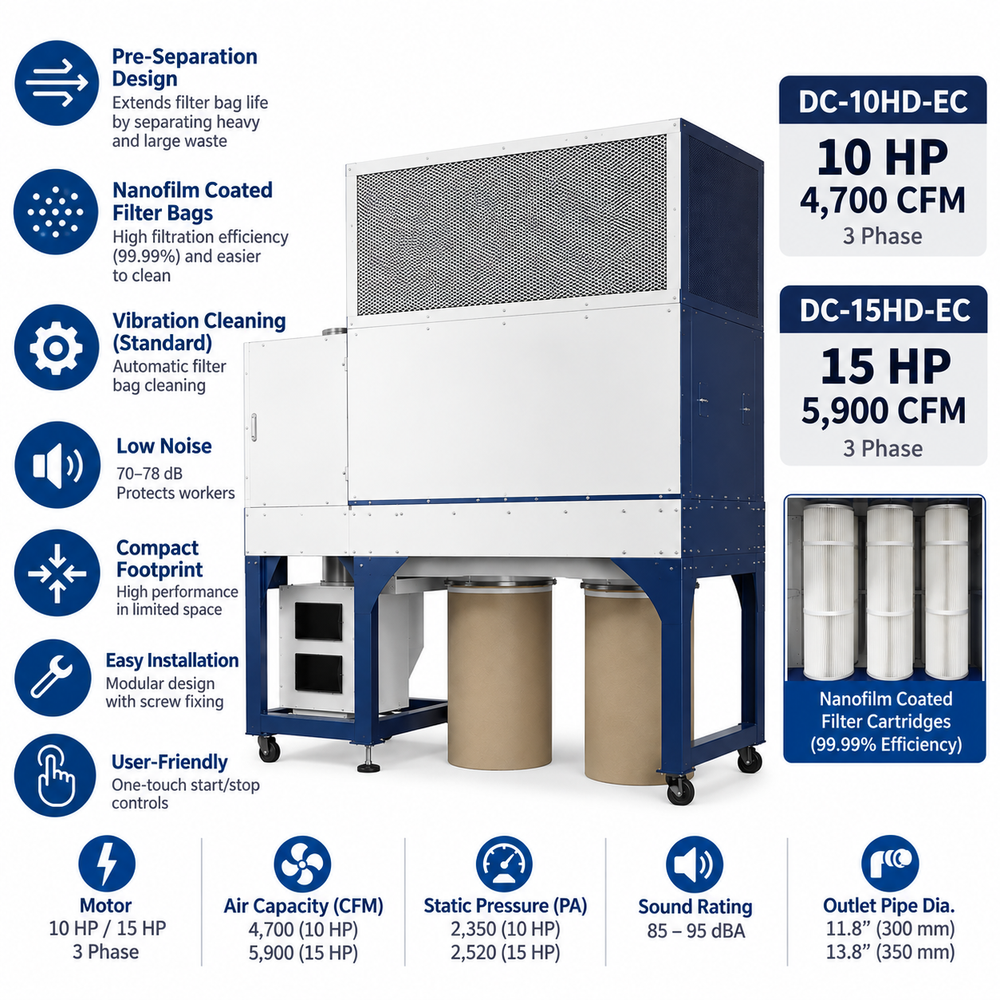

Castaly Industrial Dust Collector – 10 HP / 15 HP, 4,700–5,900 CFM | DC-HD-EC Series
Industrial Dust Collection for High-Production Shops
The Castaly DC-HD-EC Series Industrial Dust Collector is designed for demanding woodworking and manufacturing environments requiring powerful airflow, efficient filtration, and reliable continuous dust collection.
Available in 10 HP and 15 HP configurations, the DC-HD-EC Series delivers up to 5,900 CFM of airflow while maintaining a compact footprint suitable for indoor installations.
FEATURES
Pre-Separation Design
Aerodynamic pre-separation helps separate heavy and large waste before it reaches the filter bags, helping extend filter life.
Nanofilm-Coated Filter Bags
Polyester filter bags feature a Nanofilm coating designed to provide up to 99.99% filtration efficiency while making the filters easier to clean.
Standard Vibration Cleaning System
An integrated vibration/shaking system helps clean the filter bags and reduce dust buildup inside the filtration system.
Heavy-Duty Industrial Motor
Totally enclosed industrial motors provide strong suction performance and are designed for extended service life.
High-Efficiency Steel Impeller
An extra-large radial-fin steel impeller supports efficient, high-volume airflow.
Compact Design
Designed to deliver high dust-collection performance while minimizing the amount of valuable shop floor space required.
Easy Installation
Modular construction simplifies installation and assembly.
User-Friendly Controls
Simple one-touch start/stop controls reduce operating complexity.
Movable Base
Roller feet with locks make positioning and setup easier.
SPECIFICATIONS
- MODELS: DC-10HD-EC | DC-15HD-EC
- Motor: 10 HP, 3 Phase | 15 HP, 3 Phase
- Air Capacity: 4,700 CFM | 5,900 CFM
- Static Pressure: 2,350 Pa | 2,520 Pa
- Sound Rating: 85–95 dBA | 85–95 dBA
- Outlet Diameter: 11.8” (300 mm) | 13.8” (350 mm)
- Top Filter Bags: 24 | 28
- Top Filter Bag Size: 8.67” × 63” | 8.67” × 78.8”
- Collection Bags: 2 | 3
- Collection Bag Size: 21.7” × 33.5” | 21.7” × 33.5”
- Machine Dimensions:116” × 43” × 104” | 131” × 43” × 114”
- Net Weight: 1,430 lbs | 1,540 lbs
- Available Models:
DC-10HD-EC
10 HP • 3 Phase • 4,700 CFM
DC-15HD-EC
15 HP • 3 Phase • 5,900 CFM
