**FREE SHIPPING**

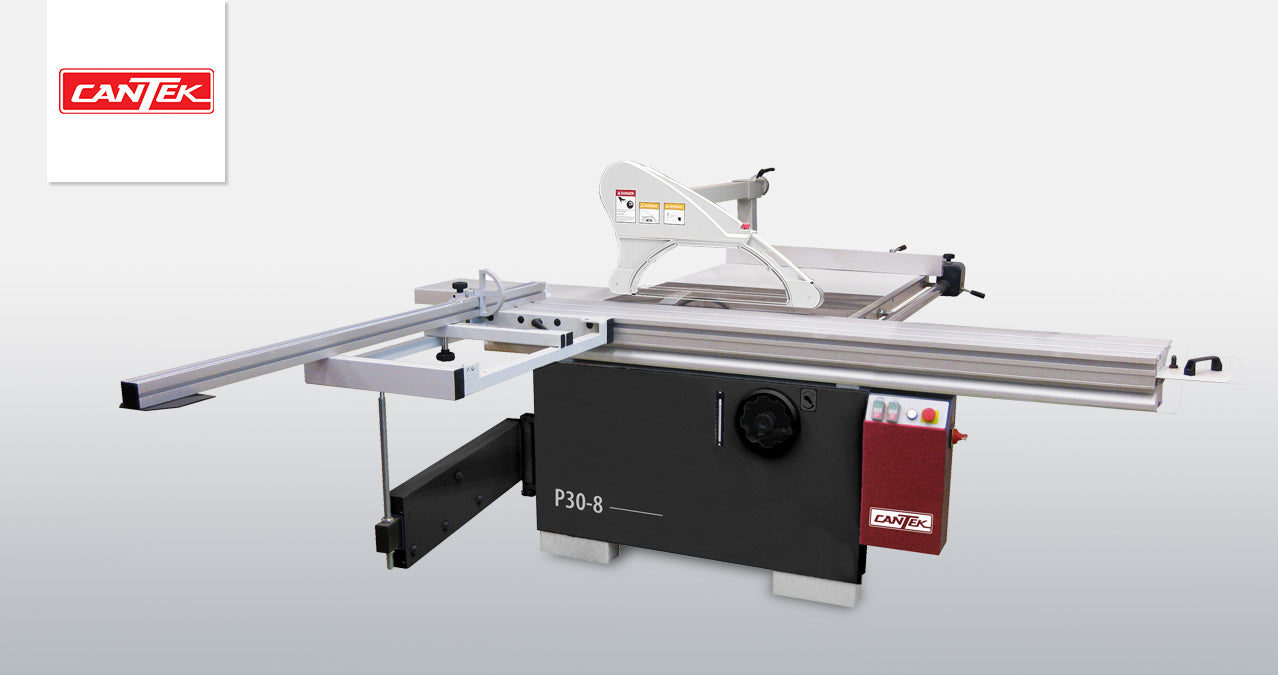

CANTEK P30 8′ SLIDING TABLE SAW W/ SCORING Powerful features in a small footprint sliding panel saw.
KEY FEATURES
-

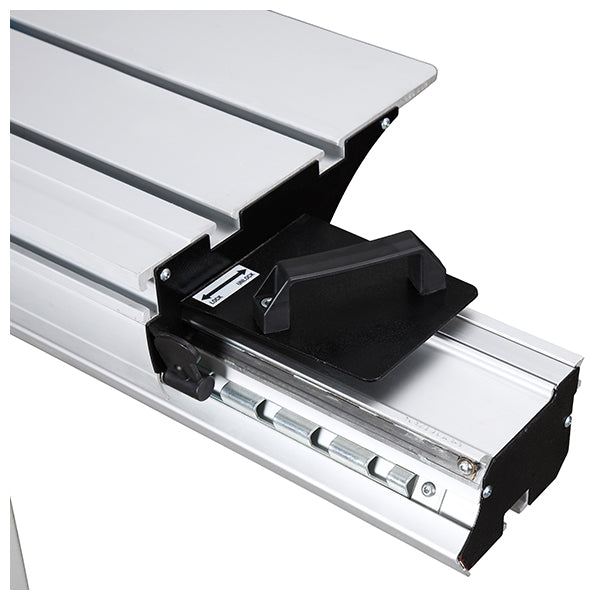

- Precision anodized aluminum sliding table with ball bearing guide system for smooth table movement.
- Powerful 5 HP main motor with ¾ HP scoring motor.
- Heavy-duty cast-iron rip fence with 51″ cutting capacity.

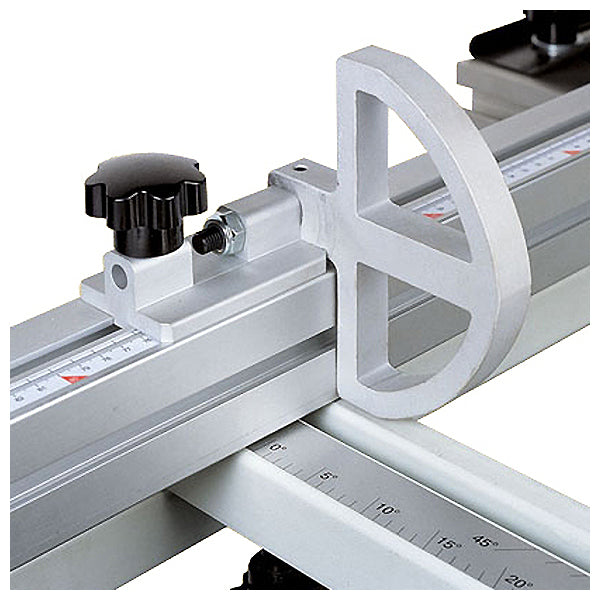

- Aluminum crosscut miter fence with (2) flip stops.
- Manual rise/fall of the main saw blade.

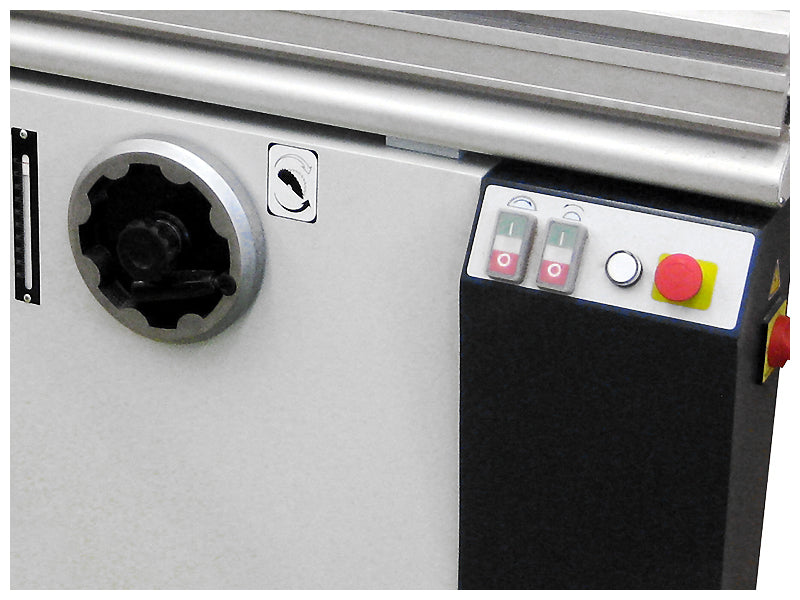

- Manual tilting of the saw blades with angle indicator conveniently located by adjustment handwheel.

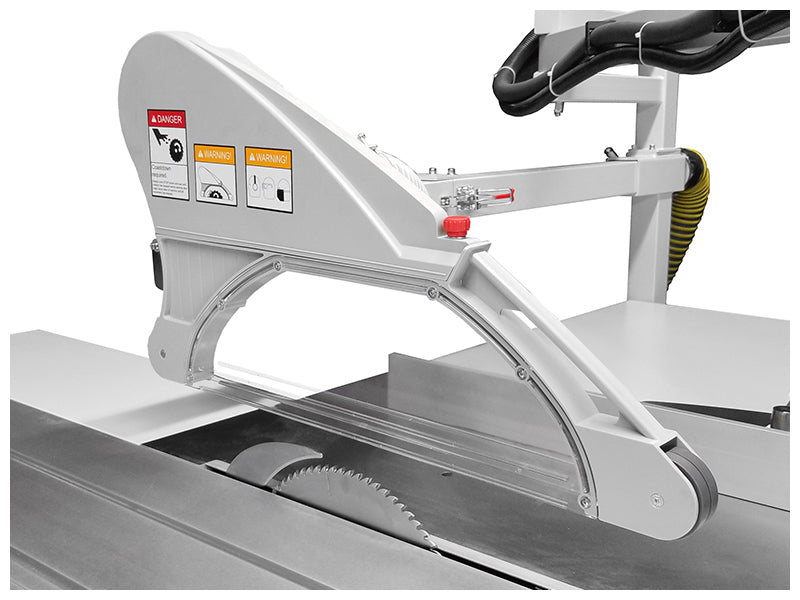

- Overarm blade guard with built-in dust port.
- Solid cast iron main table, which is ground and polished.
- Heavy-duty outrigger for strong support of workpiece during cutting operations.

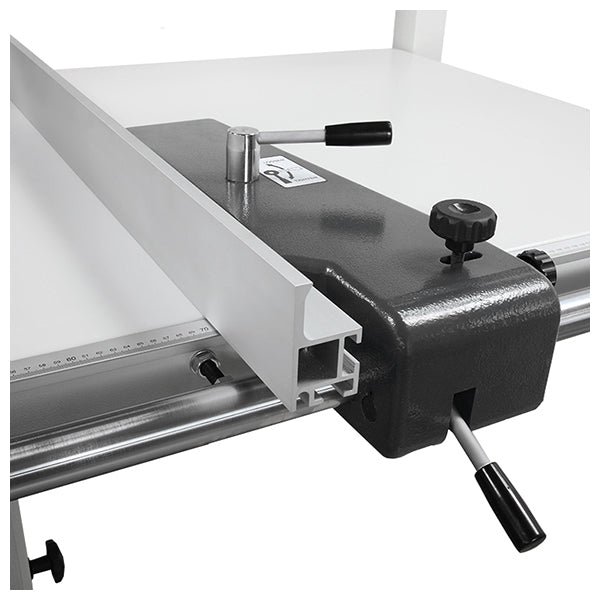

- Solid rip fence with manual fine adjustment and locking lever.
- Easy to access external scoring adjustment.
- Great for cutting 4’ x 8’ panels
- Extension table at side and back of the main table.
- Optional Equipment Included:
- Eccentric hold-down clamp.
- CE Overarm Guard with Dust Port.
- Wedge for Solid Wood Ripping.
- Comes with a set of sawblades: (1) 12” (300mm) diameter main blade; (1) scoring blade
DESCRIPTION

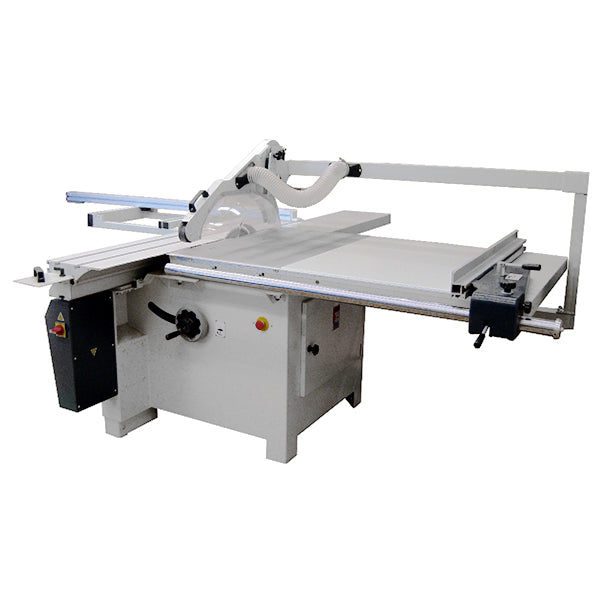

The Cantek P30 8′ Sliding Table Saw is the ideal solution for customers looking for the precision and convenience of a sliding table saw but have limited floor space and smaller cutting requirements. The P30 has a precision sliding table which runs on ball bearings and hardened steel guide strips. It is equipped with individual motors for the main saw blade (5 HP) and scoring blade (¾ HP). The blade height and tilt is manually adjusted by means of individual handwheels. The angle of the blade is displayed by a linear scale for added operator convenience. The rip fence runs on a round hardened rail and is manually adjusted up to 51”. Equipped with a crosscut miter fence and (2) flip stops
SPECIFICATIONS
- Saw motor: 5HP (1PH)
- Sliding table dimension:102.4"x14.2"
- Cast iron table dimension: 21. ½" x 35.¼”
- Extension table (rear): 18” x 17. ½"
- Extension table (front): 12. ½" x 32. ½”
- Table size: 39. ½"x 68"
- Max. main saw blade diameter: 305mm (12”)
- Main saw bore: 30mm
- Max. cutting height at 90°: (355mm) 105mm 3.54”
- Max. cutting height at 45°: (355mm) 70mm 2.48”
- Main motor power: 5 HP
- Main blade speed: 4000 RPM
- Scoring saw blade: 120 mm
- Scoring saw blade bore: 20 mm
- Scoring blade motor: 3/4 HP
- Scoring blade speed: 8000 RPM
- Max rip cutting width: 51" (1300mm)
- Cutting width adjustment: Manual
- Blade tilting adjustment: Manual (0°~45°)
- Main saw height adjustment: Manual
- Scoring saw adjustment: Manual
- Saw guard: CE Guard Included
- Dust collection ports: (1) 4.7"/ (1) 2.5"
- Machine total weight: 984 lbs.
-
Shipping weight: 1151 lbs
- shipping dimensions: 83” x 46” x 44”
- Electrics:
- 230/1/60 = 34.90 Full Load Amps
