FREE Shipping in the USA!
Why Cantek 4 Side Planer Moulder M412?

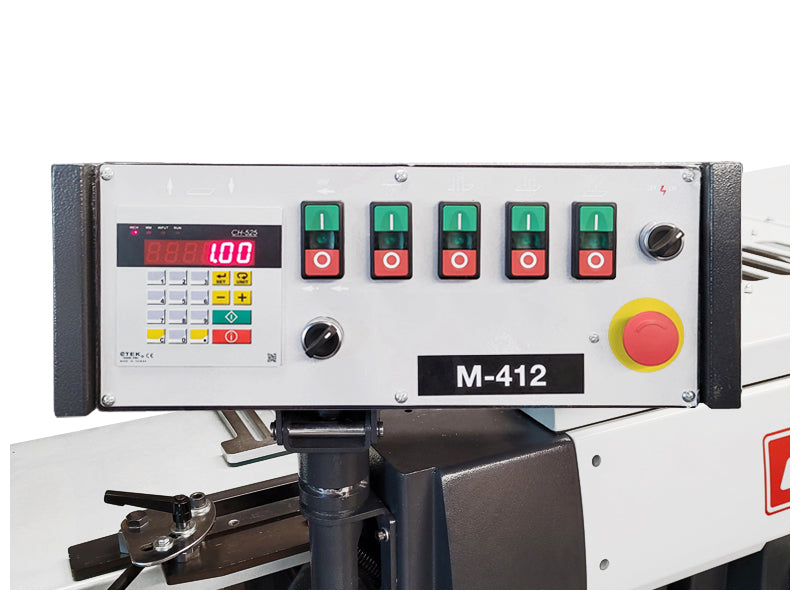

Centralized Control Panel
- All motion controls of the machine are centralized on the control panel, located at the left side of the machine for easy access and operation convenience.
- Each cutterhead is individually controlled on the control panel

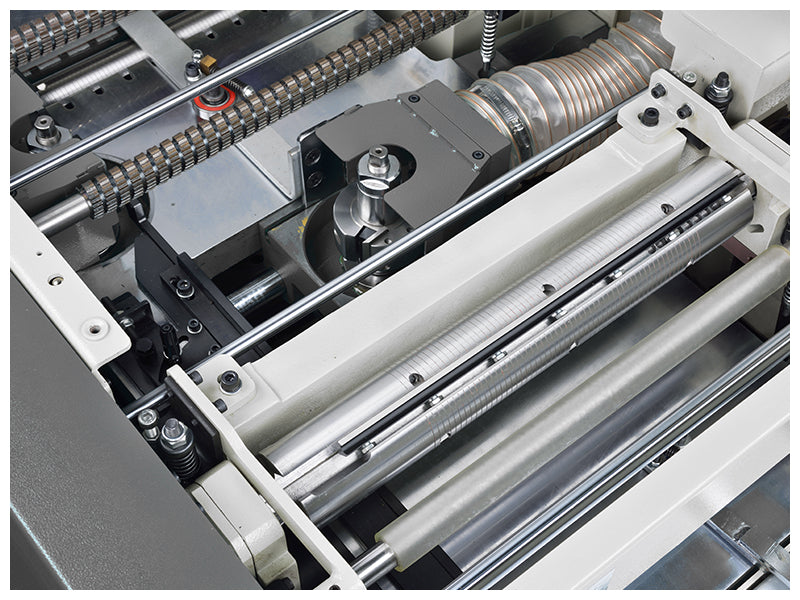

Top Horizontal Spindle
- Equipped with two planer knives and two pattern knives for planing and moulding operations at a time.
Left Vertical Spindle Adjustment
- The left vertical spindle can be adjusted in forward and backward direction to suit workpiece width. A mechanical meter is equipped for accurate reading of the spindle adjustment amount.
Table Adjustment
- The entire table can be raised or lowered by turning a handwheel, equipped with a mechanical meter for accurate reading of the table adjustment.
Variable Feed Speed
-
- Variable feed speed is achieved through a disco type variable speed unit speed combined with gear reducer, making this moulder ideal for cutting soft and hard wood material.
- Variable feed speed range is 11-52 feet per minute
Key Advantages:
- Allows for 4 cutting modes: single two, three and 4-side planning and moulding.
- Individual powerful motor drive for each spindle.
- High quality disco type variable feed speed unit.
- Automatic machine stop when top guard is opened.
- In feed & outfeed table extensions (optional) for firm support of large word.
- Equipped with 3 depth of cut control plates for bottom cutterhead.
- Sea-thru top guard for viewing cutterheads.
- Comes with a set of cutterheads (top/bottom/side/side)
SPECIFICATIONS
-
Planing:
- Width: 13” (330MM)
- Depth: 7/16” – 9” (12 – 230mm)
-
2-Side Planing/Moulding:
- Width: 13-5/8″” (346mm)
- Depth: 7/16” – 9” (12 – 230mm)
-
4-Side Planing/Moulding:
- Width: 0 – 12” (0 – 305mm)
- Depth: 7/16” – 4” (12 – 100mm)
-
Top Horizontal Spindle:
- Width: 17-15/16” (455mm)
- Max. planing depth: 5/16” (8mm)
- Max. moulding depth: 3/4” (19mm)
- Speed: 7000 RPM
- Cutterhead diameter: 2-7/8” (72mm)
- Motor: 7-1/2HP (5.5Kw)
-
Bottom Horizontal Spindle:
- Width: 13-5/8” (346mm)
- Max. planing depth: 1/4” (6mm)
- Max. moulding depth: 3/16″ (5mm)
- Speed: 7000 RPM
- Cutterhead diameter: 2-7/8” (72mm)
- Motor: 5HP (3.7Kw)
-
Right & Left Vertical Spindles:
- Max. cutting height: 4” (100mm)
- Max. cutting depth: 13/16” (21mm)
- Spindle diameter: 1-1/4″ (31.75mm)
- Speed: 7000 RPM
- Max. cutterhead diameter: 3-1/2” (90mm)
- Motor: 4.1HP (3Kw)
-
Table:
- Area: 1125 x 685 mm
- Elevation: 230mm
- Power Table (Raise): 120w
- Dust Hood Outlet: 101.6mm (4″)
-
Feed System:
- Speed (Variable): 11-52 ft/min.
- Motor: 1/2HP (0.375Kw)
- Machine Dimensions (LxWxH): 1485 x 1265 x 1216 mm (58.5” x 50” x 48”)
- Packing Dimensions (LxWxH): 1350 x 1140 x 1130 mm (53.5” x 45” x 44.5”)
- Net Weight: 635kgs (1400bs)
- Gross Weight: 730kgs (1610lbs)
-
Electrics
230/3/60 – 59.9 Full Load Amps
