(Glue Recommended 282.20/21)

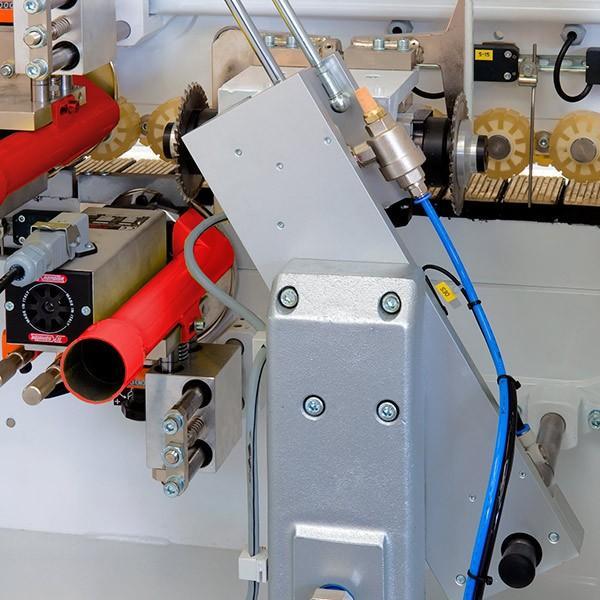

The FLEXY is a compact and high-performance edgebander. It is the most affordable model featuring a full cabin for protecting all the working groups as well as an end trim unit with HF motors and two sawblades performing the front and the rear trim cut cycles.
Panels: Particle board, plywood, MDF... from 8 to 50mm thick.
Edges: Melamine, PVC, ABS, PP, wood, formica, acrylic... 0,4 to 2mm in rolls.
Adhesives: Hot melt EVA and PUR (optional).

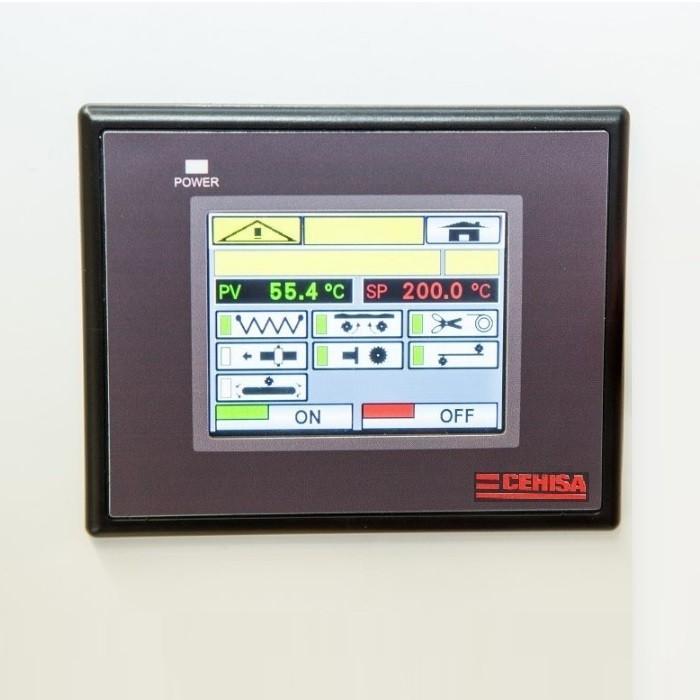

Equipment: High frecuency motors controlled by independent electronic inverters, gluepot, end trim, top & bottom trim and PLC controlled by a colour LCD touch screen.
All versions of this series allow the installation of buffing units and glue scraper as optional groups on the end of the machine.
TECHNICAL INFORMATION:
Edgebanding material Melamine, PVC, Polyester, Wood, Formica
Working speed 5.5 mts/min. (18ft/.min.)
Thickness of edgebanding 0.4 – 2mm (0.016”-0.12”) *3mm up to 23mm (7/8”)
Thickness of the panel 8 – 50 mm (0.31”-1.96”)
Min. Length of the panel 120 mm (4.72”)
Min. Width of the panel 75 mm (2.95”)
Electrical connection 3phase x 220V / 60 Hz
Amperage 10 amps
Dust extraction 4¾ “ outlet @ 1200 cfm
Compressed air connection 5 cfm @ 90 psi
Dimensions 3065x630x1370 mm (121”x 25”x 54”)
Net weight 670 kg. (1,477 lbs.)
