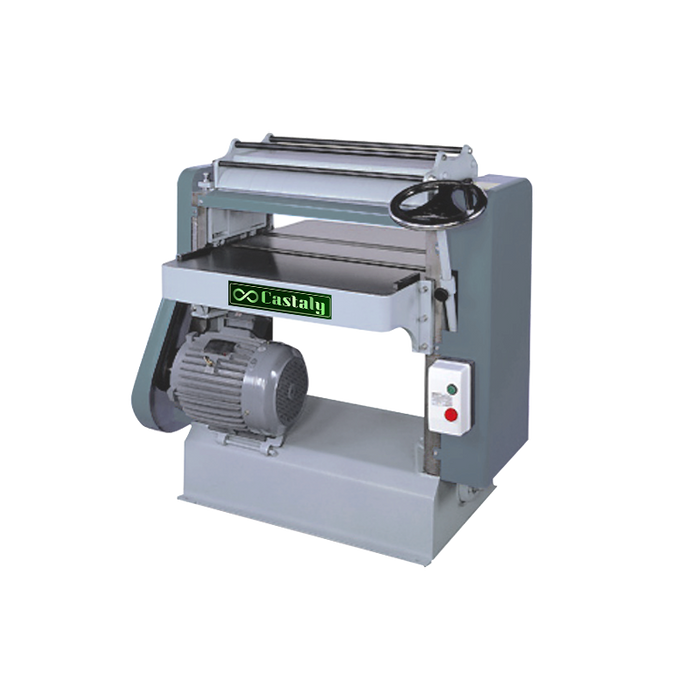

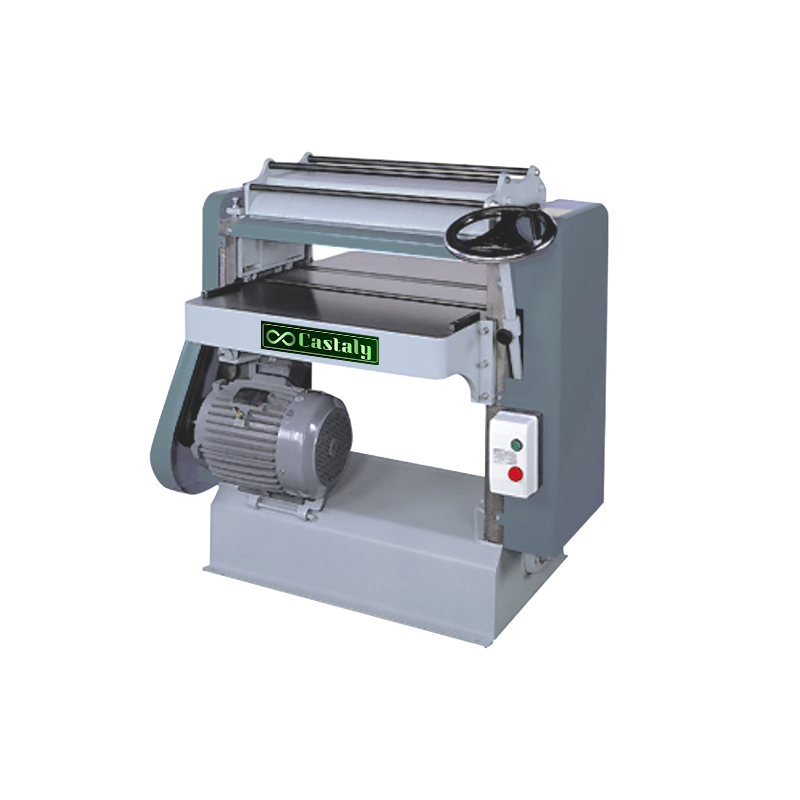

24" Industrial Planer | WP-1124
Click or scroll to zoom
Tap or pinch to zoom
24" Industrial Planer | WP-1124
24" Industrial Planer | WP-1124

24" Industrial Planer | WP-1124

by Castaly
$6,590.00

Features:

    • Heavy cast iron one-piece frame and base.
    • High quality for long period of use.
    • Sealed long-life ball bearings.
    • Heavy-duty precision ground cast iron table.
    • Easy and accurate assembly for the knives.
    • Top rollers for returning stock.
    • Table raises and lowers easily.

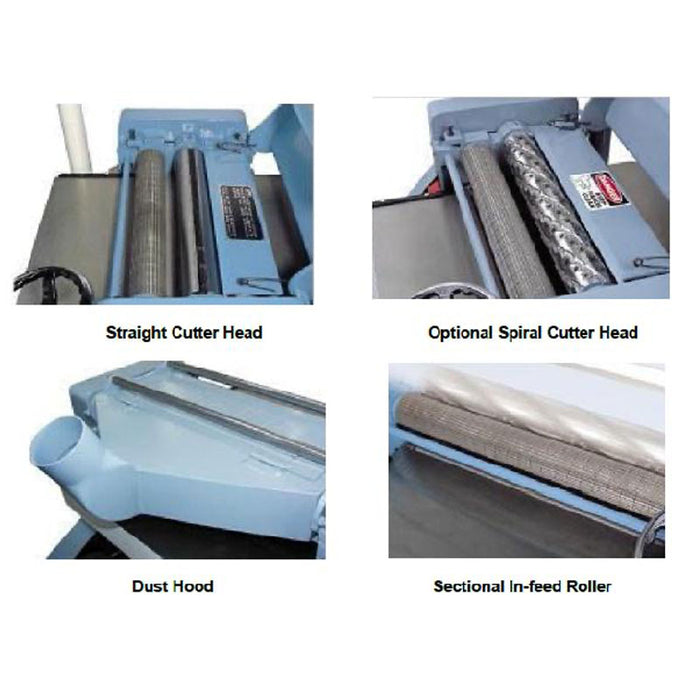

    • Precision three knives cutterhead.
    • Belt driving infeed roller with powerful griping and feeding ability.
    • 3 belts drive for full power transfer.
    • Industrial motor for durability usage.
    • Anti-kickback fingers for safety protection.
    ADD ON: BD-124P

    3PCS SET Streight 24" PLANER BLADE $139.00

    SPECIFICATIONS WP-1120/  WP-1124
    Table Area 21"x27½" /25"x 29¼
    Cutterhead 3"/ 3"
    Cutterhead Speed 5000 / 5000 RPM
    Number of Knives 3 / 3
    Feed Rollers 3" / 3"
    Table Rollers 2-3/8"/ 2-3/8"
    Range of Feed Speed 24 / 24 FPM
    Max. Depth of Cut ¼" / ¼"
    Stock Thickness Range 1/8" ~ 7-7/8"
    Max. Width of Stock 20" / 24"
    Motor Power Required 3 HP, 1 PH, 230 V 5 HP, 3 PH, 230 V
    N.W. 770 LBS 1000 LBS
    G.W. 1000 LBS 1200 LBS
