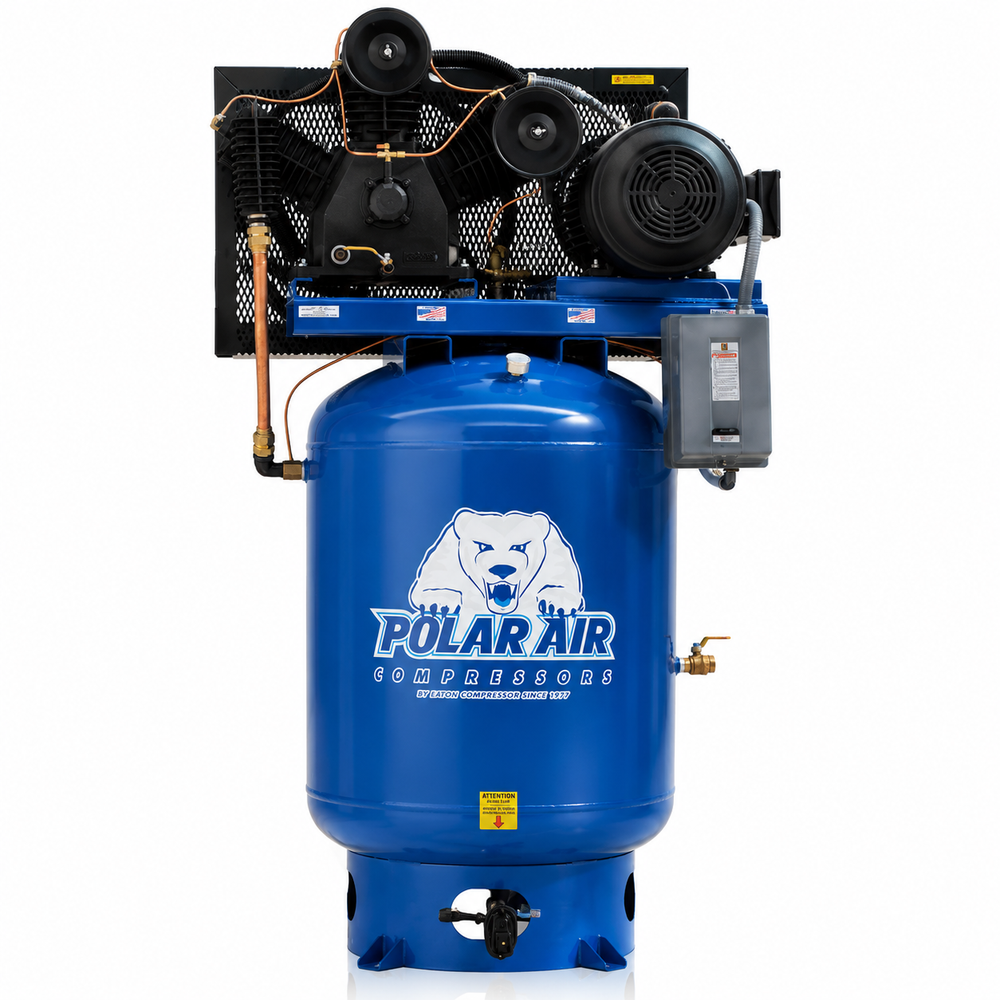

10/15 HP Air Compressor, Pressure Lubricated, 2 Stage, 3 Phase, 15HP 3 Cylinder Pump, 120 Gallon Tank, Vertical Industrial Plus
$5,999.00 USD
Each and every one of our piston air compressors is built to exacting standards, to provide years of dependable service, under demanding conditions. And because we use only high-quality brand-name components, we offer an extended five year warranty, on all of our piston air compressors.
This 10/15 HP Piston Air Compressor with 120 Gallon Tank is designed for industrial use with proper maintenance. This unit features our low RPM pump.
|
Compressor Information
|
|
| CFM | 39 CFM @ 100 PSI / 35 CFM @ 175 PSI |
| Compressor Stages | Two Stage |
| Compressor Style | Piston Electric |
| Description | 10/15HP Two Stage Air Compressor |
| Model | PP10V120Y3 |
| Pump model number | APP3Y1544T |
| Max Working PSI | 175 |
| Pump Material | Solid Cast Iron |
| Dimension: Length x Depth x Height (in inches) | 46x48x88 |
|
Motor Information
|
|
| Horse Power | 10 |
| Phase | 1 |
| Motor RPM | 1750 |
| Voltage | 208/230/380/460/575 |
|
Tank Information
|
|
| Size | 120 Gallon Vertical |
| Outlet Size | NPT 1″ |
| Drain Type | Automatic |
|
Additional Information
|
|
| Certification | UL, CSA, ASME |
| Product Weight (LBS) | 1100 |
| Warranty | 5 year Bumper to Bumper- no Pro-rated |
