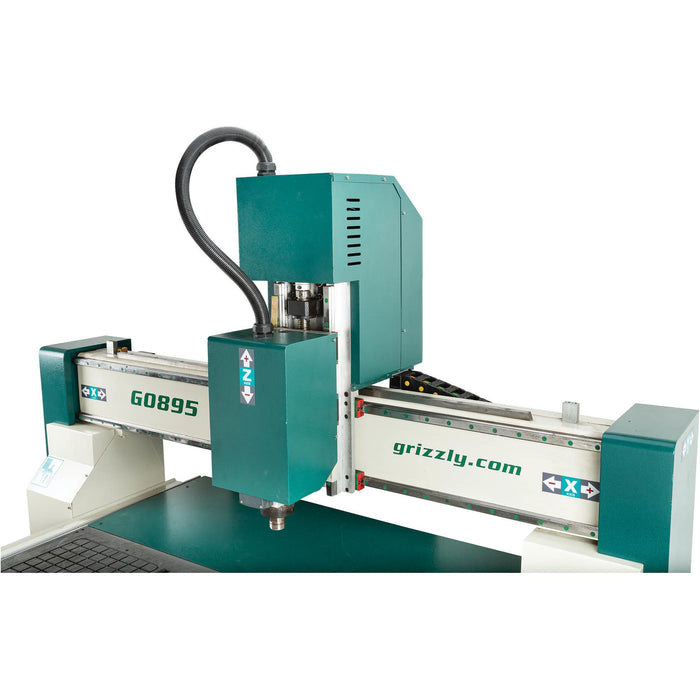

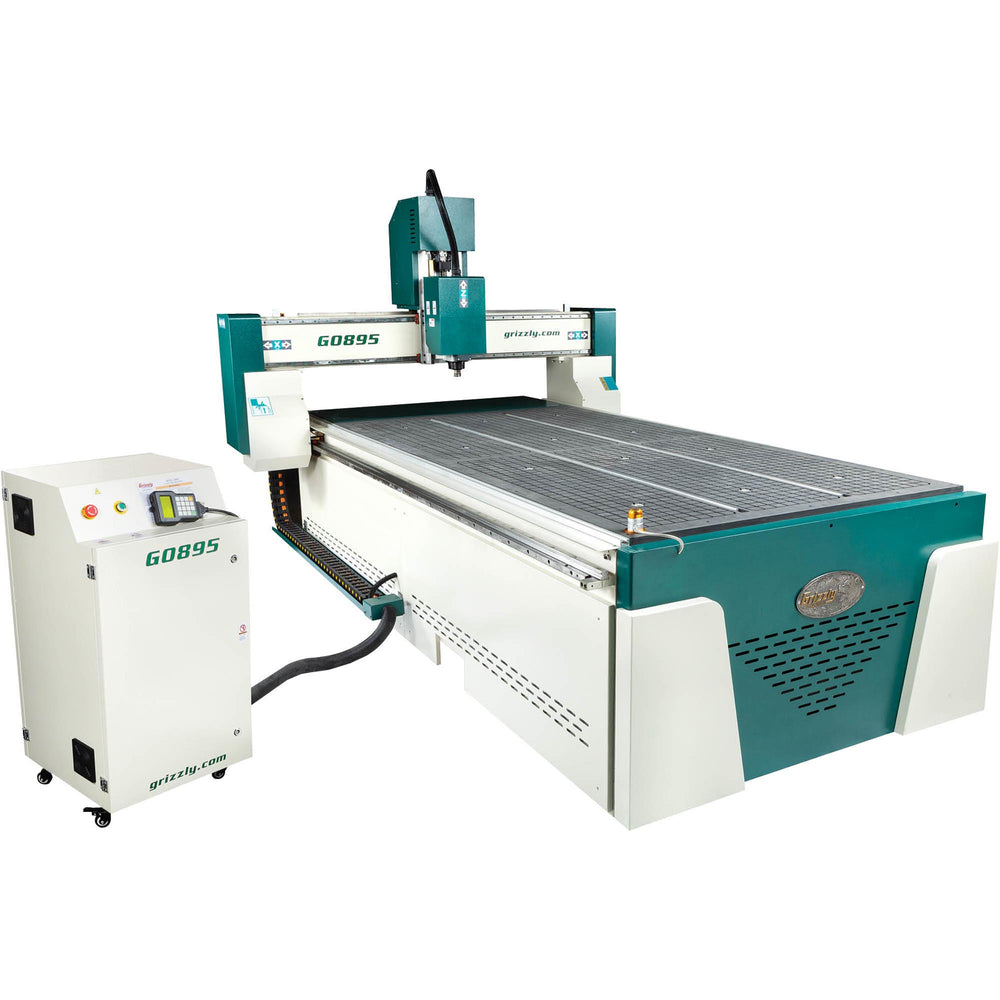

G0895 4' x 8' CNC Router

Unleash the full potential of your shop by adding this CNC.

The full-sized G0895 4' x 8' CNC router has the capacity to fit a full 4' x 8' sheet of plywood and has ample spindle clearance for those thicker workpieces such as live edge slabs.

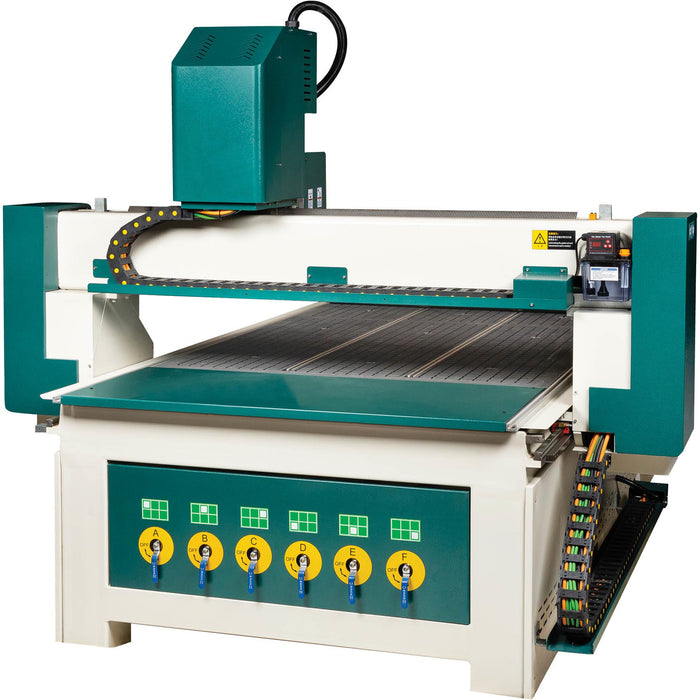

The massive work area features a 6-zone vacuum table with a 10 HP pump to secure workpieces.

Between the 6 HP, 18,000 RPM spindle, and the AC servo-controlled X- and Y- axes that approach rapid speeds of 1,600 inches per minute, this router is ready to quickly remove material.

The ER32 collet system allows for a wide array of tooling options and the included tool setter makes it simple to set them up.

An air-cooled spindle and automatic oiler system mean no extra hassle with cooling systems or maintenance schedules.

The integrated, hand-held controller allows you to store programs to its hard drive or load programs from a flash drive. It can even connect directly to you PC for file transfer and/or controller software updates.

This machine is compatible with many common CAD/CAM platforms including, but not limited to:

• Vcarve and Vcarve Pro
• Aspire
• Cut2D
• Fusion360
• Solidworks
• Type3
• Artcam
• UG
• Pro/E
• MasterCAM
• Cimatron
• Ucancam

If you are wanting a more in-depth overview of the design software used with the G0895, watch a three-part series on how to get started with CNC.

SPECIFICATIONS:

• Required power source: 220V, 3-phase, min. 30A circuit
• Spindle motor: 6 HP, 220V
• X-, Y- and Z-axis motors: AC Servo, 7.1A
• Cutting area: 51" x 98-1/2"
• Z-axis travel: 11"
• X- and Y- travel Speed: 1500 IPM
• Z- travel speed: 400 IPM
• Spindle speed: 6000-18000 RPM
• Collet Size: 1/4", 1/2"
• Collet Type: ER32
• Footprint: 122-1/2" x 56-1/2"
• Overall dimensions: 85" W x 124" D x 72" H
• Approximate shipping weight: 2535 lbs.

FEATURES:

• Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
• Yaskawa 850W Servo Motor
• Taiwan HIWIN linear guide
• German WHM rack
• 10 HP Vacuum Pump
• 6-Zone vacuum table

Please note: This item does not include CAD/CAM software.

***Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.***

Product Dimensions:

Weight . ................................................................................................................................................. 2315 lbs.

Width (side-to-side) x Depth (front-to-back) x Height . ...............................................................................85 x 124 x 72 in.

Footprint (Length x Width)..................................................................................................................................122-1/2 x 56-1/2 in.

Shipping Dimensions:

Type. .................................................................................................................................................. Wood Crate

Content. ......................................................................................................Machine and Electrical Cabinet

Weight. ............................................................................................................................................ 2535 lbs.

Length x Width x Height. ...................................................................................................................................132 x 91 x 78
