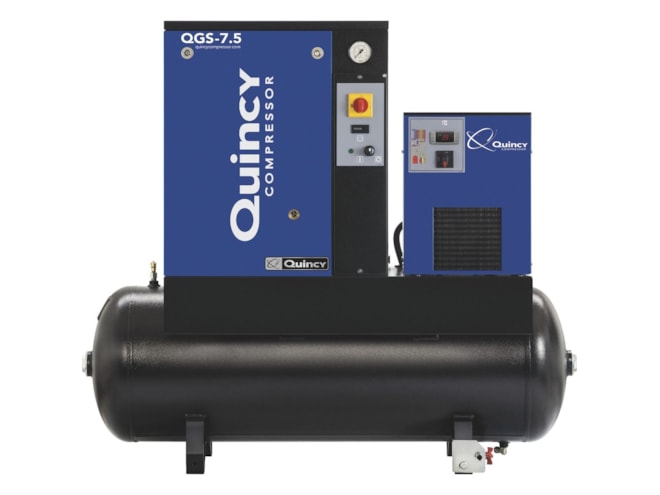

Rotary Screw Air Compressor (230V 1-phase | Quincy QGS 7.5 TMD-1 | 7.5-HP 60-Gallon | 5 Year Warranty INCLUDED + FREE Shipping in USA
Key Features & Benefits: 5 Year Warranty INCLUDED + FREE Shipping in USA
60 gallon tank mount, Integrated Air Dryer, 26.1 CFM, 150 PSI, 230/1/60
Quincy’s QGS 7.5 TMD-1 rotary screw compressor is designed for small to medium-sized applications ranging from paint booths and component assembly to long-running industrial installations. The Quincy Compressor QGS Series rotary screw air compressor is available from 5 to 150 HP and can be used in a wide range of applications. The QGS series from 5 to 30 HP are belt driven and include an auto tensioning device that provides ease of maintenance and a long belt life, while the 40 to 100 HP compressors come with a gear driven transmission. The Quincy Compressor QGS Series comes equipped with start/stop controls, an Infologic 2 controller, or an Airlogic 2 Touch controller depending on the selected horsepower. All models feature a TEFC drive motor, air-cooled after cooler, low sound enclosure, and 8,000 hours of factory-filled QuinSyn-Plus fluid, with options for a horizontal air receiver and a mounted 39°F dewpoint refrigerated air dryer.
Applications
- Oil and gas
- Construction
- Manufacturing
- HVAC
- Automotive
- Chemical
- Agriculture and mining
- Food and beverage
- Pharmaceutical
Features
- Superior Compressed Air Turn-Key Performance
- Oil injected twin screw pump provides reliable, quiet power
- Integrated Refrigerated Air Dryer
- Condenses the air to remove airborne moisture, dirt, and oil
- Continuous 100% Duty Cycle
- Runs your application efficiently 24/7
- Standard Quiet Enclosure
- Runs without the vibration & noise of piston compressors
- Ideal for most applications; 16.6 CFM at 150 PSI
- 62 dBA for reduced sound fatigue in work area installations
- Premium Synthetic Lubrication
- Rated for 8,000 hours; low oil carryover protects tools
- Start/Stop Operation
- UL and cUL control panel compliant; 36°F minimum temperature
- Long Life V-Belt Drive
- Less maintenance, reliable operation
- TEFC Electric Motor
- 1-phase unit runs on 230V power (IP 55 wash down)
- Extended 3 Year Factory Warranty Available
- Must register with Quincy & use Quincy Maintenance Kits
- True Blue 5-Year Warranty with Quincy Authorized Start Up
- Covers airend, motor, separator reservoir, cooler/heat exchanger
