X-PL-451524 Two-Stage Duplex Air Compressor, Pressure Lubricated| Saylor-Beall | 10 HP, 240 Gallon Tank, 102 CFM, 3 Phase |
1 Year Warranty INCLUDED + FREE Shipping in USA
Saylor-Beall 10 Horsepower Two-Stage Duplex Air Compressors
Saylor Beall industrial two stage industrial air compressors are built with either an electric motor or engine driven option. All Saylor-Beall reciprocating air compressors are proudly USA made and rank among the best air compressors in the industry.
Splash Lubrication vs Pressure Lubrication:
A pressure lubricated air compressor pump uses an oil pump to force lubricating oil to all of the friction points. These points include the rod journals, wrist pins and piston skirts. A splash lubricated air compressor pump uses dippers fastened to the connecting rods to splash lubricant to these areas. Pressure lubrication is generally recommended for severe applications, such as high duty cycle or high ambient temperature conditions. Most air compressors use splash lubrication.
Why Pressure Lubricated?
The design of Saylor-Beall’s pressure lubricated air compressors is especially well suited for industrial environments where extreme operating conditions demand excellence in air compressor
design and quality.
High-temperature environments, high duty-cycle service, and applications where other forms of lubrication are unacceptable indicate the need for pressure lubricated systems.
How it works

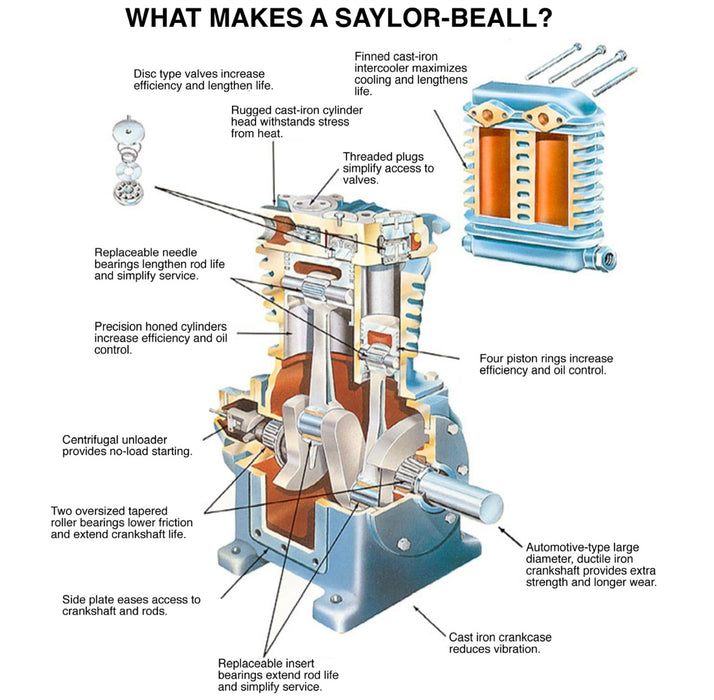

A gear type rotary oil pump mounted at the end of the crank-shaft, coupled with rifle drilled crankshaft and connecting rods provide pressurized oil flow to the parts of the compressor that most need lubrication – the crankshaft, connecting rods, and piston pins. This system dramatically increases the service life of the compressor.
Made in the USA
Saylor-Beall’s state of the art manufacturing facility machines all cylinders, blocks, crankshafts, connecting rods and other parts that go into our air compressor pumps. We strive to maintain short lead times for delivery much faster than industry average.
Key Features & Benefits: 1 Year Warranty INCLUDED + FREE Shipping in USA
Meeting UL standards for code compliance, these compressors can be added to existing systems, delivering top-tier reliability and performance wherever you need it.
X-PL-451524 Specifications:
|
Weight |
2748 lbs |
|
Brand |
|
|
Compressor CFM |
|
|
Compressor CFM Range |
|
|
Horsepower |
|
|
Horsepower Range |
|
|
Compressor PSI |
|
|
Model |
|
|
Compressor Tank Size |
|
|
Tank Size Range |
|
|
Voltage |
**More Duplex Pressure Lubricated Models Available, PLEASE CALL FOR A QUOTE
