GRIZZLY G0964 KEY FEATURES
- Applications: Welding Fume Extraction, Metalworking, Metal Fabrication & Industrial Workshops
- Airflow Capacity: 850 CFM for Effective Welding Fume Extraction
- HEPA Filtration: MERV-17 Filter Captures 99.97% of Particles at 0.3 Microns
- Precision Extraction Arm: 10-Foot Reach, 6” Diameter, 350° Rotation for Flexible Fume Capture
- Motor: Powerful 1-1/2 HP, 120V/240V, Single-Phase, 18A/9A (Prewired 120V)
- 4-Stage Filtration: Spark Arrestor, Stainless Steel Mesh, Pre-Filter & HEPA Filter
- Adjustable Airflow: Built-In Damper & Filter Pressure Gauge for Maintenance Monitoring

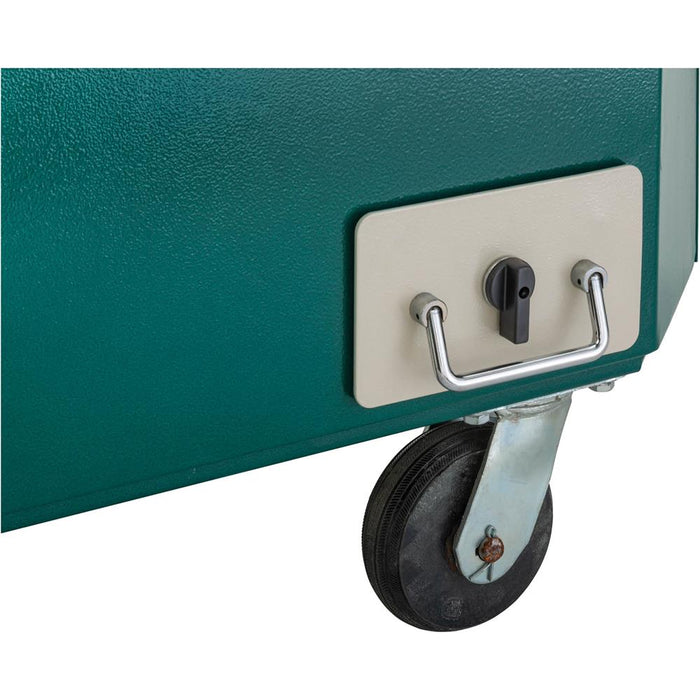

- Portable Design: Heavy-Duty Steel Construction with Locking Casters
- What’s Included: 10-Foot Extraction Arm, 4-Stage Filtration System & Removable Dust Drawer
- FREE SHIPPING: Included with Your Machine Purchase. Additional charges may apply for liftgate service, residential delivery, and scheduled delivery appointments.
- WARRANTY: 1-Year Limited Manufacturer Warranty
- Technical Support: Available Through Capital Woods Machinery
- Nationwide On-Site Technician Service: Available Subject to Scheduling — Charges Apply
-
Replacement Filters & Parts Available in the USA
Grizzly T33833 — Replacement Pre-Filter
Grizzly T33834 — Replacement V-Type HEPA Filter
PRODUCT DESCRIPTION
Purify your shop air with this versatile HEPA fume extractor.
This unique fume extraction machine removes fumes from your shop environment, providing the safe and clean air you need for continued metalworking production.
It features a 10' rotating extraction arm for reaching over and around other machines to direct the suction wherever you need it.
By adding this machine to your metalworking equipment lineup, you will minimize safety issues caused by welding, cutting, or grinding.
The 850 CFM of airflow performance provides the suction needed for efficient air movement through each of the filters.

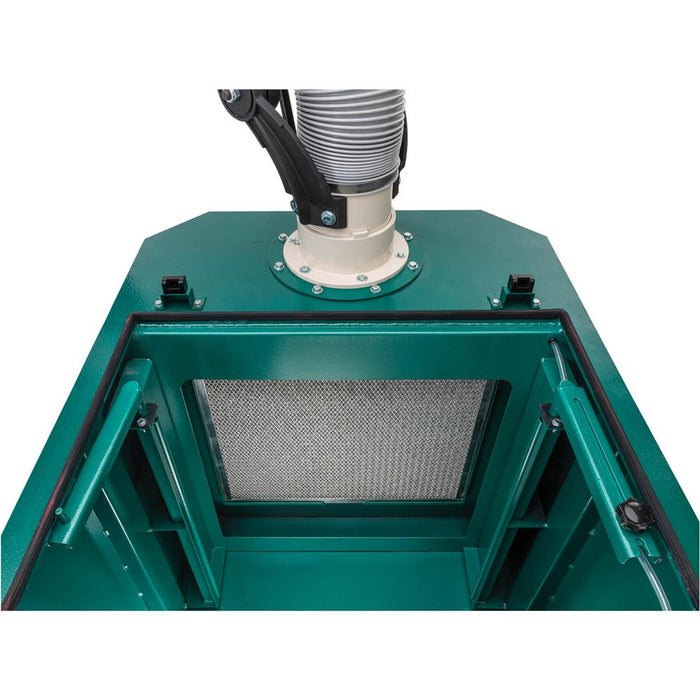

The four-stage filtration starts with a spark arrestor aluminum mesh filter, and then the particles pass through a stainless steel mesh filter.

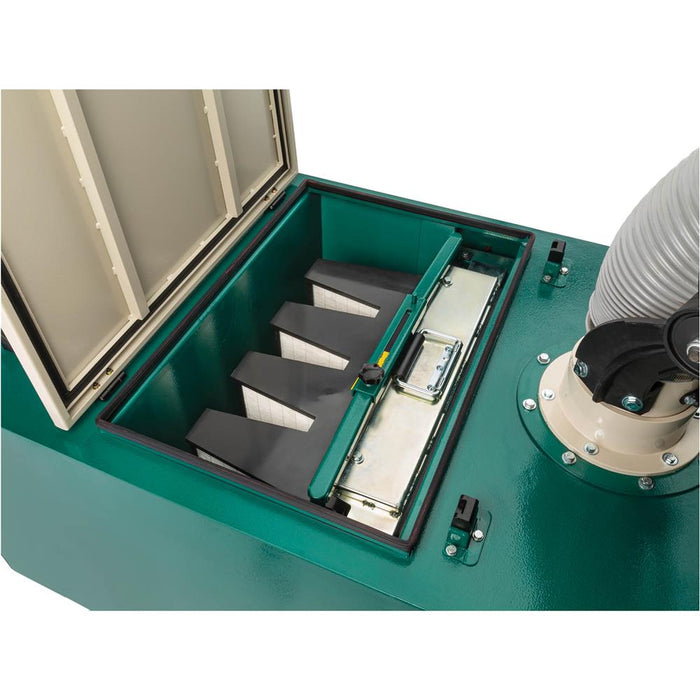

Whatever hasn’t been removed with the first two filters moves through a pleated pre-filter, which takes care of particles between 2 and 10 microns.

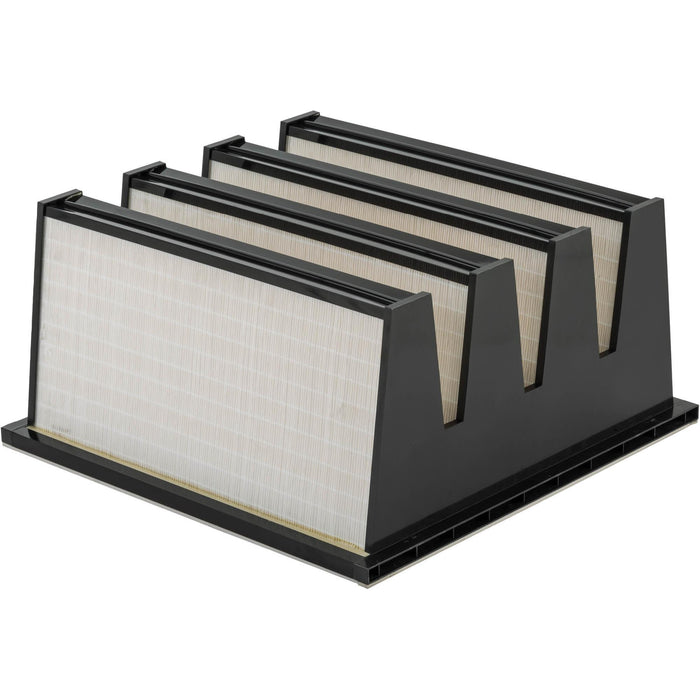

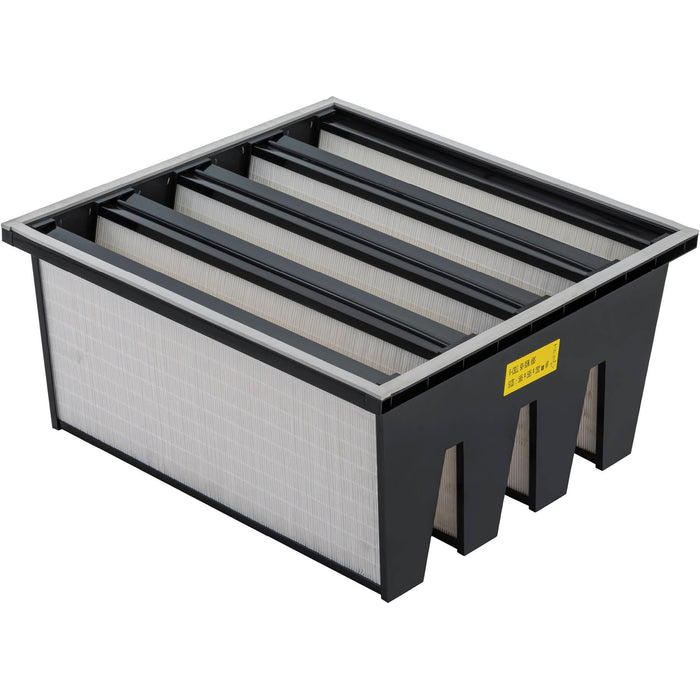

A V-Cell HEPA filter is the final stage of the filtration process. It filters 99.97% of particles down to 0.3 microns. For reference, a human hair is between 50–70 microns in diameter, meaning the G0964 collects particles 230 times smaller!
You won’t believe the difference that intensive fume extraction makes in the quality of your shop atmosphere!
The G0964 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.
Fume extractor parts may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
SPECIFICATIONS
- Motor: 1-1/2 HP, 120V/240V (prewired 120V), single-phase, 18A/9A
- Airflow capacity: 850 CFM @1.72" SP
- Maximum static pressure: 7.02"
- Extraction arm length: 10 feet
- Extraction arm diameter: 6"
- Extraction arm rotation: 350°
- MERV rating: MERV-17
- Third-stage filter rating: 2–10 Microns @ 35%
- Fourth-stage filter rating: 0.3 Microns @ 99.97%
- Main inlet size: 6"
- Overall dimensions: 29-1/2" W x 88-1/2" D x 84" H
- Approximate shipping weight: 601 lbs.
