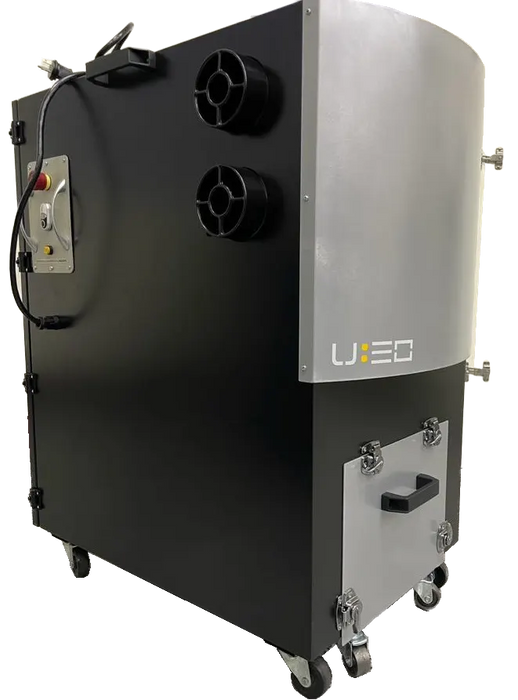

Laguna Tools U|30 Metal Dust Collector I 3HP, 208V Single Phase . 957 CFM I MDC503L2203
by Laguna tools
$2,749.00
U|30 Metal Dust Collector
The Laguna Tools U|30 Metal Dust Collector offers industrial-level dust collection with its 3 HP motor, producing up to 957 CFM of airflow. Four 4-inch inlets allow for easy connection to multiple machines, making it ideal for larger shops.
Constructed with a steel body and durable drum, the U|30 is built for heavy use. The 5.6-gallon metal drawer collects debris efficiently, while the fire-resistant micro mesh filter traps fine dust for cleaner air. Despite its powerful performance, it operates at a quiet 74 dB and is easily movable thanks to built-in casters.
Features
- 3 HP Motor
- 957 CFM Maximum Air Flow
- 5.6 Gallon
Specifications
- Motor: 3 HP
- Motor Speed: 3450 RPM
- Electrical: 220 volt / 60 Hz / 1 Ph
- Amps: 11 FLA
- Switch: Magnetic
- Power Cord: 6 Ft
- Plug: No Plug
- Inlet Size: 4″ x 4
- Noise Volume: 74 dB
- Maximum Air Flow: 957 CFM
- Static Pressure: 9.4″ H2O
- Impeller Size: 12″ Diameter
- Collection Volume: 5.6 Gallons
- Filter Material: Galvanized micro mesh
- Filter Size: 19.25″ x 25″ x 1.8″
- Construction: Steel Cart – Stainless Drum
- Start Capacitor: 600?F/125V
- Run Capacitor: 450?F/350V
- Wheels: 2.5″ Machine / 2″ Drum
- Assembled Size (LxWxH): 35.4″ x 24.6″ x 40″
- Shipping Size (LxWxH): 35″ x 26″ x 42″
- Weight (Net/Gross): 230.5 lb / 253.5 lb
