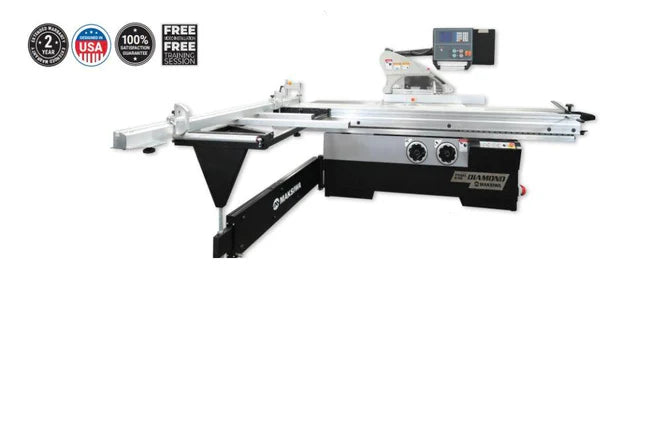

Maksiwa Sliding Panel Saw Diamond - BMD.3200.IR | 10 HP, 3 phase, 220 V |
Black Friday Special (valid through Nov 31)
Includes:
- FREE 12" Main Blade
- FREE Scoring Blade
- 2 Years Warranty
- FREE live video call Installation and training
- FREE shipping
BMD.3200.IR

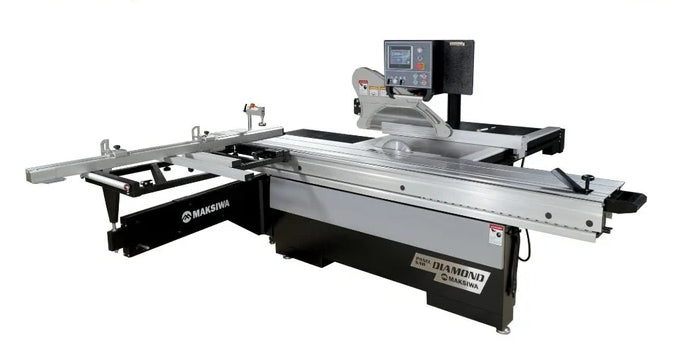

The Maksiwa Sliding Panel Saw Diamond - BMD.3200.IR is a high-performance sliding panel saw designed for woodworking professionals who demand precision and efficiency. Featuring a powerful 10-horsepower motor, advanced CNC-controlled rip fence, and an intuitive touchscreen interface, this machine delivers exceptional accuracy and control for a variety of cuts.
Engineered with a durable, industrial-grade frame, the BMD.3200.IR ensures long-lasting stability and reliability, while integrated safety features and a built-in dust collection system create a cleaner, safer work environment. Whether you’re handling large panels or detailed cuts, this versatile saw excels in all applications. Plus, with a two-year warranty and responsive US-based customer support, Maksiwa provides peace of mind for your investment.
Perfect for cabinetmakers, furniture manufacturers, and custom woodworkers, the BMD.3200.IR is designed to meet the high demands of modern production environments.
FEATURES:
- Programable Rip Fence
- Advanced CNC-controlled Rip Fence

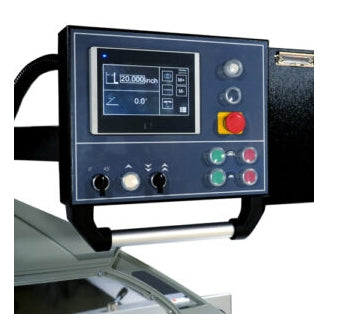

- Touch Screen Control Panel
- 10HP Main Motor
Technical Information:
| Max Ripping Capacity | 51" | 1295 mm |
| Crosscut Capacity | 126" | 3200 mm |

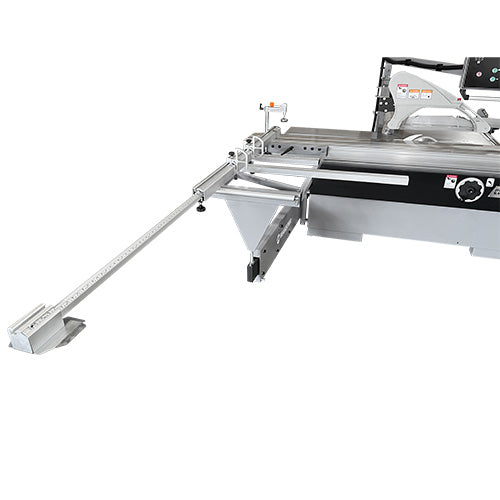

| Crosscut Fence Capacity Closed/Open | 78" / 120" | 1981 mm/ 3048 mm |

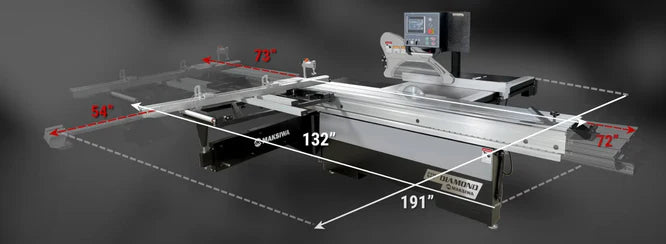

| Machine Working Dimensions (LxWxH) | 132" x 137" x 75" | 3352 x 3479 x 1905 mm |
| Cast Iron Table Dimension (LxWxH) | 35" x 21" x 34" | 896 X 548 X 864 mm |
| Sliding Table Dimension (LxW) | 126" x 14" | 3200 x 378 mm |
- Extension Table (rear) 37” x 35” - 952 x 896 mm
- Extension Table (front) 32.5” x 12.5” - 830 x 320mm
- Max Blade Diameter 16” - 400 mm
- Max cutting Height at 90º 5” - 130 mm
- Max cutting height at 45º 3.5” - 90 mm
BLADE:
• Main blade diameter: 14” I 355mm
• Main blade arbor size: 1 3/16" I 30mm
• Scoring blade diameter: 4 3⁄4’’ I 120mm
• Scoring blade arbor size: 25/32” I 20mm
DUST COLLECTOR:
• Port 1 diameter: 4’’
• Port 2 diameter: 4’’
• Minimum CFM needed: 1000 CFM I 28m/min
ELECTRICAL SPECS:
3 Phase:
Main motor:
10 HP/ 7.3 Kw
• 3phase 220v 40 Amps - 60Hz
• Non-loaded blade speed: 4,000 RPM Scoring motor:
• 3/4 HP - 2.5 Amps
Non-loaded scoring blade speed: 8,000 RPM
GENERAL:
• Weight: 1,470 LBS
• Machine dimensions (closed): L 133” X W 135” X H 65’’
• Machine dimensions (max): L 192” X W 280” X H 65’’
• Sliding table dimension: 15” X 132” I 78 x 3200 mm
• Sliding table max travel length: 280”
• Fixed table max width: 52”
• Guide size (closed): 71”
• Guide size (max): 128’’
• 1 Blade Cover
• 1 Lockable main power switch
• 2 Emergency buttons
• Max tilt: 45°
• Max depth cut: 3“
• Max cutting length: 120”
| Main Body Crate Dimensions (LxWxH) | 83" x 45" x 45" | 2108x 1143 x 1143 mm |
| Main Body Crate Weight Net/Gross | 1470 LBS | 667 KGS |
| Sliding Table Crate Dimensions (LxWxH) | 133" x 18" x 15" | 3378 x 457 x 381 mm |
| Sliding Table Crate Weight Net/Gross | 274 LBS | 124 KGS |
