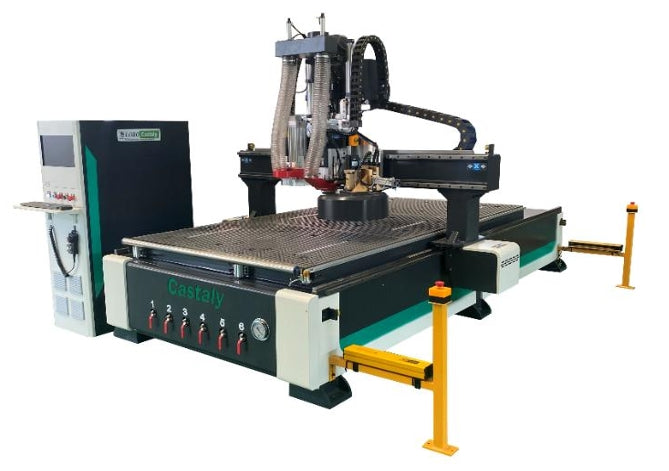

CNC Router (5” x 10”) 3PH SUPER-510RT with Drill Bank

Overview Description:

• 5’ x 10’ (1,600 mm x 3,200 mm) Phenolic Matrix Grid Vacuum Table with (6) independent zones and 8 location pins

• 13 HP (9.6 kW) “HSD” Air-cooled Router Spindle (HSK 63 Spindle) , 6,000-24,000 rpm/min

• Italy HSD drill bank 9 vertical (OPTION)

• Industrial Grade "SYNTEC" CNC controller with 8" color LED monitor with full Keyboard

• 12-position Rotary ATC that moves with the gantry

• Yaskawa 850w Servo drives and motors with Shimpo gear boxes

• HSD Boring Head with (9) mandrels in 5 x 5 L-shaped configuration

• Travels via 1” HWIN linear rails with pre-loaded bearings.

• Driven by dual inclined-toothed helical rack and pinion rails and motors

• Z-axis movement via 1” diameter ball & screw with preloaded bearings

• 2,350 IPM max. traverse speed; 1,100 IPM max. working speed.

Detailed Description:
Machine Bed/Base:
The Welded & Structurally Engineered machine base provides a solid foundation for superior cut quality;
the entire frame is stress-relieved and heat-treated.
The Moving Gantry Bridge travels in the X- & Y-axis via inclined helical rack & pinion on 1" (25 mm) thick,
hardened & precision ground "HIWIN" rectangle linear guide ways with preloaded bearings, giving extra
smooth movement, high speed traverse, and accurate cutting.
The Tool Gantry Movement for the vertical Z-axis travels on a 1" (25.4 mm) diameter "HIWIN" precision
ball-screw with preloaded bearings for smooth & consistent movement.

CNC Control & Operator Interface:
Industrial Grade "SYNTEC" CNC controller with 19" color LED monitor; includes an ARM11 processor,
RAM 128M, CPU Clock, Speed 600M, Flash 256M, WINCE operating system.
Up to (3) simultaneously controlled axes with helical interpolation, tool offset, length compensation &
backlash compensation, AQE compensation, LAN communication, 2-way transmission between the
system and PC, and Front USB interface. Compatible with virtually all CAD/CAM programming software.

Working Table:
63" x 150" x 7.75" (1525*3560*200 mm) phenolic matrix grid table.
(6) Independent vacuum zones

Axes Travel Range & Feed Speed:
Max Traverse Speeds: 2,350 IPM
Max Working Speed: 1,100 IPM.
"Yaskawa" AC 850w Servo drives & motors power all axes’ movements.

Routing & Machining:
(1) 12 HP (9 kW) Air-cooled Router Spindle with: ISO 30 Adaptor, 6,000 to 24,000 RPM,
(1) 12-position Rotary automatic Tool Changer/HSK 63 Tool Holder W/ER-40Collects, moves with the bridge gantry
(1) Boring Head: "HSD" head with Spindles (5 +5) in "L"- Shaped configuration OPTION

Included Features
11 kW Inverter.
(12) ISO 30 Tool Holders & Collets
Automatic lubrication device with filter

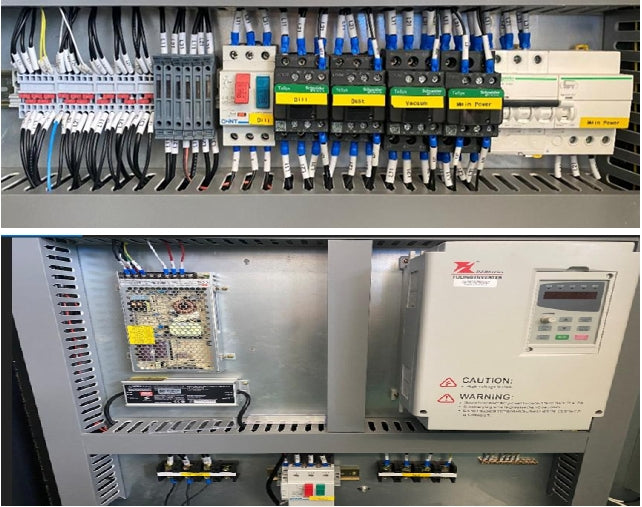

Automatic tool offset device Schneider
electronic components. Standard
MPG hand wheel

Optional (not included): CAD/CAM Drawing Software.

COMPONENTS AND FEATURES

12 HP (9 kW) HSD Air Cooled Spindle

• 6,000-24,000RPM

• Front & Rear Ceramic Bearings
• Aluminum Alloy Spindle Body

4’ x 8’ Phenolic Vacuum Table

• Matrix Grid with (6) Independent Zones
• (4)Pneumatic Location Pins

• Rails For Clamping

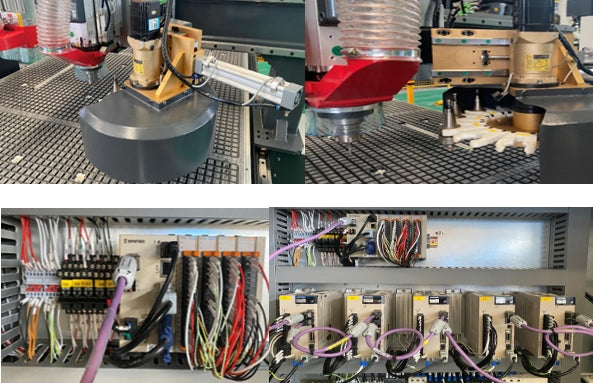

12-Position Linear Tool ATC

• (12)Tool Holders

• (12)Collets
•
(12)Positions Linear Tool Rack

HSD BZH9 Boring Unit

• (9)Vertical Spindles(5x5)L-shaped
• 2HP(1.7kW)Motor

• 6,000RPM

Automatic Tool Touch-off Device

• Automatically Measures Tool Length
• Quick & EasySetup

• High Accuracy

10 HP (7.5 kW) Rotary Vane Vacuum Pump

• 176CFM Dry Rotary Vane Vacuum Pump

• Motor Speed1,210RPM,26HG Vacuum Capacity

Machine Specs:


Machine power supply is wired for 220 Volts, 60 Cy, 3-Phase, 53 Amps. Machine weighs approx. 5000 lbs.
Machine air consumption at 90 PSI is approx. 15 CFM.

The SUPER-510RT is an Industrial Grade CNC Router with a Rotary-ATC that will get the job done!



Please Note: This Machine has an additional 22% Tariff not included on the Price and will be added at the moment of your purchase.

Call us if you have any questions. Ext.701.
