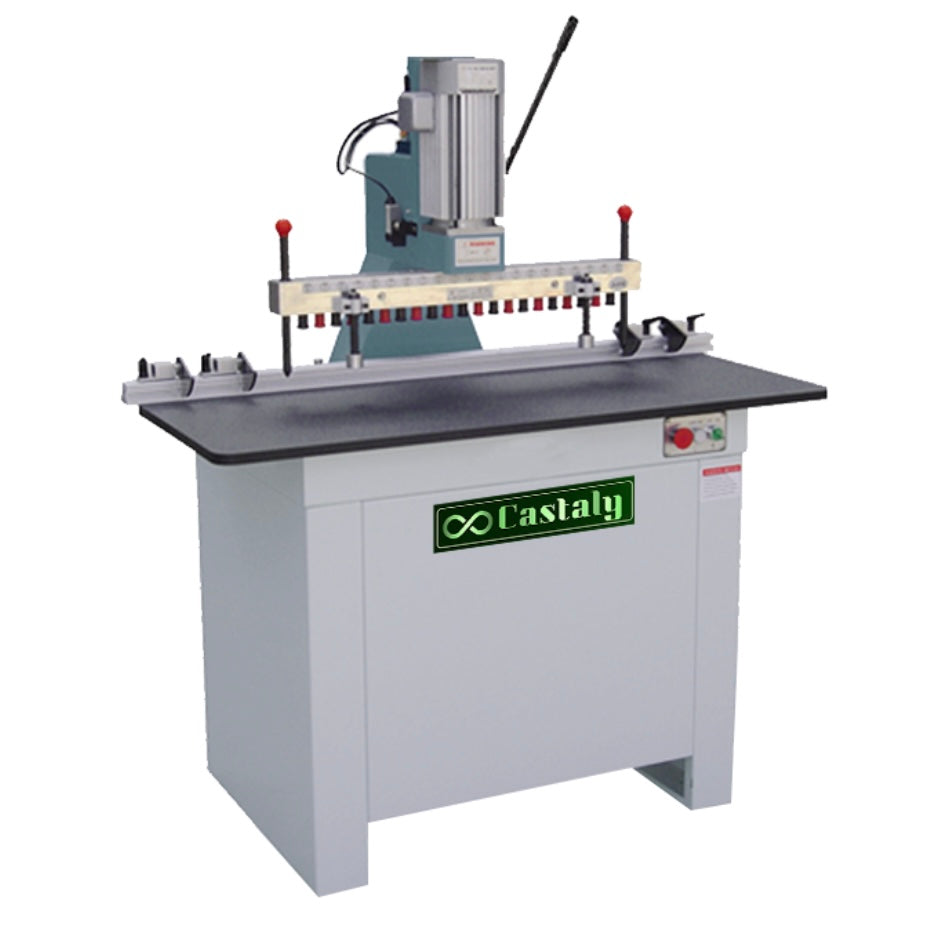

Pneumatic, 21 Drills Vertical Boring I BR-21VPA I
Click or scroll to zoom
Tap or pinch to zoom
Pneumatic, 21 Drills Vertical Boring I BR-21VPA I
Pneumatic, 21 Drills Vertical Boring I BR-21VPA I

Pneumatic, 21 Drills Vertical Boring I BR-21VPA I

by Capital Woods Machinery
$7,390.00

Features:

  • Manually operates to drill 21 holes at one time producing mass drilling capability.
  • Precision large travel piston to ensure accurate drilling position.
  • Heavy duty cast iron frame for durability for long periods of use.
  • Suitable and affordable for industrial and small workshop use.
SPECIFICATIONS BR-62 BR-21VME (VPA)
Motor 1-1/2 HP 2 HP, 1PH
Drill Speed 3400 RPM 3400 RPM
Spindle Accepts Shank 7/16"x 14 UNC M 10
Spindle Stroke (Max) 3" 2"
Table Size (W x L) 12" Dia. 23" x 48"
Chuck 5/8" ~
Throat Depth 10" 9-1/2"
Multi Drill Head Available YES 32mm CENTER
Standard Spindle 1 21
Max. Spindle Optional ~
N.W. 185 LBS 242 LBS
G.W. 220 LBS 390 LBS
