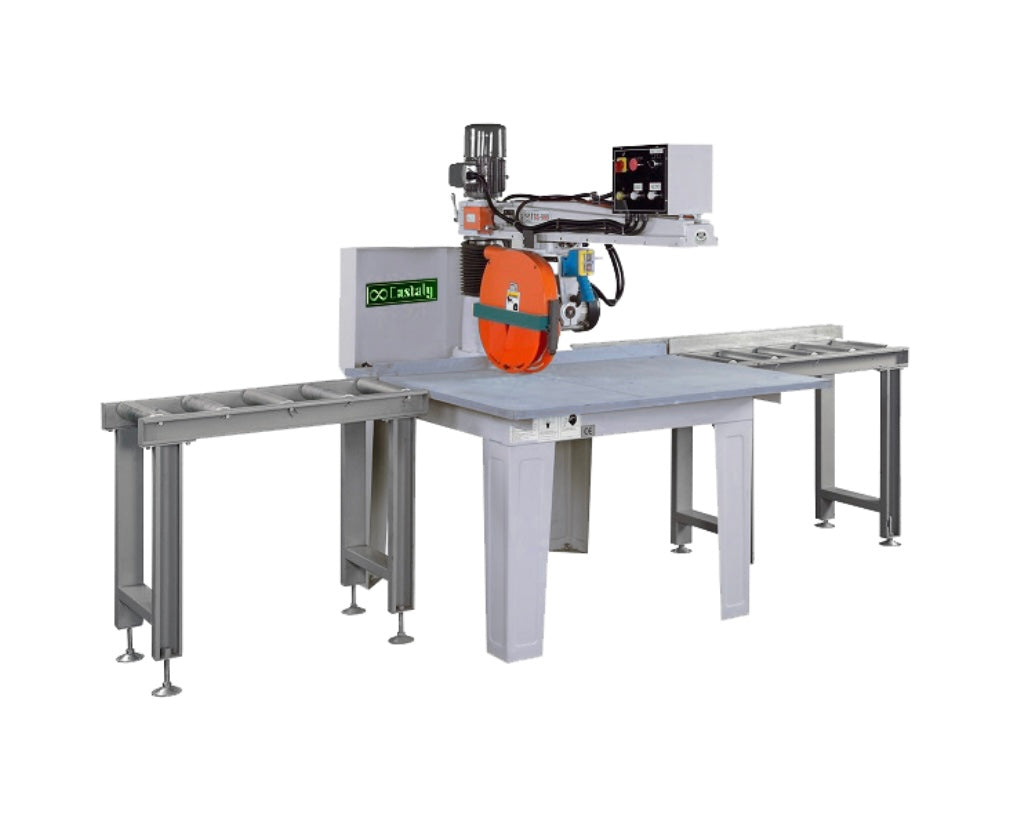

Automatic Cutting Radial Arm Saw [14" & 16"] I RS-640-AO I

Automatic Cutting Radial Arm Saw [14" & 16"]

Features:

• • Automatic Cutting Radial Arm Saw, Cutting Cycle with motorize to save labor and fast production
  • With laser light to show straight cutting line.
  • Rail is treated and hardened, precision ground for maximum wear resistance and slide accuracy.
  • Saw head runs on ball bearings giving effortless and smooth movement.
  • One piece casting iron arm for durability usage.
  • High performance self-braking motor for safety protection.
  • Saw head is firmly set at any angle desired.
  • Safety saw blade guard.
  • Anti-kickback attachment included.
  • Full power industrial motor for durabilty usage.
  • Overload protection switch.
  • Heavy sheet metal stand.



  Specification:

  SPECIFICATIONS	RS-640-AO	RS-660-AO
  Motor	4.5 HP, 3 PH, 230 V	4.5 HP, 3 PH, 230 V
  Motor Speed	3,400 RPM	2,900 RPM
  No. of Head Travel Bearing	8	8
  Spindle Diameter	1"	1"
  Saw Blade Diameter	12" ~ 14"	14" ~ 16"
  Max. Depth of Cut	3-1/2"	4-1/2"
  Max. Cross Cut Length	24"	31½"
  Saw Travel Motor	1 HP	1 HP
  Table Size (L x W)	24" x 43¼"	35" x 43¼"
  Machine Size	45" x 44" x 69"	57" x 43¼" x 74"
  N.W.	1,050 LBS	1,160 LBS
