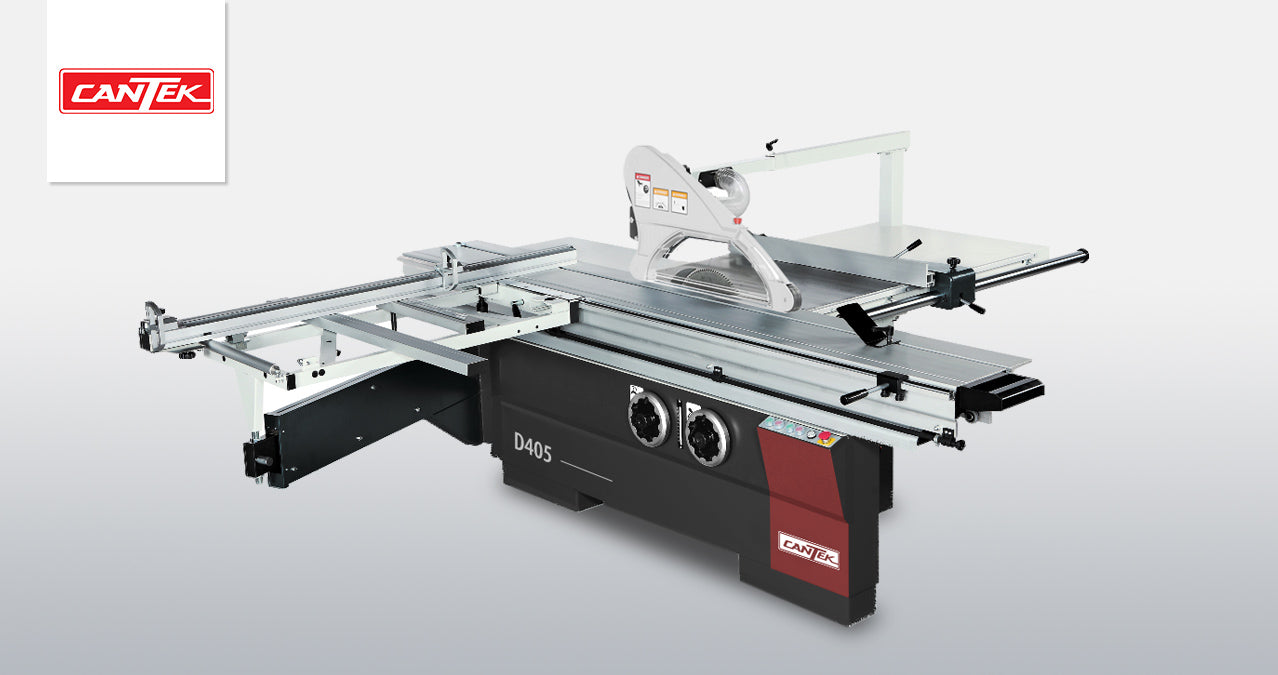

CANTEK D405M-10E | 10' Sliding Table Saw (7.5HP main, 1HP scoring) W/ Digital Readout on Rip Fance

** FREE SHIPPING **

CANTEK D405M-10E |10' Sliding Table Saw (7.5HP main, 1HP scoring) W/ Digital Readout on Rip Fance

Blades & Supplies: Click Here

Features:

• Powerful 7 ½ HP main motor for 3 Phase or 5 HP main motor for Single Phase, with separate 1 HP scoring motor.
• Manual saw blade rise/fall & tilting, conveniently located on the operator side of the machine.
• Heavy-duty outrigger for strong support of workpiece during cutting operations.
• Electronic Digital Readout with scale for manual positioning on fence.
• Dual inch and metric scales for crosscut fences.
• Manual lateral and vertical scoring adjustment by externally mounted handles for operator convenience.
• Eccentric hold-down clamp, table return handle, and wedge for solid wood ripping included.
• Overhead saw blade guard with built-in dust port included (CE-type).
• Comes with a set of sawblades: (1) 14” (355mm) diameter main blade; (1) scoring blade
• Manual rip fence with fine adjustment & electronic digital display for precise positioning.

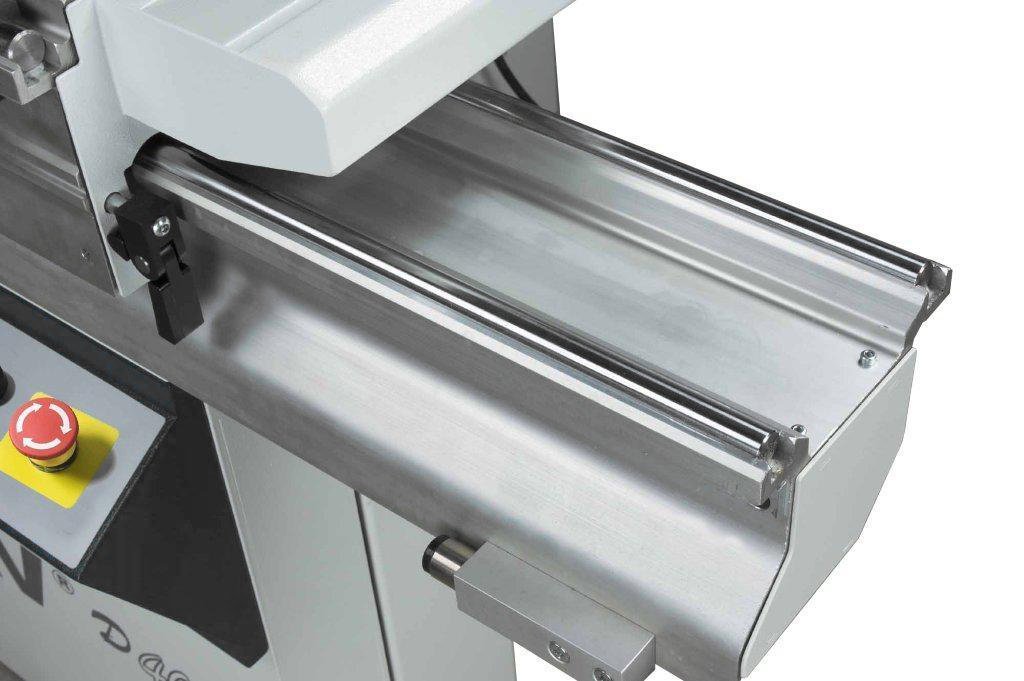

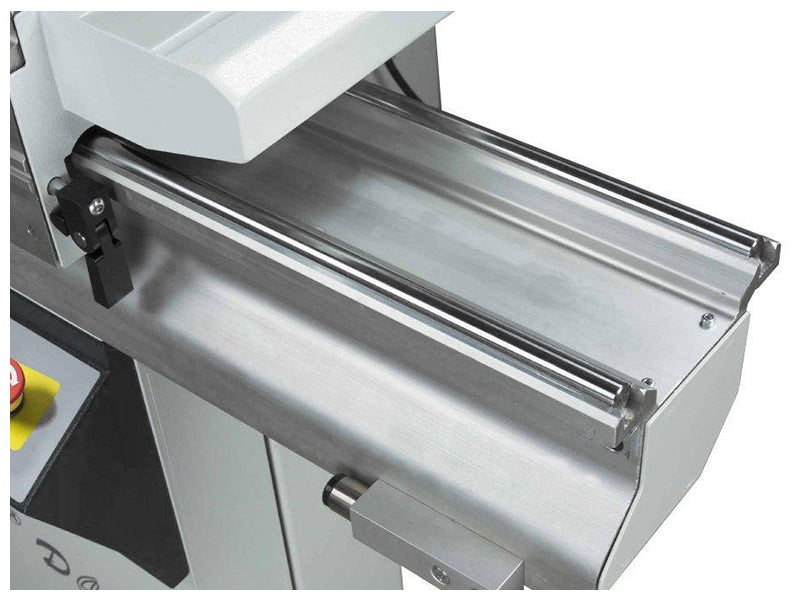

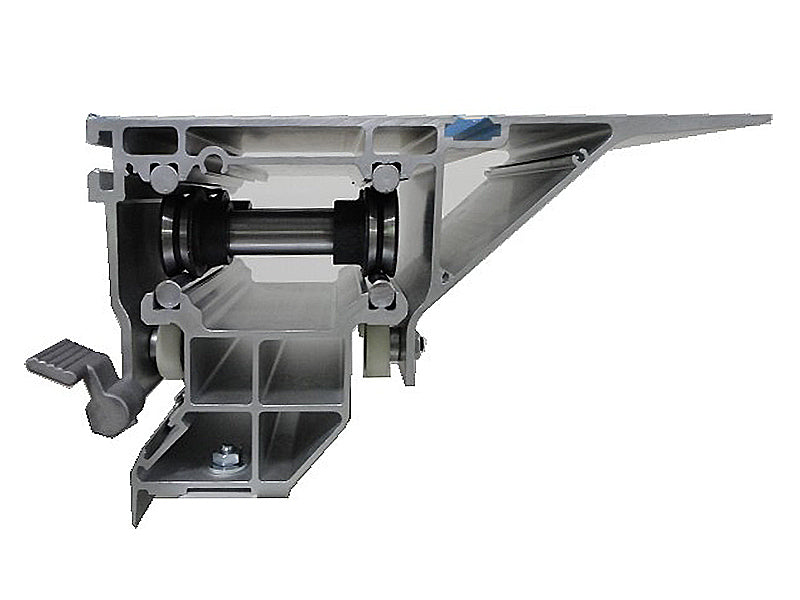

• Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides for smooth and effortless table movement.

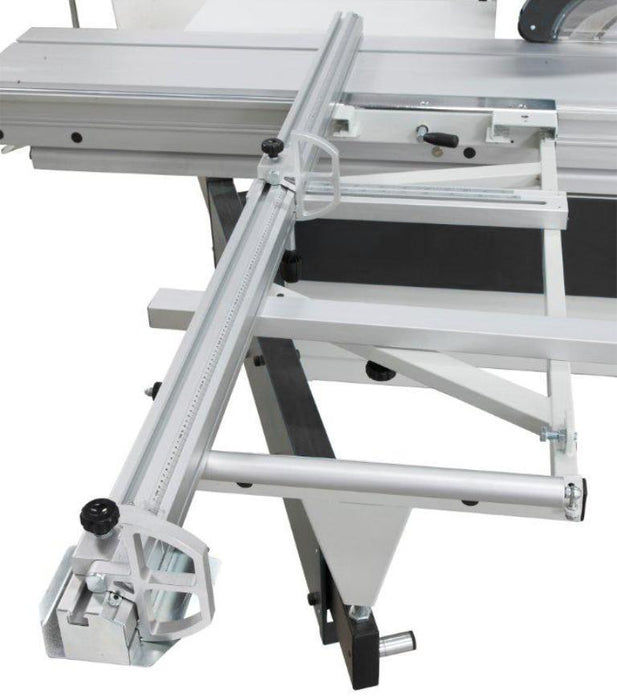

• Crosscut miter fence with (2) flip stops for accurate panel sizing and angular cuts.

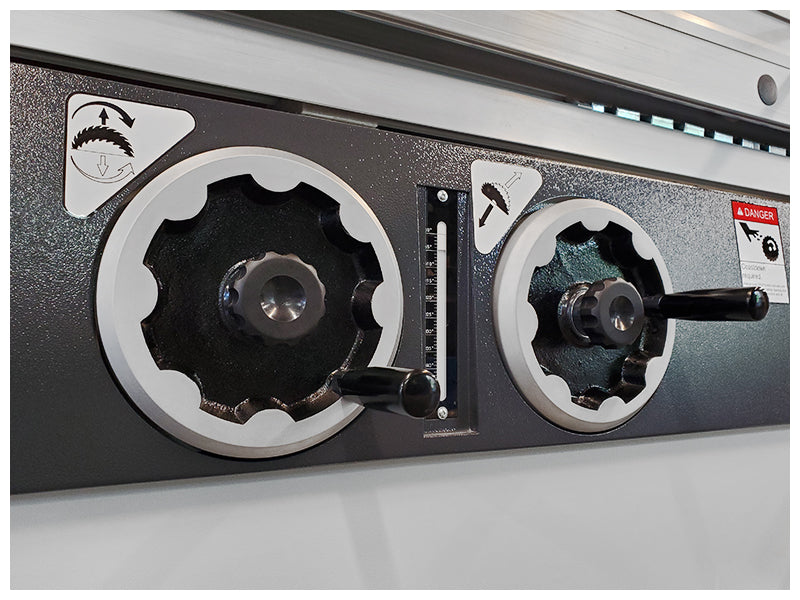

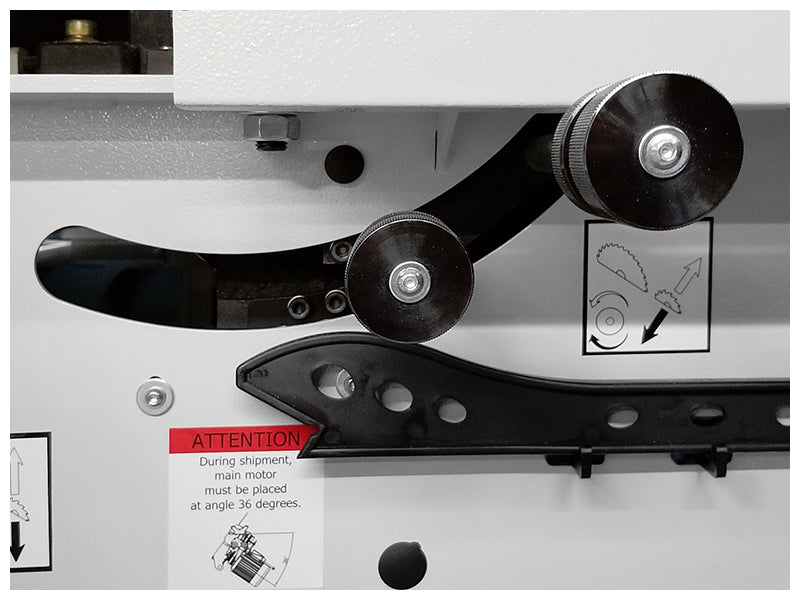

• Manual blade rise, fall, and tilting with a convenient pointer for blade angle display.

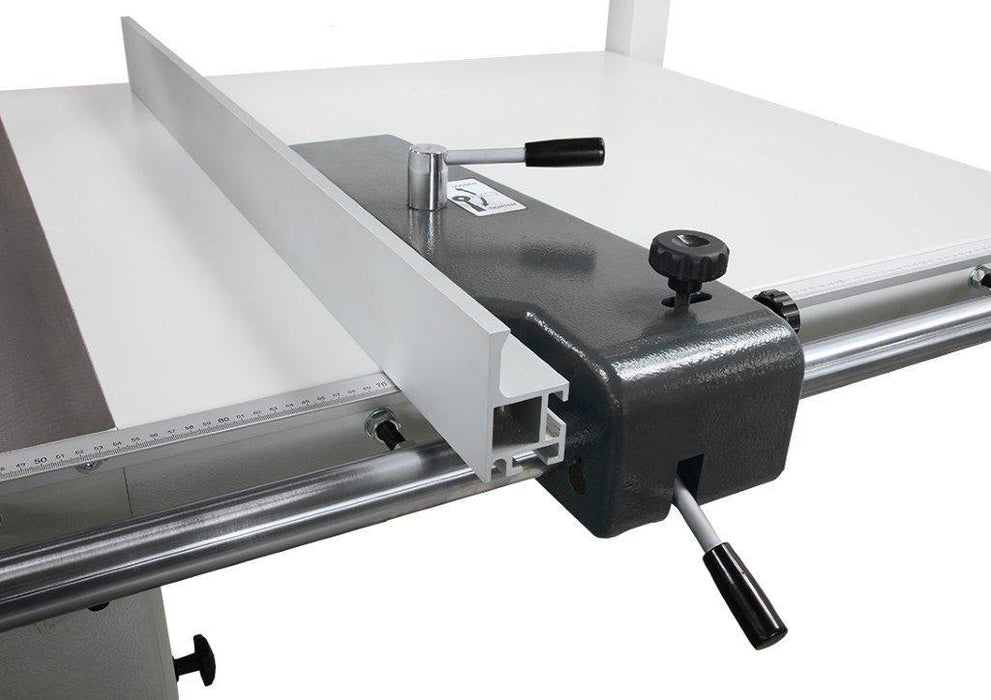

• Heavy-duty rip fence runs on round cylindrical solid steel guide with manual adjustment and micro-adjustment knob.

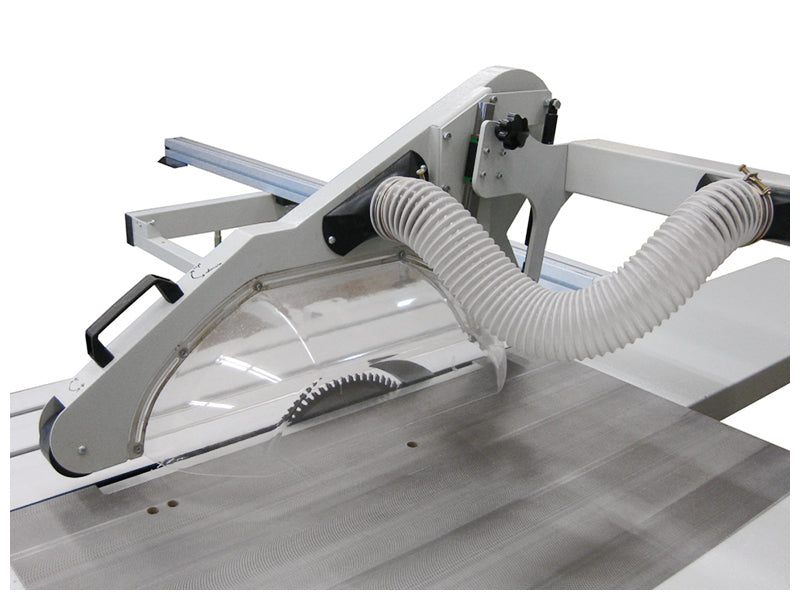

• Overarm safety guard with a quick-change system for changing between straight and bevel cutting guards.

Specifications

• Cast iron fixed table dimension: 21.6” x 35.3”
• Sliding table dimension: 126” x 14.9"
• Extension table (rear): 37 ½” x 35 ¼”
• Extension table (front): 12.6” x 32.7”
• Table size: 59"x 68"
• Round rail: 1.97
• Max. main saw blade diameter: 355mm (16”)
• Main saw bore: 30mm
• Max. cutting height at 90°: (355mm) 105mm 4.13”
• Max. cutting height at 45°: (355mm) 70mm 2.76”
• Main saw motor: 7.5 HP (3ph) / 5 HP (1ph)
• Main blade speed: 3000/ 4000/ 5000 RPM
• Scoring saw blade: 120 mm
• Scoring saw blade bore: 20 mm
• Scoring blade motor: 1 HP
• Scoring blade speed: 8000 RPM
• Max rip cutting width: 51.2”
• Cutting width adjustment: Manual
• Blade tilting adjustment: Manual (0°~45°)
• Main saw height adjustment: Manual
• Scoring saw adjustment: Manual
• Dust ports (machine/ guard): 4.72” / 2.4” (120/ 60 mm) = 825CFM
• Machine total weight: 1612 lbs.
• Machine shipping details: 83” x 45 ½” x 44” (1428 lbs)

• Sliding table shipping details: 137” x 20” x 15” (380 lbs)
• Over guard shipping details: 80 lbs. (40"x36"x6")
• Electrics:

1.  230/3/60 = 26.2 Full Load Amps
2.  230/1/60 = 36 Full Load Amps
3.  575/3/60 = 10.3 Full Load Amps
