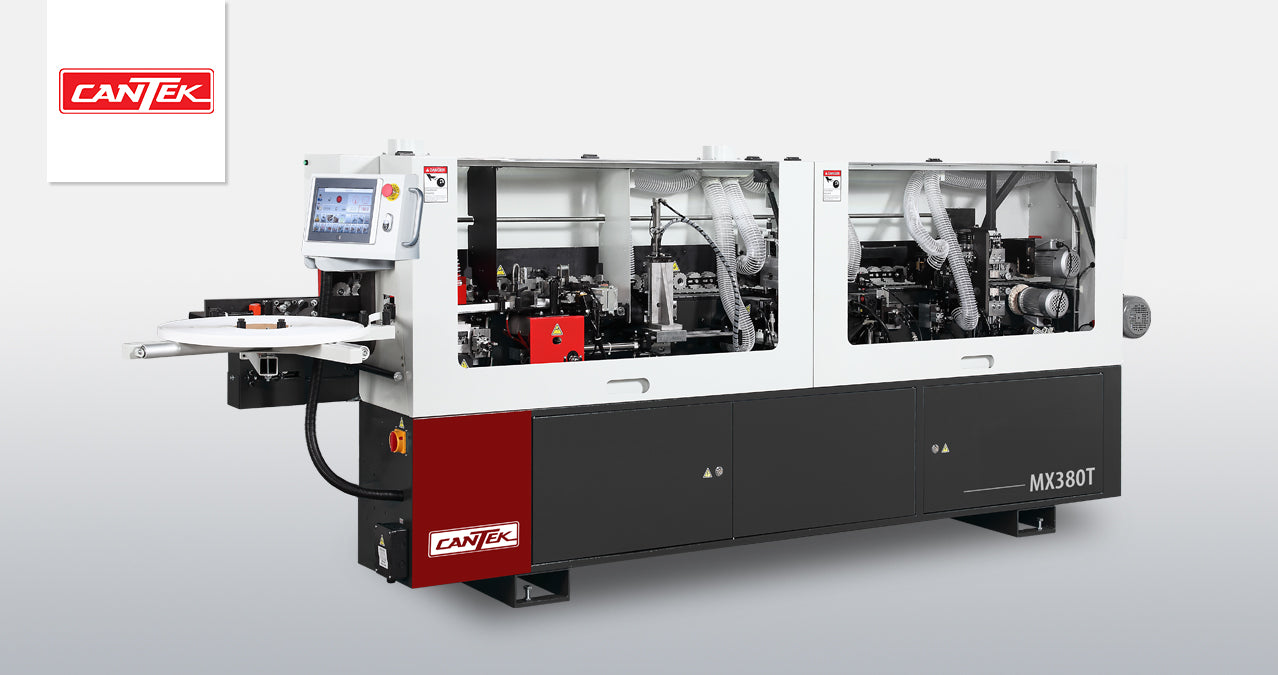

CANTEK MX380T Automatic Edgebander W/ Premilling & Corner Rounding | 230V 3 Phase, 29 FPM
by CANTEK
Save $2,165.00
$43,300.00
$41,135.00
** FREE SHIPPING **
Why Cantek MX380T Automatic Edgebander?
- Versatile Edgebander capable of applying 0.4mm to 3mm edge tape.
- Quick change glue pot allows you to change glue colours in minutes.
- Premilling ensures a perfectly square edge and clean panel to work with, resulting in a minimally visible glue joint.
- An intuitive touch screen interface is not only user friendly but provides the operator with valuable information like detailed error reporting.
- The corner rounding function finishes the ends of cabinet doors with a radius edge, eliminating any manual rework of the panel.
KEY DIFERENCE BETWEEN MX380T AND MX380PRO
- The MX380T offers additional features above the popular MX370P including a touch screen control, glue scraping unit, and updated end trim design with linear guide.
- The MX380PRO is the evolution of the RAPIDEDGE PRO with an updated end trim design with linear guide.
KEY ADVANTAGES
- Automatic edge feeding with a thickness capacity of 0.4–3 mm; strip material can be hand-fed.
- Conveyor chain feed system for reliable results.

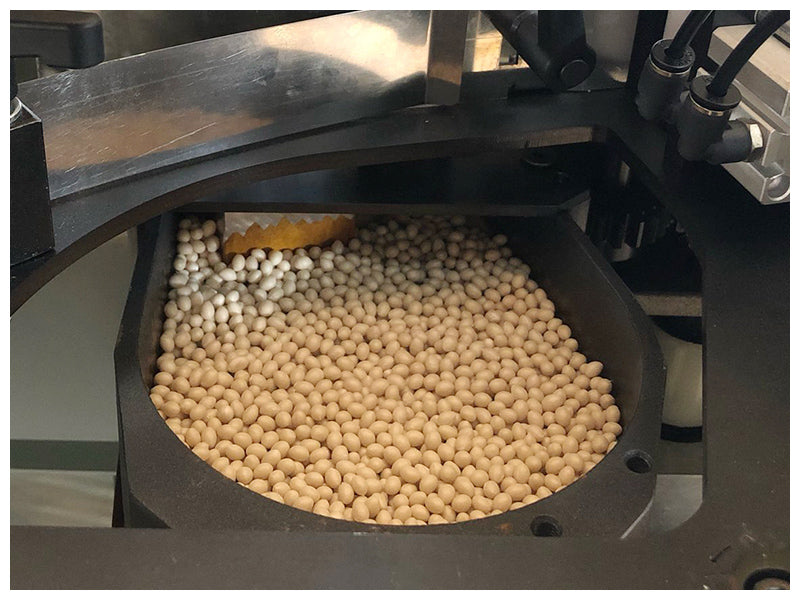

- Teflon-coated hot-melt glue pot.
- Heated infeed fence for pre-heating the panel for optimum glue penetration.
- Workpiece is fed by chain.
- Edge coil support plate: Ø 800mm (31 ½”) for PVC/ABS.
- Spring-loaded pressure unit with (2) pressure rollers.
- Heavy-duty pressure beam with extendable workpiece support.
- Touch screen interface
- State of the art touch screen interface allows the operator to conveniently control various machine functions.
- On screen error diagnostics.
- Temperature setting with automatic temperature lowering.
WORKING UNITS
-
PREMILLING UNIT
High-frequency pre-milling units can remove up to 3mm and are designed to provide an ideal edge for applying edge tape by cleaning up poorly cut panels.
(2) counter-rotating diamond cutterheads for optimum results and longevity. -
END TRIM
High frequency 12000 RPM end trimming unit, with 2 saw blades -
TOP & BOTTOM TRIM
High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming. -
CORNER ROUNDING
High-frequency corner rounding unit can process 0.4-3mm thick edgebanding by tracing the shape of the panel. -
RADIUS SCRAPING
Radius scraper with 2mm radius. -
FLAT SCRAPING
Flat insert knives designed to remove any excess glue which remains on the surface of the panel after applying the edge due to squeeze out.
-
BUFFING
3000 RPM top & bottom buffing units to polish the machined edge.
SPECIFICATIONS
- Feeding Speed: 29 FPM (9 m/min.)
- Panel Thickness: 0.315" - 1.77” (8-45 mm)
- Edge Thickness: 0.158”-0.118” (0.4-3 mm)
-
Minimum Panel
- Width: 3.1/2” (90mm)
- Length: 6.7” (170mm)
- Working Table Height: 38” (960mm)
- Extensible Support Width: 22” (560mm)
- Dust Collection Outlet: 0.5” x 3 1800 CFM (0127mm x 3) 1800CFM
- Air Consumption: 12.36 CFM (350 liters/min)
- Electrical Consumption: 10.9 4HP (6.7 kw)
- Electrical Requirement: 230/3/60 (26 Full load amps)
- Machine Weight: 2024 lbs. (910 kgs)
- Shipping Weight: 2626 lbs. (1190 kgs)
- Shipping Dimensions (L x W x H): 156” x 29” x 69” (3960 x 730 x 1748mm)
OPTIONAL ADD-ONS
- POT3 – Additional Quick-Change Gluepot $1,959.00 (Call and add to your order)
