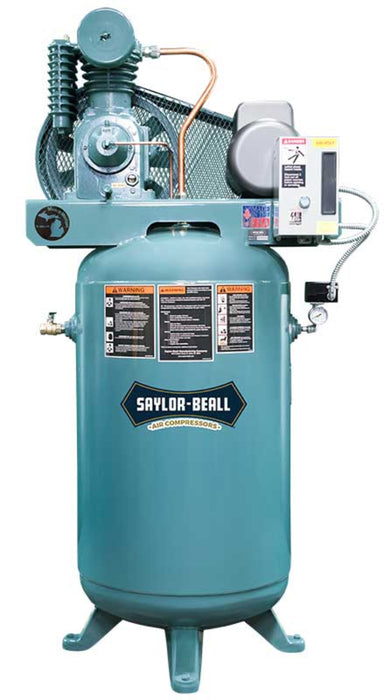

Saylor-Beall VT-735-80-1 Two-Stage Vertical Tank Air Compressor | 5 HP, 80-Gallon
SAYLOR-BEALL VT-735-60-1 KEY FEATURES
- 5 HP Industrial Air Compressor – Built for demanding shop and industrial compressed-air applications.
- 17.3 CFM at 175 PSI – Delivers high-pressure compressed air for pneumatic tools and equipment.
- 80-Gallon Vertical Air Tank – Provides compressed-air storage while conserving floor space.
- The “Million Mile” Pump: Features the heavy-duty Model 705 cast iron pump. While other brands spin their 5 HP pumps at 1200+ RPM to save money, Saylor-Beall runs the 705 at a cool 845 RPM.
- Two-Stage Cast Iron Compressor Pump – Heavy-duty Model 705 pump with splash lubrication.
- Single & 3Phase Electrical Power – 1-Phase (230V) or 3-Phase (208/230/460V)
- Made in USA – American-manufactured Saylor-Beall air compressor.
- FREE SHIPPING – Commercial addresses only. Residential delivery requires a separate freight quote.
- WARRANTY – 1-Year Manufacturer Warranty, subject to manufacturer terms.
PRODUCT DESCRIPTION
Saylor Beall industrial two stage industrial air compressors are built with either an electric motor or engine driven option. All Saylor-Beall reciprocating air compressors are proudly USA made and rank among the best air compressors in the industry.
Splash Lubrication vs Pressure Lubrication:
A pressure lubricated air compressor pump uses an oil pump to force lubricating oil to all of the friction points. These points include the rod journals, wrist pins and piston skirts. A splash lubricated air compressor pump uses dippers fastened to the connecting rods to splash lubricant to these areas. Pressure lubrication is generally recommended for severe applications, such as high duty cycle or high ambient temperature conditions. Most air compressors use splash lubrication

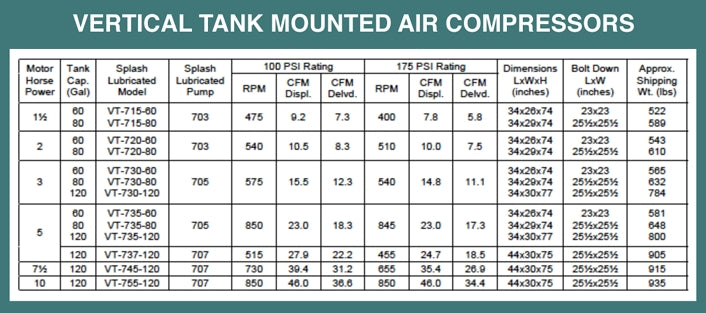

SPECIFICATIONS
- Manufacturer: Saylor-Beall
- Model: VT-735-80-1
- Motor Power: 5 HP
- Voltage: 230V, 208, 460 1-Phase (230V) or 3-Phase (208/230/460V)
- Phase: Single-Phase/ 3-PHASE
- Air Delivery: 17.3 CFM at 175 PSI
- Pump Displacement: 23.0 CFM
- Maximum Operating Pressure: 175 PSI
- Compressor Type: Two-Stage Reciprocating
- Pump Model: Saylor-Beall 705
- Pump Lubrication: Splash Lubricated
- Pump Speed: 845 RPM at 175 PSI
- Tank Capacity: 80 Gallons
- Tank Configuration: Vertical
- Dimensions (L × W × H): 34” × 30” × 77”
-
Listed Shipping Weight: 612 lb
Option Splash Lubricated, Pressure Lubricated, Splash Lubricated Performance Package, Pressure Lubricated Performance Package, Splash Lubricated Refrigerated Dryer Package, Splash Lubricated Desiccant Dryer Package, Pressure Lubricated Refrigerated Dryer Package, Pressure Lubricated Desiccant Dryer Package
